The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Dec 4, 2014
1

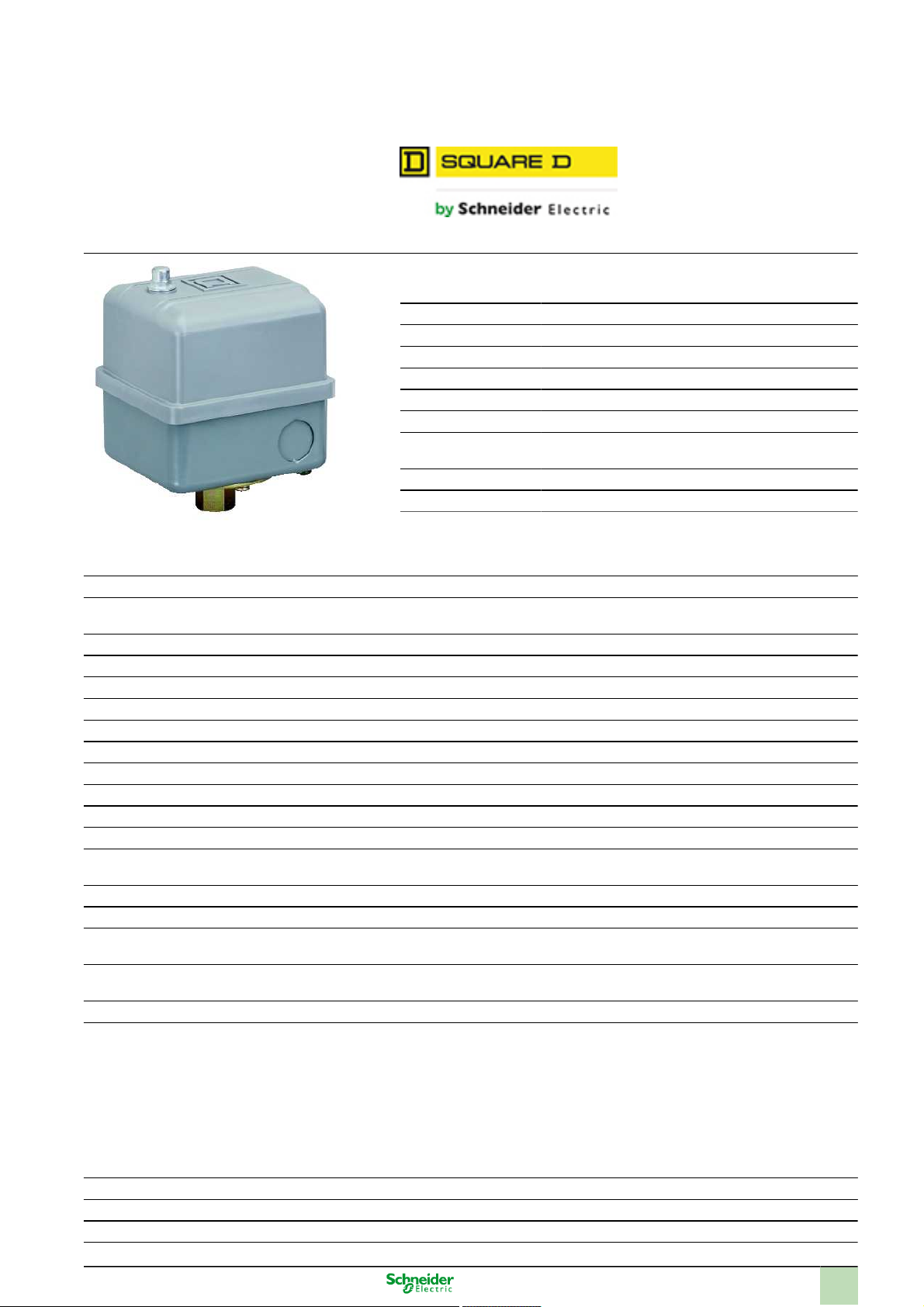

Product data sheet
Characteristics
9013GHG2J30E
pump or compressor switch 9013GH -
adjustable diff. - 80-100 psi
Product availability: Stock - Normally stocked in distribution facility
Main
Commercial Status Commercialised
Range of product Square D Pumptrol
Pressure sensor name 9013GH
Pressure sensor size 200 psi (40...170 psi)
Value of setting 80...100 psi
Electrical circuit type Power circuit
Product specific
application
Control electrically driven water pumps and air
compressors
Quantity per set 1
Type of packing Individual
Complementary
Pressure sensor type Electromechanical pressure switch
Controlled fluid Fresh water (-22...257 °F)
Air (-22...257 °F)
Adjustable range on rising pressure 65...200 psi
Approximate adjustable differential 20...40 psi
Destruction pressure 300 psi
Pressure actuator Diaphragm
Pressure switch type of operation Regulation between 2 thresholds
Scale type Adjustable differential
Setting Internal
Local display Without
Contacts type and composition 2 NC, snap action, DPST-DB, Form YY
Cable entry number 3 knock-outs for 1/2" conduit UL 508
Electrical connection Screw-clamp terminals, clamping capacity: 5.261 mm²
Screw-clamp terminals, clamping capacity: 10 AWG
Fluid connection type 0.25 inch NPSF internal conforming to UL 508
Short circuit protection 20 A by cartridge fuse, type gG
Materials in contact with fluid Nitrile (Buna-N) or equivalent rubber diaphragm
Zinc plated steel or equivalent flange
Material Noryl thermoplastic resin or equivalent cover
Polypropylene cover
Operating position Any position
Motor power kW 3.7 kW (5 hp) at 575 V AC, 3 phases
3.7 kW (5 hp) at 575 V AC, 1 phase
3.7 kW (5 hp) at 460 V AC, 3 phases
3.7 kW (5 hp) at 460 V AC, 1 phase
3.75 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 230 V DC
0.75 kW (1 hp) at 115 V DC
2.2 kW (3 hp) at 230 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
1.5 kW (2 hp) at 115 V AC, 1 phase
Electrical durability 100000 cycles at 10 cyc/mn
Mechanical durability 300000 cycles
Terminal block type 4 terminals
