FP6276
500kHz 6A High Efficiency Synchronous PWM Boost Converter
This datasheet contains new product information. Feeling Technology reserves the rights to modify the product specification without notice.
No liability is assumed as a result of the use of this product. No rights under any patent accompany the sales of the product.
Website: http://www.feeling-tech.com.tw Rev. 0.68
1/12
General Description
The FP6276 is a current mode synchronous boost DC-DC converter with PWM/PSM control. Its
PWM circuitry with built-in 40mΩ high side switch and 40mΩ low side switch make this regulator highly
power efficient. The internal compensation network also minimizes external component counts to only
6. An internal 0.6V voltage is connected to error amplifier the non-inverting input as precision reference
voltage. Built-in soft-start function can reduce the inrush current.
Features
Current mode with PWM/PSM control
Input voltage range: 2.4V~4.5V
Adjustable Output up to 5.3V
Shutdown current: <1uA
Oscillator frequency: 500KHz
Reference voltage: 0.6V +/-2%
Disconnect load during shutdown
Cycle-by-cycle current limit
Low R
DS
(on): 40mΩ for both high and low side.
Protection: OTP, SCP
Internal compensation
Internal soft-start: 7ms
Package: SOP-8L(EP)
Applications
Chargers
Handheld Devices
Portable Products
Power Bank

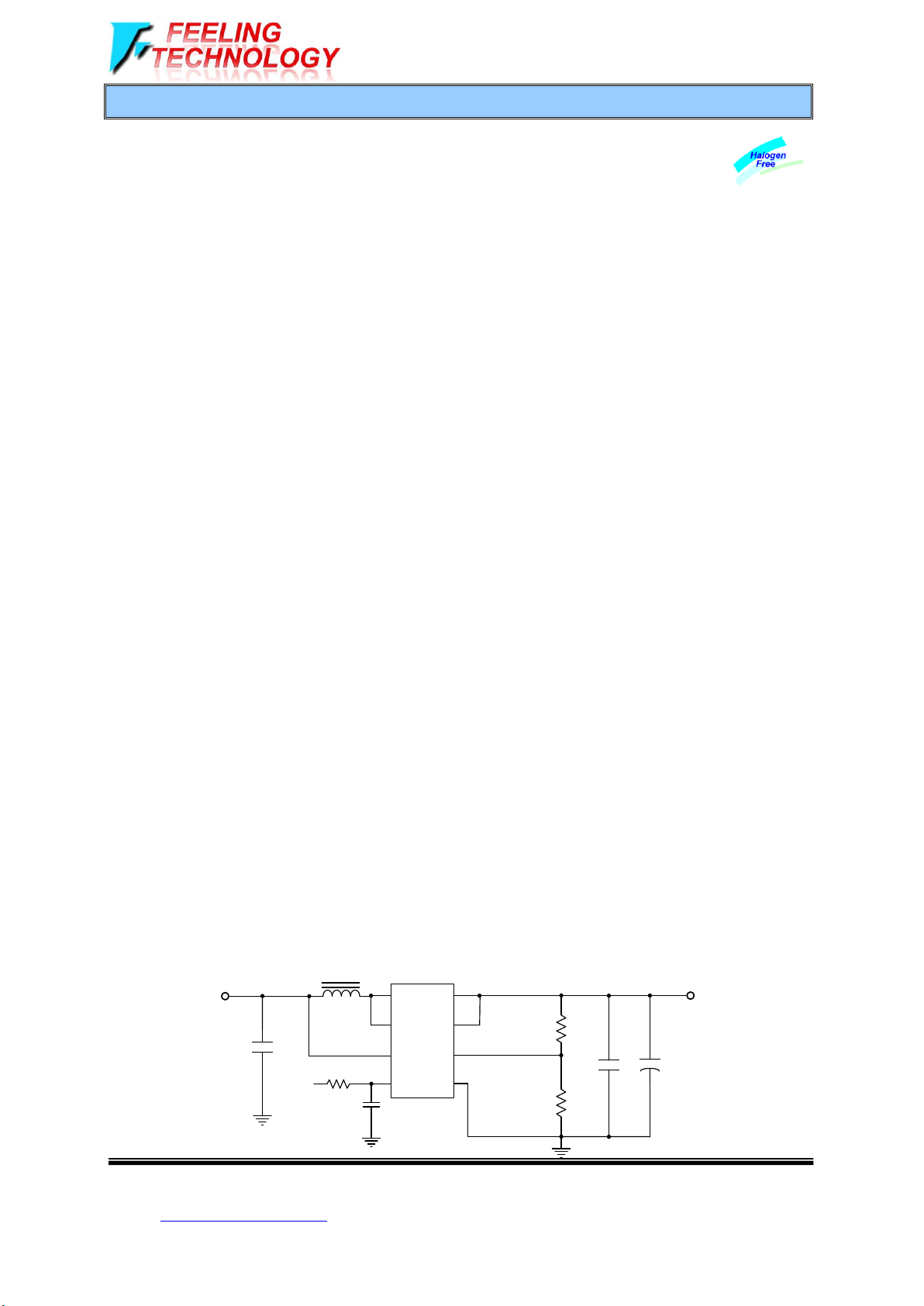

Typical Application Circuit
ON/OFF
VIN
SOP-8L(EP)
FP6276
VO
GNDEN
FB
LX
VIN
VO
LX
1
2
3
4
6
5
7
8
VOUT
