EMC Components
ACM series

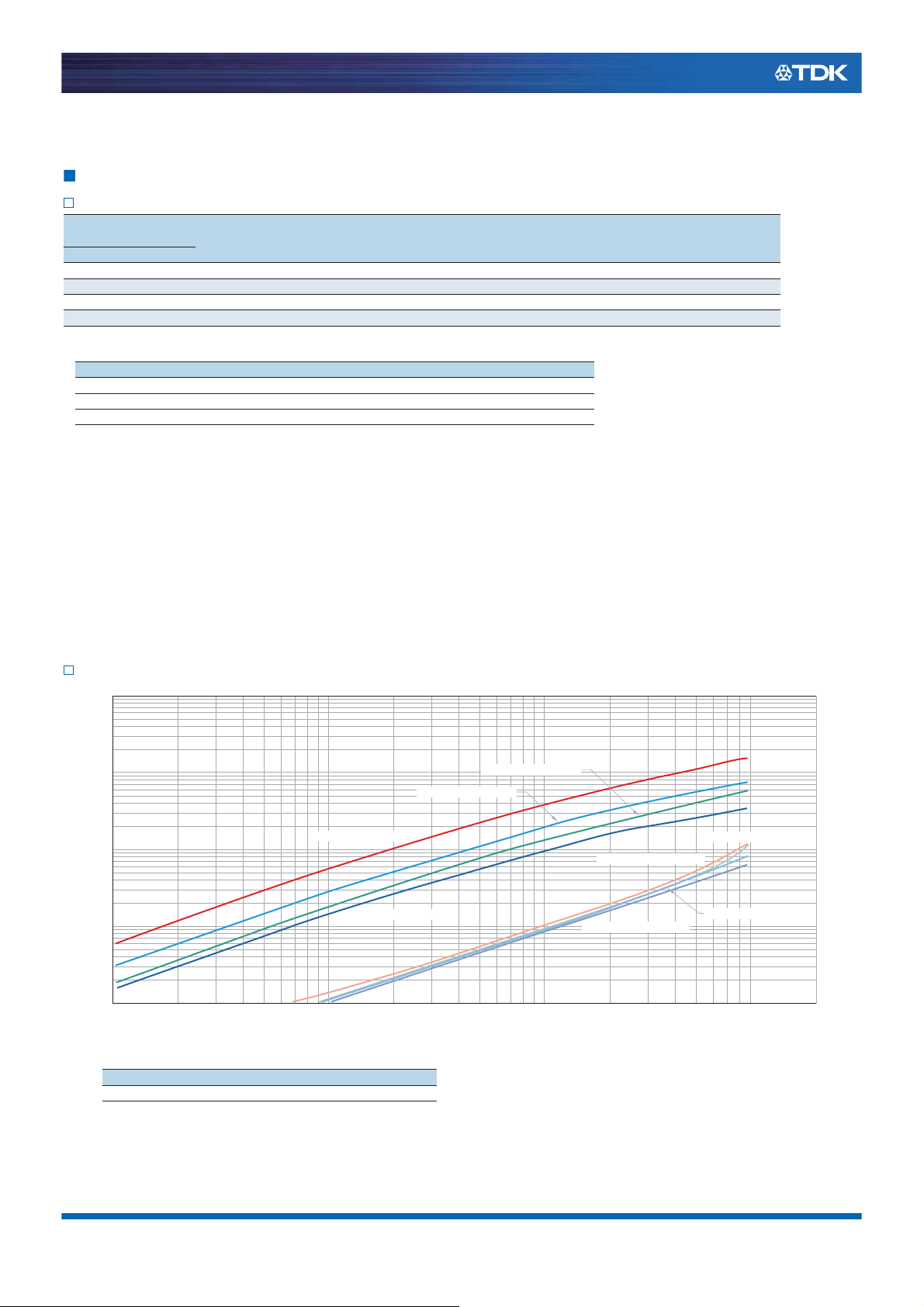

ACM2012 Type
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS SPECIFICATION TABLE
○ Measurement equipment
＊ Equivalent measurement equipment may be used.
IMPEDANCE VS. FREQUENCY CHARACTERISTICS
○ Measurement equipment
＊ Equivalent measurement equipment may be used.
Impedance
(: ) [100MHz］
DC resistance
(: )max.[per line]
Rated voltage
(V)max.
Rated current
(A)max.
Part No.
min. typ.
65 90 0.19 50 0.4 ACM2012-900-2P-T002
90 120 0.22 50 0.37 ACM2012-121-2P-T002
150 200 0.25 50 0.35 ACM2012-201-2P-T002
270 360 0.5 50 0.22 ACM2012-361-2P-T002
Measurement item Product No. Manufacturer
Common mode impedance 4991A Agilent Technologies
DC resistance 4338A Agilent Technologies
Insulation resistance 4339A Agilent Technologies
Product No. Manufacturer
4991A Agilent Technologies
1 10 100 1000
10000
1000
100
1
10
Frequency
(
MHz
)
Impedance
(
Ω
)
201 Common mode
900 Common mode
121 Common mode
361 Common mode
121 Differential mode
201 Differential mode
900 Differential mode
361 Differential mode
