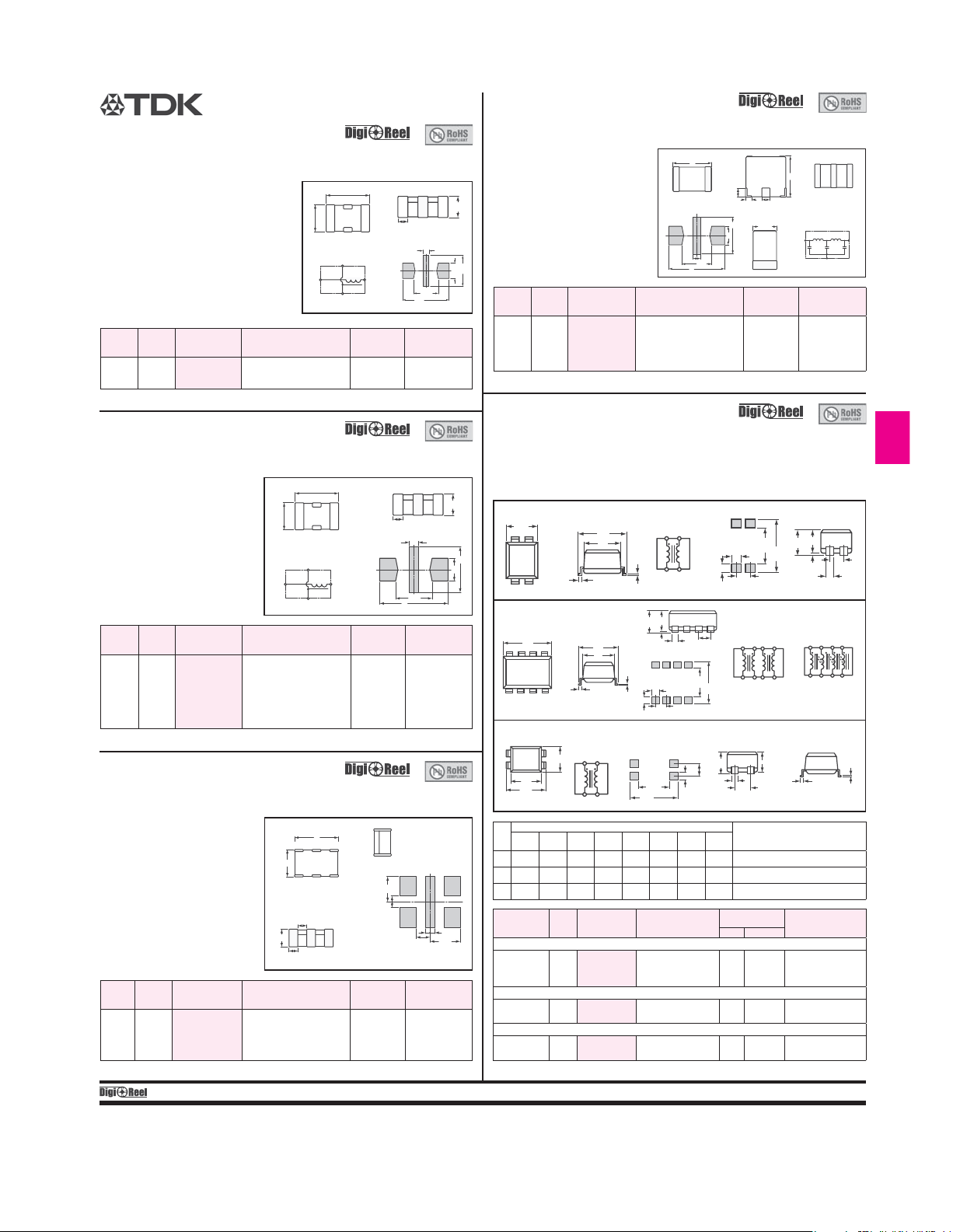

3-Terminal Filters for
Wide-Band / SMD
MEM2012P Series
Features:
• Multilayer chip EMC filter that is small and low-
profile due to the use of a π-type circuit • Entirely
monolithic structure results in high reliability
• Due to closed magnetic circuit architecture,
high-density installation becomes possible,
and crosstalk generation is prevented. • Steep
attenuation characteristic plot, highly effective
noise suppression • Covers a wide range of
frequencies • π-type circuit with 1 coil / 2 cap-
acitors construction
Applications:
• Computers • Computer peripherals • VCRs
• TVs • Car audio equipment • Printers • Game
machines
Operating Temperature Range: -40°C ~ 85°C
‡
For Tape and Reel part number, change 1-ND to 2-ND.
Cut-off
Frequency
(MHz)
I
Maximum
(A)
Digi-Key
Part No.
Cut Tape
Pricing
Tape and Reel
Pricing‡
4,000
TDK
Part No.11050
10 0.2 445-3362-1-ND .46 4.07 18.78 187.27/M MEM2012P10R0
25 0.2 445-3363-1-ND .46 4.07 18.78 187.27/M MEM2012P25R0
50 0.2 445-3364-1-ND .46 4.07 18.78 187.27/M MEM2012P50R0
75 0.2 445-3365-1-ND .46 4.07 18.78 187.27/M MEM2012P75R0
100 0.2 445-3366-1-ND .46 4.07 18.78 187.27/M MEM2012P101R
2
1.25
GND
GND
OUT/IN
IN/OUT
0.8
0.4
3
1.6
0.4
2
1
GND
GND
OUTIN
Dimensions in mm
®
3-Terminal Filters for
Wide-Band / SMD
MEM2012W Series
These SMD Type 3-terminal filters are used for
elimination of high frequency noise from signal
lines. Due to a higher cutoff frequency than earlier
SMD type 3-terminal filters and steep attenuation
characteristics, these filters are effective for
elimination of a high level of high frequency noise.
Features: • Small size • Entirely monolithic
architecture
Applications: • PCs • Liquid crystal panels
• Printers • Game machines • Cellular phones
• Digital video cameras
Operating Temperature Range: -40°C ~ 85°C
‡
For Tape and Reel part number, change 1-ND to 2-ND.
Cut-off
Frequency
(MHz)
I
Maximum
(A)
Digi-Key
Part No.
Cut Tape
Pricing
Tape and Reel
Pricing‡
1,000
TDK
Part No.11050
120 0.1 445-3372-1-ND .59 5.08 23.49 266.11 MEM2012W121R
150 0.1 445-3373-1-ND .59 5.08 23.49 — MEM2012W151R
180 0.1 445-3374-1-ND .59 5.08 23.49 266.11 MEM2012W181R
210 0.1 445-3375-1-ND .59 5.08 23.49 — MEM2012W211R
2
NC
NC
0.40.3
0.2
2
IN/
OUT
IN/
OUT
GND
1.25
3
1.6
0.4
2
1
IN/
OUT
IN/
OUT
GND
Dimensions in mm
Dimensions in mm
®
3-Terminal Filters for
Wide-Band / SMD
MEM2012TC Series
Features:
• Multilayer chip EMC filter utilizing a T-type
circuit • Entirely monolithic structure results in
high reliability • Due to closed magnetic circuit
architecture, high-density installation becomes
possible, and crosstalk generation is prevented
• Steep attenuation characteristic plot. Highly
effective noise suppression • Covers a wide range
of frequencies • Combines a bead inductor with a
through-type capacitor
Applications: • Computer and computer
peripherals • VCRs • TVs • Car audio equipment
• Printers • Game machines
Operating Temperature Range: -40°C ~ 85°C
‡
For Tape and Reel part number, change 1-ND to 2-ND.
Cap.
(pF)
±30%
I
Maximum
(A)
Digi-Key
Part No.
Cut Tape
Pricing
Tape and Reel
Pricing‡
4,000
TDK
Part No.11050
10 1 445-3367-1-ND .46 4.07 18.78 — MEM2012TC100
47 1 445-3369-1-ND .46 4.07 18.78 — MEM2012TC470
100 1 445-3370-1-ND .46 4.07 18.78 187.27/M MEM2012TC101
1
IN/
OUT
OUT
/
IN
2
GND
3
GND
5
NC
6
NC
4
2
1.25
0.2
0.4
0.8
0.2
0.6
1.3
1.1
0.25
Dimensions in mm
®
Common Mode Choke
Coils for Signal Line / SMD
ZJYS Series
Fig.
Dimensions - mm
TDK
Part No.
A
(Max.)
B
(Max.)
C
(Max.)
D
(Max.) E F
G
(Max.) H
1 5.5 6.86 4.57 5.08 1.3 2.54 9 0.25 ZJYS51R5-2P, -2PB, -2PL
2 10.5 6.86 4.57 5.08 1.3 2.54 9 0.25 ZJYS51R5-4P, -M4PA
3 6 7.1 4.5 5 1.3 2.54 9 0.25 ZJYS81R5-2PL25-G01, -2PL51-G01
Features: • A common mode filter for distortion-free noise removal from transmitted signals. Optimized for transmission
of high quality signals • Best filter for countering the common mode noise resulting from data signal processing by PCs,
phone equipment, etc • Due to a maximum current tolerance of 5A, can also be used to counter power line noise • The
ZJYS81R5-2PL is a high inductance common mode filter designed to use with a CAN-BUS
Fig. 1 — ZJYS51R5-2P, -2PB, -2PL
Fig. 2 — ZJYS51R5-4P, -M4PA
Fig. 3 — ZJYS81R5-2PL25-G01, -2PL51-G01
L1
43
12
L2
F
0.1
E
D
C
1.8
1.6
2.54
6.7
9.9
B
G
0.6
H
4
A
3
12
876
A
5
1
432
1.8
1.6
2.54
6.7
9.9
E
0.1
D
C
F
B
G
0.6
H
L1
87
1234
L2 L3
65
L4
ZJYS51R5-4P
ZJYS51R5-M4PA
L1
87
1234
L2 L3
65
L4
2
B
G
A
1
3
4
0.6
H
F
C
E
D
L1
43
12
L2
1.8
6.7
2.54
9.9
Minimum
Impedance
Ω (MHz)
Rated
Current
I (A)
Digi-Key
Part No.
Cut Tape
Price Each Tape and Reel‡
TDK
Part No.1 10 50 Qty. Pricing
Fig. 1 — 50V, Operating Temperature -25 °C ~ 85 °C
200 (20 ~ 300) 2 445-2219-1-ND 1.84 1.61 1.49 1,500 740.38/M ZJYS51R5-2PT-01
200 (20 ~ 300) 2 445-2220-1-ND 2.14 1.86 1.71 1,500 854.28/M ZJYS51R5-2PBT-01
200 (20 ~ 300) 2 445-2221-1-ND 2.00 1.73 1.60 1,500 797.32/M ZJYS51R5-2PLT-01
Fig. 2 — 50V, Operating Temperature -25 °C ~ 85 °C
200 (20 ~ 300) 2 445-2224-1-ND 3.13 2.72 2.51 1,000 1252.95 ZJYS51R5-4PT-01
200 (20 ~ 300) 0.5 445-2225-1-ND 3.13 2.72 2.51 1,000 1252.95 ZJYS51R5-M4PAT-01
Fig. 3 — 80V, Operating Temperature -40 °C ~ 125 °C
600 (10 ~ 100) 0.5 445-2222-1-ND 2.14 1.86 1.71 1,500 854.28/M ZJYS81R5-2PL25T-G01
1000 (10 ~ 100) 0.5 445-2223-1-ND 2.14 1.86 1.71 1,500 854.28/M ZJYS81R5-2PL51T-G01
®
Most SMT cutdown parts are available on a Digi-Reel
®
. For Digi-Reel part number, change 1-ND to 6-ND or CT-ND to DKR-ND. See Digi-Key
®
Services on page 2 for additional information.
®
3-Terminal Filters for
Signal Line / SMD
MEM2012D Series
Cut-off
Frequency
(MHz)
I
Maximum
(A)
Digi-Key
Part No.
Cut Tape
Pricing
Tape and Reel
Pricing‡
TDK
Part No.1 10 50 4,000
200 0.2 445-3353-1-ND .46 4.07 18.78 187.27/M MEM2012D201R
300 0.2 445-3354-1-ND .46 4.07 18.78 187.27/M MEM2012D301R
This chip type EMC filter eliminates the noise component from
a communication line. This noise component can be elim inated
by inserting these products in series with the com munication
line. In comparison to earlier multilayer chip EMC filters, signal
wave-form distortion is low after the sig nal has passed through
the filter. Therefore this filter can be used for high speed pulse
signal circuits and wide band an alog RGB circuits.
Features: • Small size • Steep attenuation characteristic
• Low dis tor tion of signal after passing through filter • Capable
of re flow soldering
Applications: • PCs • CRTs • LC display panels • Printers
• Game ma chines • DVD equipment
Operating Temperature Range: -40°C ~ 85°C
‡
For Tape and Reel part number, change 1-ND to 2-ND.
2
1.25
GND
GND
OUTIN
0.85
0.4
3
1.6
0.4
2
1
GND
GND
OUTIN
Dimensions in mm
®
