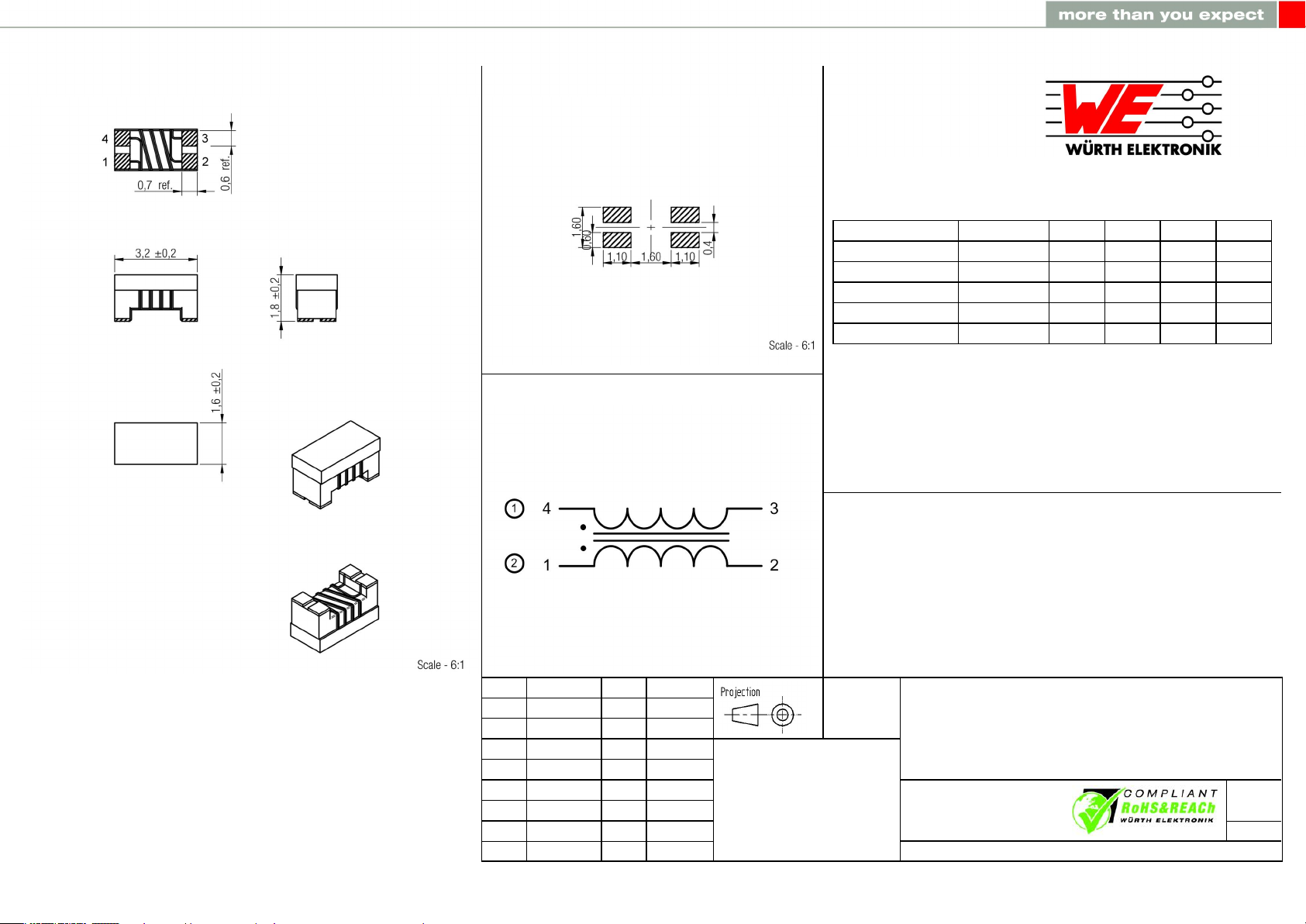

DESCRIPTION
WE-CNSW SMD Common Mode Line Filter
Order.- No.
744232090
SIZE
A4
Size: 1206
A Dimensions: [mm] B Recommended land pattern: [mm]
C Schematic:
D Electrical Properties:
Properties
Impedance
Rated current
DC Resistance
Insulation test voltage
Rated voltage
Test conditions
100 MHz
∆T = 40 K
Z
I
R
R
DC
U
T
U
R
Value
90
370
0.3
125
50
Unit
Ω
mA
Ω
V (AC)
V
Tol.
±25%
max.
max.
max.
E General information:
It is recommended that the temperature of the part does not exceed 125°C
under worst case operating conditions.
•Ambient temperature: -40°C to +85°C (refering to I
R
)
•Operating temperature: -40°C to +125°C
•Storage temperature (on tape & reel): -20°C to +40°C; 75% RH max.
•Test conditions of Electrical Properties: 20°C, 33% RH
if not specified differently
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use.
Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before
the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
