006-02 / 20091222 / e9713_acm.fm
• All specifications are subject to change without notice.
Common Mode Filters(SMD)
For Power Line
ACM Series ACM3225, 4532, 7060, 9070, 1211, 1513 Types
FEATURES
• A chip-type common mode filter for large current applications.
Common mode impedance surpasses 300 to 1000
Ω
at 100MHz.
Noise is greatly suppressed.
• Capable of handling the highest current (up to 10A) of any chip-
type common mode filter.
• Height and size have been considered, resulting in a compact
and light-weight choke coil. Applicable for the miniaturization
required to reduce the size and weight of portable equipment.
• The products contain no lead and also support lead-free
soldering.
• This product does not contain regulated substances that are
slated to be included in RoHS.
APPLICATIONS
Used for power line noise suppression for any electronic devices.
Used to counter adapter/battery line noise for relatively large elec-
tronic devices such as notebook PCs, stand-alone word proces-
sors, etc.
PRODUCT IDENTIFICATION
(1) Series
(2) Dimensions L×W
7060: 7.0×6.0mm
(3) Impedance[at 100MHz]
701: 700Ω
(4) Number of lines
2PL: 2-line
(5) Packaging style
T: ø180mm reel taping
TL: ø330mm reel taping
(6) TDK internal code
TEMPERATURE RANGE

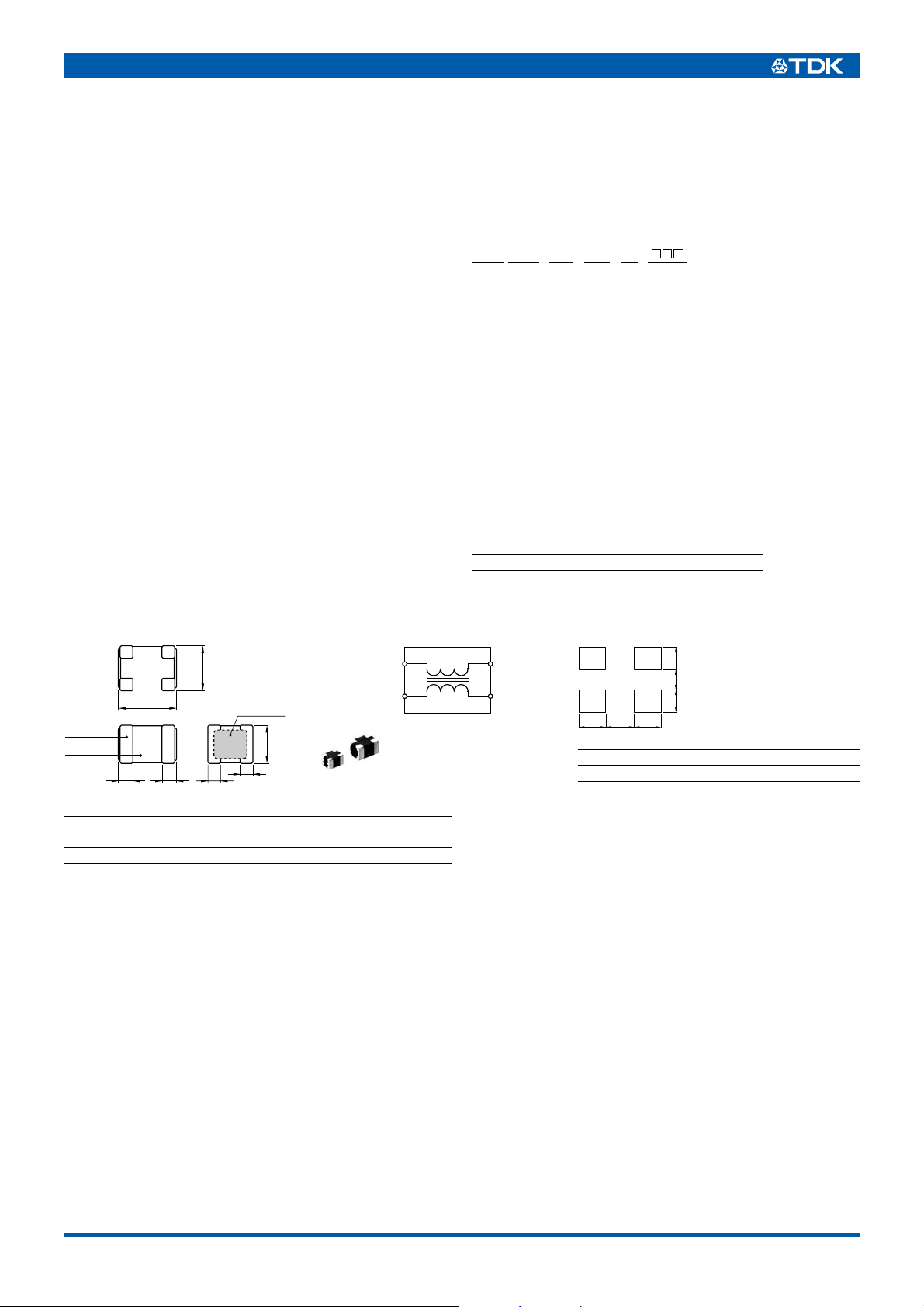

SHAPES AND DIMENSIONS/CIRCUIT DIAGRAM/RECOMMENDED PC BOARD PATTERN(REFLOW SOLDERING)
ACM3225, 4532 TYPES
Dimensions in mm
Conformity to RoHS Directive
ACM 7060 - 701 - 2PL - TL
(1) (2) (3) (4) (5) (6)
Operating –25 to +85°C
Ty pe L W T D 1 D 2
ACM3225 3.2±0.2 2.5±0.2 2.3 max. 0.7 0.65
ACM4532 4.5±0.2 3.2±0.2 3.0 max. 1 1
Ferrite
D1 D1
Terminal
electrode
L
W
2
1
3
4
T
Insulation
resin
D2
D2
1
2
4
3
dcc
baa
Dimensions in mm
Type abcd
ACM3225 1.5 1.6 1.4 1.1
ACM4532 1.8 2.3 1.75 1.1
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
