1.6 V, Micropower 12-/10-/8-Bit ADCs

AD7466/AD7467/AD7468

Rev. C

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781.329.4700 www.analog.com

FEATURES

Specified for V

of 1.6 V to 3.6 V

Low power:

0.62 mW typical at 100 kSPS with 3 V supplies

0.48 mW typical at 50 kSPS with 3.6 V supplies

0.12 mW typical at 100 kSPS with 1.6 V supplies

Fast throughput rate: 200 kSPS

Wide input bandwidth:

71 dB SNR at 30 kHz input frequency

Flexible power/serial clock speed management

No pipeline delays

High speed serial interface:

SPI/QSPI™/MICROWIRE™/DSP compatible

Automatic power-down

Power-down mode: 8 nA typical

6-lead SOT-23 package

8-lead MSOP package

APPLICATIONS

Battery-powered systems

Medical instruments

Remote data acquisition

Isolated data acquisition

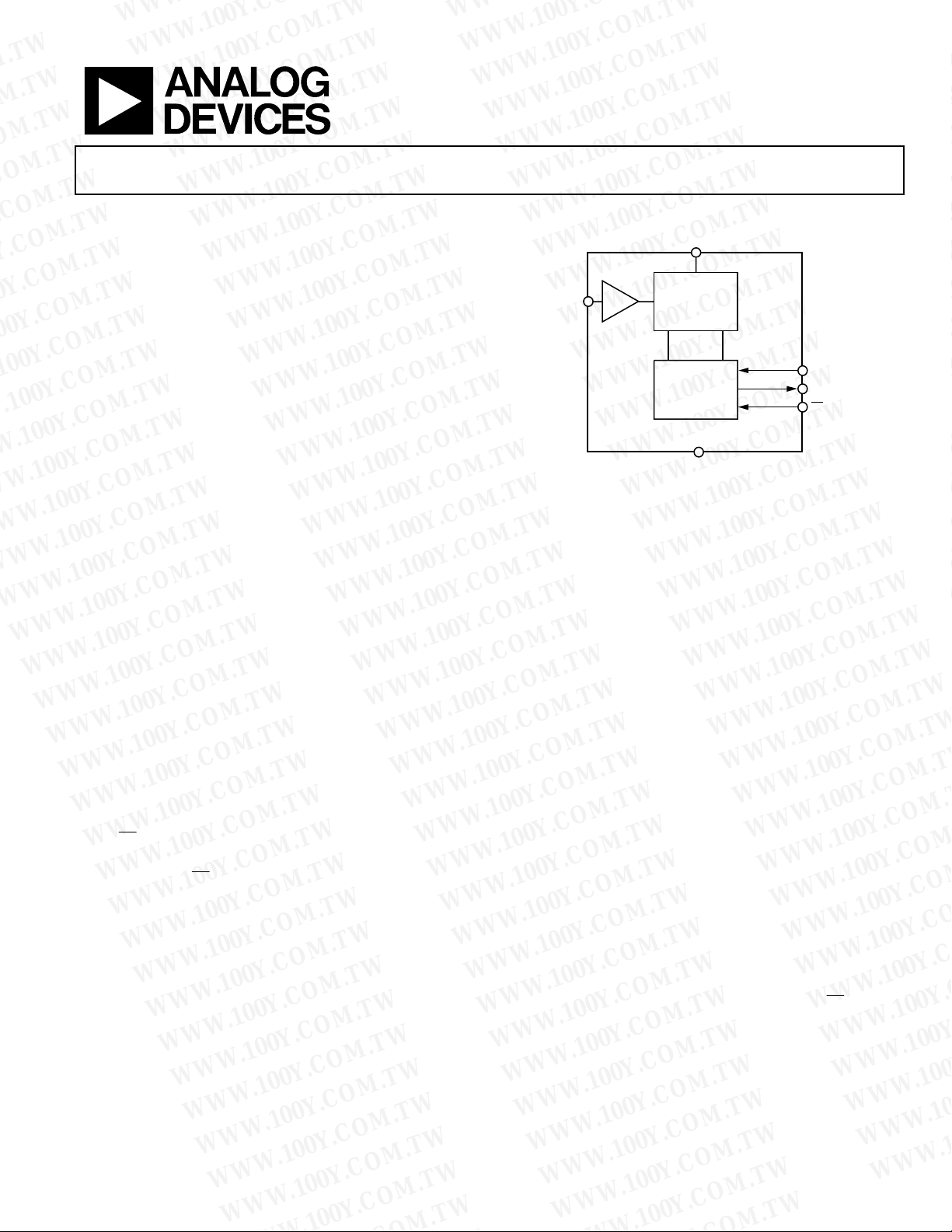

FUNCTIONAL BLOCK DIAGRAM

AD7466/AD7467/AD7468

12-/10-/8-BIT

SUCCESSIVE

APPROXIMATION

ADC

CONTROL

LOGIC

GND

SCLK

SDATA

T/H

02643-001

Figure 1.

GENERAL DESCRIPTION

The AD7466/AD7467/AD7468

are 12-/10-/8-bit, high speed,

low power, successive approximation analog-to-digital

converters (ADCs), respectively. The parts operate from a single

1.6 V to 3.6 V power supply and feature throughput rates up to

200 kSPS with low power dissipation. The parts contain a low

noise, wide bandwidth track-and-hold amplifier, which can

handle input frequencies in excess of 3 MHz.

The conversion process and data acquisition are controlled

usin

and the serial clock, allowing the devices to interface

with microprocessors or DSPs. The input signal is sampled on

the falling edge of

, and the conversion is also initiated at this

point. There are no pipeline delays associated with the part.

The reference for the part is taken internally from V

. This

allows the widest dynamic input range to the ADC. Thus, the

analog input range for the part is 0 V to V

. The conversion

rate is determined by the SCLK.

Protected by U.S. Patent No. 6,681,332.

PRODUCT HIGHLIGHTS

1. Specified for supply voltages of 1.6 V to 3.6 V.

2. 12-, 10-, an

d 8-bit ADCs in SOT-23 and MSOP packages.

3. H

igh throughput rate with low power consumption.

Power consumption in normal mode of operation at

100 kSPS and 3 V is 0.9 mW maximum.

4. Flexi

ble power/serial clock speed management.

The conversion rate is determined by the serial clock,

allowing the conversion time to be reduced through

increases in the serial clock speed. Automatic power-down

after conversion allows the average power consumption to

be reduced when in power-down. Current consumption is

0.1 μA maximum and 8 nA typically when in power-down.

5. Refer

ence derived from the power supply.

6. No

pipeline delay.

7. T

he part features a standard successive approximation

ADC with accurate control of conversions via a

input.
