EVAL-AD5325DBZ User Guide
UG-976
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for the AD5325 12-Bit, Quad Channel, Voltage Output
Digital-to-Analog Converter (DAC)
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. A | Page 1 of 13
FEATURES
Full featured evaluation board in conjunction with nanoDAC
motherboard (EVAL-MBnanoDAC-SDZ)
On-board references
Various link options
PC control in conjunction with Analog Devices, Inc., system
demonstration platform (SDP)
PACKAGE CONTENTS
EVAL-AD5325DBZ evaluation board
EVAL-MBnanoDAC-SDZ motherboard
SOFTWARE REQUIRED
EVAL-AD5325DBZ evaluation software
HARDWARE REQUIRED
EVAL-SDP-CB1Z board (SDP-B controller board), must be
purchased separately
GENERAL DESCRIPTION
This user guide details the operation of the evaluation board for
the AD5325 quad channel, voltage output DAC.
The evaluation board is designed to help users quickly
prototype new AD5325 circuits and reduce design time. The
AD5325 operates from a single 2.5 V to 5.5 V supply.
Full details are available in the AD5325 data sheet, which must
be consulted in conjunction with this user guide when using the
evaluation board.
The evaluation board interfaces to the USB port of a PC via the
SDP-B board (EVA L -SDP-CB1Z). Software is supplied with the
evaluation board to allow the user to program the AD5325.
This evaluation board requires the SDP-B board (E VAL -SDP-
CB1Z) board, which is available for order on the Analog
Devices website at www.analog.com.

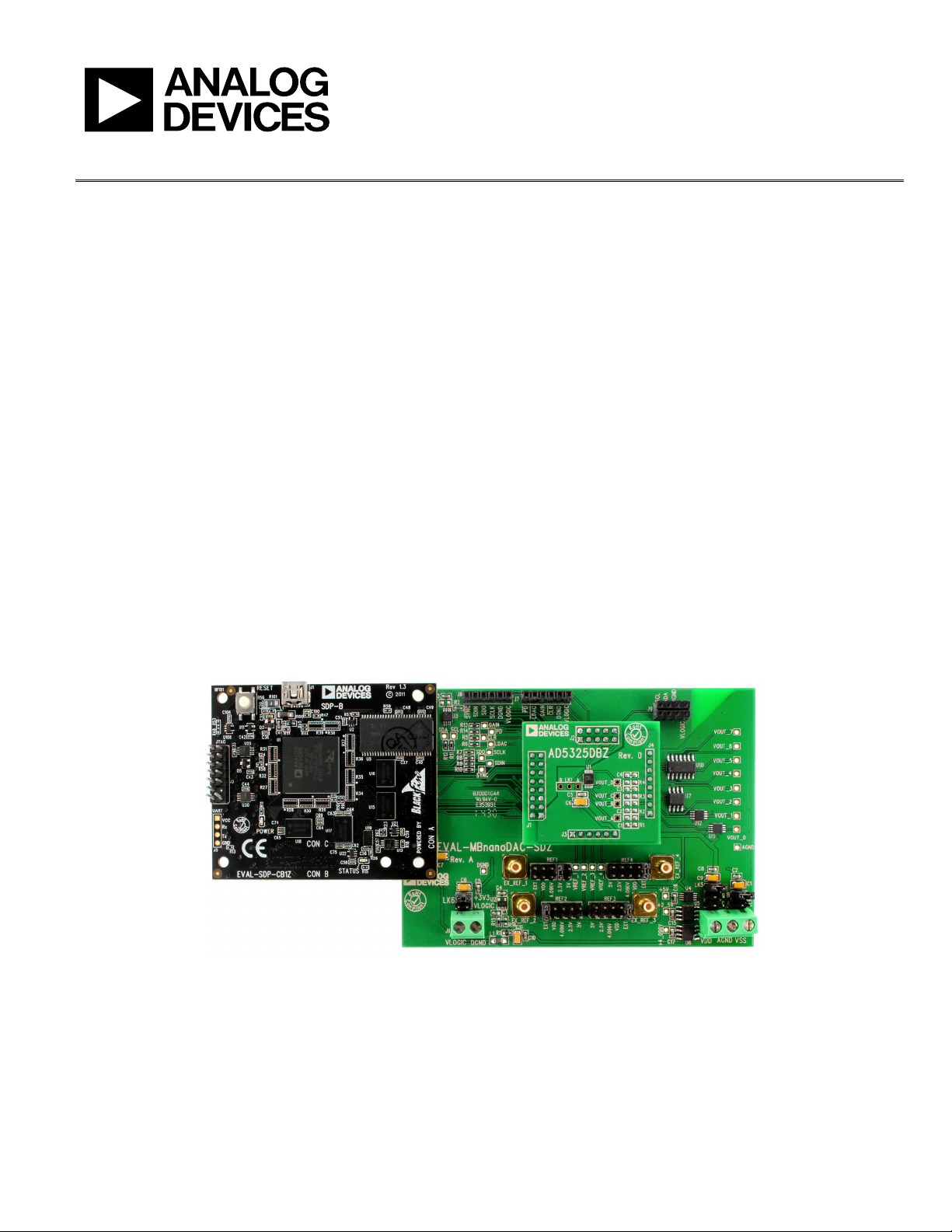

EVAL-AD5325DBZ, EVAL-MBnanoDAC-SDZ, AND SDP-B BOARDS
14455-001
Figure 1.
