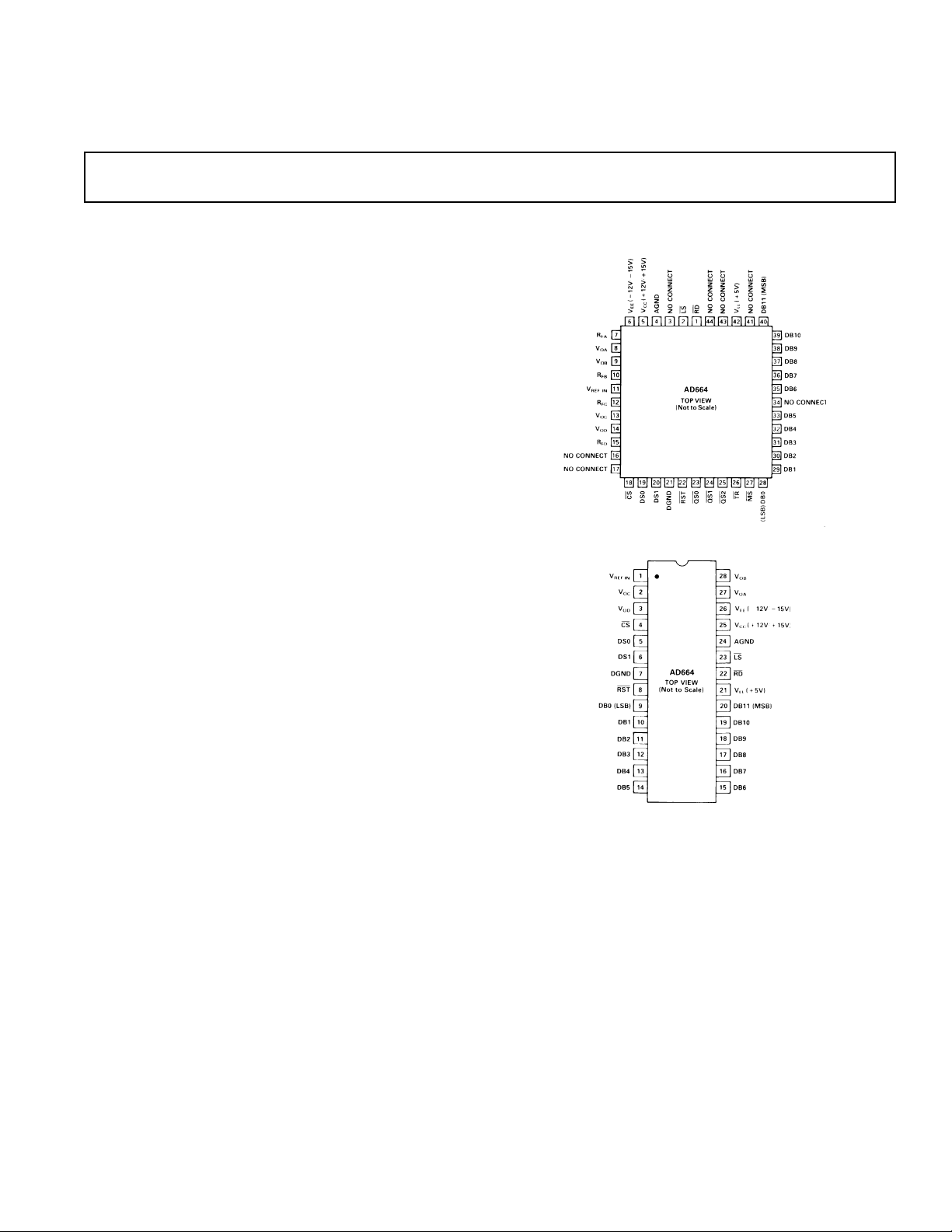

PIN CONFIGURATIONS
44-Pin Package
28-Pin DIP Package
REV. C
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties
which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Analog Devices.
a
Monolithic
12-Bit Quad DAC
AD664
FEATURES
Four Complete Voltage Output DACs
Data Register Readback Feature
“Reset to Zero” Override
Multiplying Operation
Double-Buffered Latches
Surface Mount and DIP Packages
MIL-STD-883 Compliant Versions Available
APPLICATIONS
Automatic Test Equipment
Robotics
Process Control
Disk Drives
Instrumentation
Avionics
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 617/329-4700 Fax: 617/326-8703
PRODUCT DESCRIPTION
The AD664 is four complete 12-bit, voltage-output DACs on
one monolithic IC chip. Each DAC has a double-buffered input
latch structure and a data readback function. All DAC read and
write operations occur through a single microprocessor-compatible
I/O port.
The I/O port accommodates 4-, 8- or 12-bit parallel words al-
lowing simple interfacing with a wide variety of microprocessors.
A reset to zero control pin is provided to allow a user to simulta-
neously reset all DAC outputs to zero, regardless of the contents
of the input latch. Any one or all of the DACs may be placed in
a transparent mode allowing immediate response by the outputs
to the input data.
The analog portion of the AD664 consists of four DAC cells,
four output amplifiers, a control amplifier and switches. Each
DAC cell is an inverting R-2R type. The output current from
each DAC is switched to the on-board application resistors and
output amplifier. The output range of each DAC cell is pro-
grammed through the digital I/O port and may be set to unipo-
lar or bipolar range, with a gain of one or two times the reference
voltage. All DACs are operated from a single external reference.
The functional completeness of the AD664 results from the
combination of Analog Devices’ BiMOS II process, laser-trimmed
thin-film resistors and double-level metal interconnects.
PRODUCT HIGHLIGHTS
1. The AD664 provides four voltage-output DACs on one chip
offering the highest density 12-bit D/A function available.
2. The output range of each DAC is fully and independently
programmable.
3. Readback capability allows verification of contents of the in-
ternal data registers.
4. The asynchronous RESET control returns all D/A outputs
to zero volts.
5. DAC-to-DAC matching performance is specified and tested.
6. Linearity error is specified to be 1/2 LSB at room tempera-
ture and 3/4 LSB maximum for the K, B and T grades.
7. DAC performance is guaranteed to be monotonic over the
full operating temperature range.
8. Readback buffers have tristate outputs.
9. Multiplying-mode operation allows use with fixed or vari-
able, positive or negative external references.
10. The AD664 is available in versions compliant with MIL-
STD-883. Refer to the Analog Devices Military Products
Databook or current AD664/883B data sheet for detailed
specifications.
