Evaluation Board User Guide
UG-261
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Boards for the AD62x Series and the AD822x Series
Instrumentation Amplifiers
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. C | Page 1 of 8
FEATURES
3 generic, easy-to-use evaluation boards
Shipped with an assortment of Analog Devices, Inc., in-amps
Solder in the in-amp to be tested
Test pins already populated
Decoupling capacitors already populated
EVAL-INAMP-62RZ board
Compatible with AD620, AD621, AD622, AD623, AD627,
AD8223, and AD8225 in SOIC or PDIP
EVAL-INAMP-82RZ board
Compatible with AD8221, AD8226, AD8227, AD8228,
AD8229, AD8421, AD8428, and AD8429 in SOIC package
EVAL-INAMP-82RMZ board
Compatible with AD8220, AD8221, AD8226, AD8227,
AD8228, AD8236, and AD8421 in MSOP package

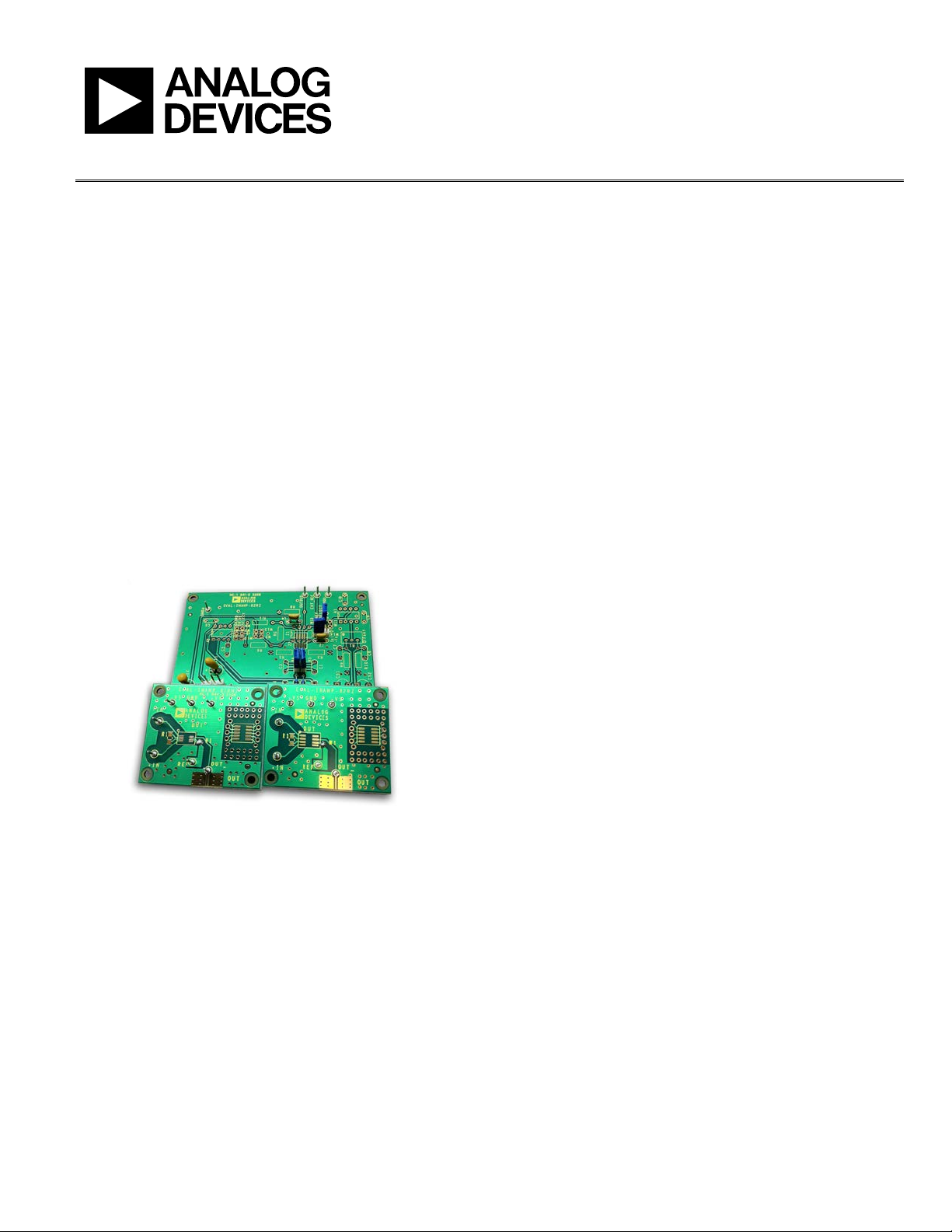

09753-001
Figure 1.
GENERAL DESCRIPTION
This user guide describes three generic evaluation boards that
can be used to evaluate many of Analog Devices instrumentation
amplifiers. For information on the performance of a specific
instrumentation amplifier, see the data sheet for that
instrumentation amplifier.
EVAL-INAMP-62RZ (SOIC or PDIP)
The EVAL-INAMP-62RZ is designed for evaluation of
instrumentation amplifiers in the legacy pinout. This board
can be used to evaluate the AD620, AD621, AD622, AD623,
AD627, AD8223, and AD8225 instrumentation amplifiers. In
addition to the basic in-amp connection, circuit options enable
the user to adjust the offset voltage, apply an output reference,
or provide shield drivers with user-supplied components. The
board is shipped with an assortment of instrumentation amplifier
ICs in the legacy SOIC pinout, typically AD620, AD621, AD622,
AD623, AD8223, and AD8225. The board also has an alternative
footprint for a through-hole, 8-lead PD I P.
EVAL-INAMP-82RZ (SOIC)
The EVAL-INAMP-82RZ is designed for evaluation of
instrumentation amplifiers in the high performance pinout.
This board can be used to evaluate the AD8221, AD8226,
AD8227, AD8228, AD8229, AD8421, AD8428, and AD8429
in SOIC packages. The board is shipped with an assortment of
instrumentation amplifier ICs in the high performance SOIC
pinout, typically AD8221, AD8226, AD8421, AD8428, and
AD8429. The evaluation board is arranged so that users can
easily solder on the gain resistor. The in-amp reference pin can
be connected to ground through a solder short or connected to
the user’s source through the test pin. A small prototyping area
allows interfacing to another part in an SOIC package.
Users can add their own SMA or SMB connector to interface
the evaluation board with complementary tools, such as an
analog-to-digital converter (ADC) evaluation board, available
from Analog Devices.
EVAL-INAMP-82RMZ (MSOP)
The EVAL-INAMP-82RMZ board is exactly the same as the
EVAL-INAMP-82RZ board, except that is designed for the
MSOP pinout. This board can be used to evaluate the AD8220,
AD8221, AD8226, AD8227, AD8228, AD8236, and AD8421
in
MSOP packages. The EVAL-INAMP-82RMZ board ships with
an assortment of in-amp ICs in the high performance MSOP
pinout, typically AD8220, AD8221, AD8226, AD8228, and
AD8421.
