AD828
Dual, Low Power
Video Op Amp
FEATURES
Excellent Video Performance
Differential Gain and Phase Error of 0.01% and 0.05
High Speed
130 MHz 3 dB Bandwidth (G = +2)
450 V/s Slew Rate
80 ns Settling Time to 0.01%
Low Power
15 mA Max Power Supply Current
High Output Drive Capability
50 mA Minimum Output Current per Amplifier
Ideal for Driving Back Terminated Cables
Flexible Power Supply
Specified for +5 V, 5 V, and 15 V Operation
3.2 V Min Output Swing into a 150 Load
(V
S
= 5 V)
Excellent DC Performance
2.0 mV Input Offset Voltage
Available in 8-Lead SOIC and 8-Lead Plastic Mini-DIP

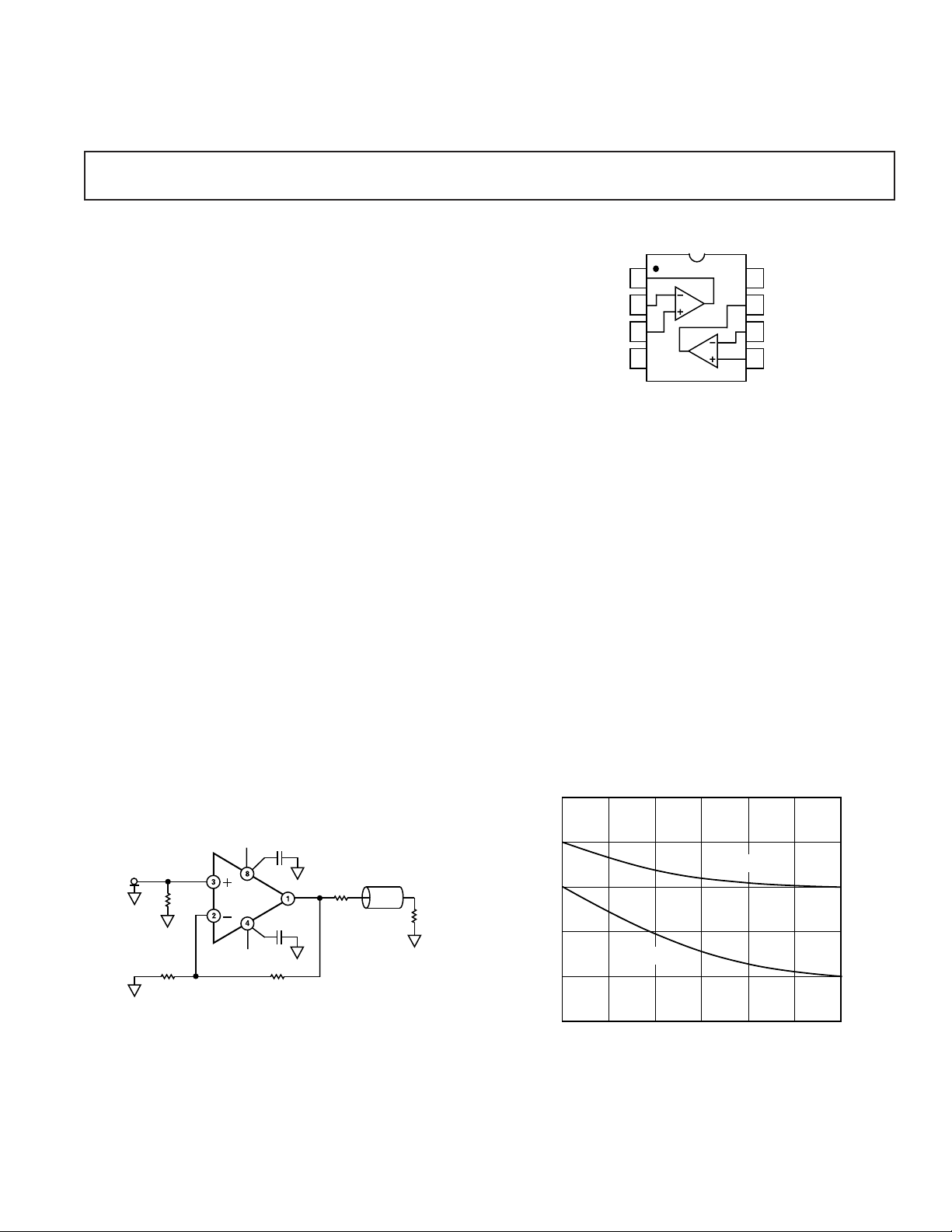

FUNCTIONAL BLOCK DIAGRAM
1
2
3
4
8
7
6
5
AD828
V+
OUT2
–IN2
+IN2
OUT1
–IN1
+IN1
V–
GENERAL DESCRIPTION
The AD828 is a low cost, dual video op amp optimized for use
in video applications that require gains of +2 or greater and
high output drive capability, such as cable driving. Due to its
low power and single-supply functionality, along with excellent
differential gain and phase errors, the AD828 is ideal for power-
sensitive applications such as video cameras and professional
video equipment.
With video specs like 0.1 dB flatness to 40 MHz and low
differential gain and phase errors of 0.01% and 0.05°, along
with 50 mA of output current per amplifier, the AD828 is an
excellent choice for any video application. The 130 MHz gain
bandwidth and 450 V/µs slew rate make the AD828 useful in
many high speed applications, including video monitors, CATV,
color copiers, image scanners, and fax machines.
1/2
AD828
0.1F
0.1F
+V
–V
R
BT
75
75
R
T
75
1k
R
T
75
1k
V
IN
Figure 1. Video Line Driver
The AD828 is fully specified for operation with a single 5 V
power supply and with dual supplies from ±5 V to ±15 V. This
power supply flexibility, coupled with a very low supply current
of 15 mA and excellent ac characteristics under all power supply
conditions, make the AD828 the ideal choice for many demand-
ing yet power-sensitive applications.
The AD828 is a voltage feedback op amp that excels as a gain
stage (gains > +2) or active filter in high speed and video systems
and achieves a settling time of 45 ns to 0.1%, with a low input
offset voltage of 2 mV max.
The AD828 is available in low cost, small 8-lead plastic mini-DIP
and SOIC packages.
0.04
15
0.07
0.05
0.06
510
0.03
0.01
0.02
SUPPLY VOLTAGE – V
DIFFERENTIAL PHASE – Degrees
DIFFERENTIAL GAIN – Percent
DIFF GAIN
DIFF PHASE
Figure 2. Differential Phase vs. Supply Voltage
