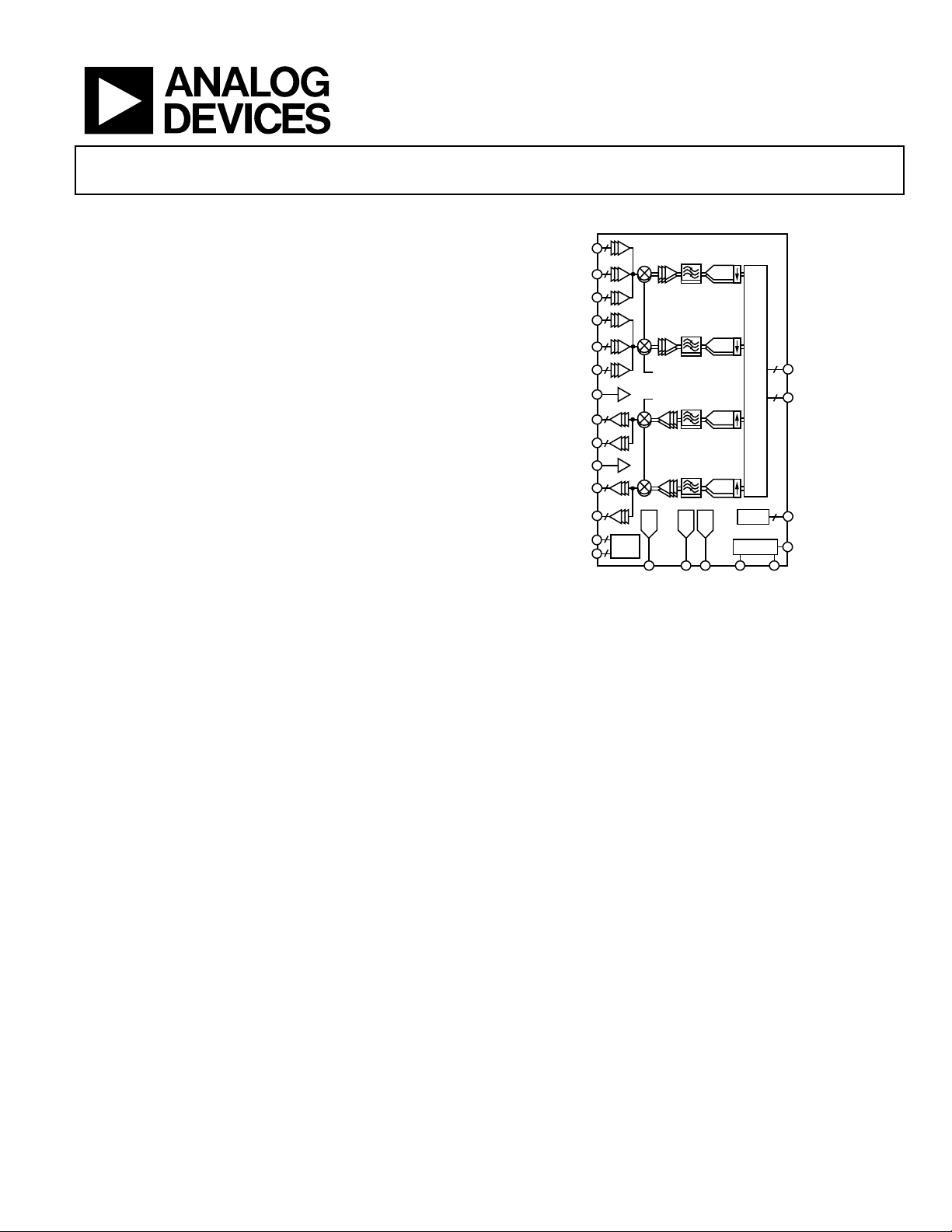

RF Agile Transceiver
Data Sheet
AD9361
Rev. SpC Document Feedback
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 ©2012–2013 Analog Devices, Inc. All rights reserved.
Technical Support www.analog.com
FEATURES
RF 2 × 2 transceiver with integrated 12-bit DACs and ADCs
Band: 70 MHz to 6.0 GHz
Supports TDD and FDD operation
Tunable channel BW: <200 kHz to 56 MHz
Dual receivers: 6 differential or 12 single-ended inputs
Superior receiver sensitivity with a noise figure < 2.5 dB
RX gain control
Real-time monitor and control signals for manual gain
Independent automatic gain control
Dual transmitters: 4 differential outputs
Highly linear broadband transmitter
TX EVM: ≤−40 dB
TX noise: ≤−157 dBm/Hz noise floor
TX monitor: ≥66 dB dynamic range with 1 dB accuracy
Integrated fractional-N synthesizers
2.5 Hz maximum local oscillator (LO) step size
Multichip synchronization
CMOS/LVDS digital interface
APPLICATIONS
Point to point communication systems
Femtocell/picocell/microcell base stations
General-purpose radio systems
GENERAL DESCRIPTION
The AD9361 is a high performance, highly integrated RF Agile
Transceiver™ designed for use in 3G and 4G base station applica-
tions. Its programmability and wideband capability make it
ideal for a broad range of transceiver applications. The device
combines an RF front end with a flexible mixed-signal baseband
section and integrated frequency synthesizers, simplifying
design-in by providing a configurable digital interface to a
processor. The AD9361 operates in the 70 MHz to 6.0 GHz
range, covering most licensed and unlicensed bands. Channel
bandwidths from less than 200 kHz to 56 MHz are supported.
The two independent direct conversion receivers have state-of-
the-art noise figure and linearity. Each receive (RX) subsystem
includes independent automatic gain control (AGC), dc offset
correction, quadrature correction, and digital filtering, thereby
eliminating the need for these functions in the digital baseband.
The AD9361 also has flexible manual gain modes that can be
externally controlled. Two high dynamic range ADCs per channel
digitize the received I and Q signals and pass them through con-
FUNCTIONAL BLOCK DIAGRAM
Figure 1.
figurable decimation filters and 128-tap FIR filters to produce
a 12-bit output signal at the appropriate sample rate.
The transmitters use a direct conversion architecture that
achieves high modulation accuracy with ultralow noise. This
transmitter design produces a best in class TX EVM of <−40 dB,
allowing significant system margin for the external PA selection.
The on-board transmit (TX) power monitor can be used as a
power detector, enabling highly accurate TX power measurements.
The fully integrated phase-locked loops (PLLs) provide low
power fractional-N frequency synthesis for all receive and
transmit channels. Channel isolation, demanded by frequency
division duplex (FDD) systems, is integrated into the design.
All VCO and loop filter components are integrated.
The core of the AD9361 can be powered directly from a 1.3 V
regulator. The IC is controlled via a standard 4-wire serial port
and four real-time I/O control pins. Comprehensive power-down
modes are included to minimize power consumption during
normal use. The AD9361 is packaged in a 10 mm × 10 mm,
144-ball chip scale package ball grid array (CSP_BGA).
To access the complete data sheet, download the design support package from the AD9361 product page.
AD9361
RX1B_P,
RX1B_N
P1_[D11:D0]/
RX_[D5:D0]
P0_[D11:D0]/
TX_[D5:D0]
RADIO
SWITCHING
NOTES
1. SPI, CTRL, P0_[D11:D0]/TX_[D5:D0], P1_[D11:D0]/RX_[D5:D0],
AND RADIO SWITCHING CONTAIN MULTIPLE PINS.
RX1A_P,
RX1A_N
RX1C_P,
RX1C_N
RX2B_P,
RX2B_N
RX2A_P,
RX2A_N
RX2C_P,
RX2C_N
TX_MON1
DATA INTERFACE
RX LO
TX LO
TX1A_P,
TX1A_N
TX1B_P,
TX1B_N
TX_MON2
TX2A_P,
TX2A_N
TX2B_P,
TX2B_N
CTRL
AUXDACx XTALP XTALNAUXADC
CTRL
SPI
DAC
DAC
GPO
PLLs
DAC
ADC
CLK_OUT
DAC
ADC
ADC
10453-001
