3.5 GSPS Direct Digital Synthesizer
with 12-Bit DAC
Data Sheet
AD9914
Rev. D Document Feedback
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 ©2012–2014 Analog Devices, Inc. All rights reserved.
Technical Support www.analog.com
FEATURES
3.5 GSPS internal clock speed
Integrated 12-bit DAC
Frequency tuning resolution to 190 pHz
16-bit phase tuning resolution
12-bit amplitude scaling
Programmable modulus
Automatic linear and nonlinear frequency sweeping
capability
32-bit parallel datapath interface
8 frequency/phase offset profiles
Phase noise: −128 dBc/Hz (1 kHz offset at 1396 MHz)
Wideband SFDR < −50 dBc
Serial or parallel I/O control
1.8 V/3.3 V power supplies
Software and hardware controlled power-down
88-lead LFCSP package
PLL REF CLK multiplier
Phase modulation capability
Amplitude modulation capability
APPLICATIONS
Agile LO frequency synthesis
Programmable clock generator
FM chirp source for radar and scanning systems
Test and measurement equipment
Acousto-optic device drivers
Polar modulator
Fast frequency hopping

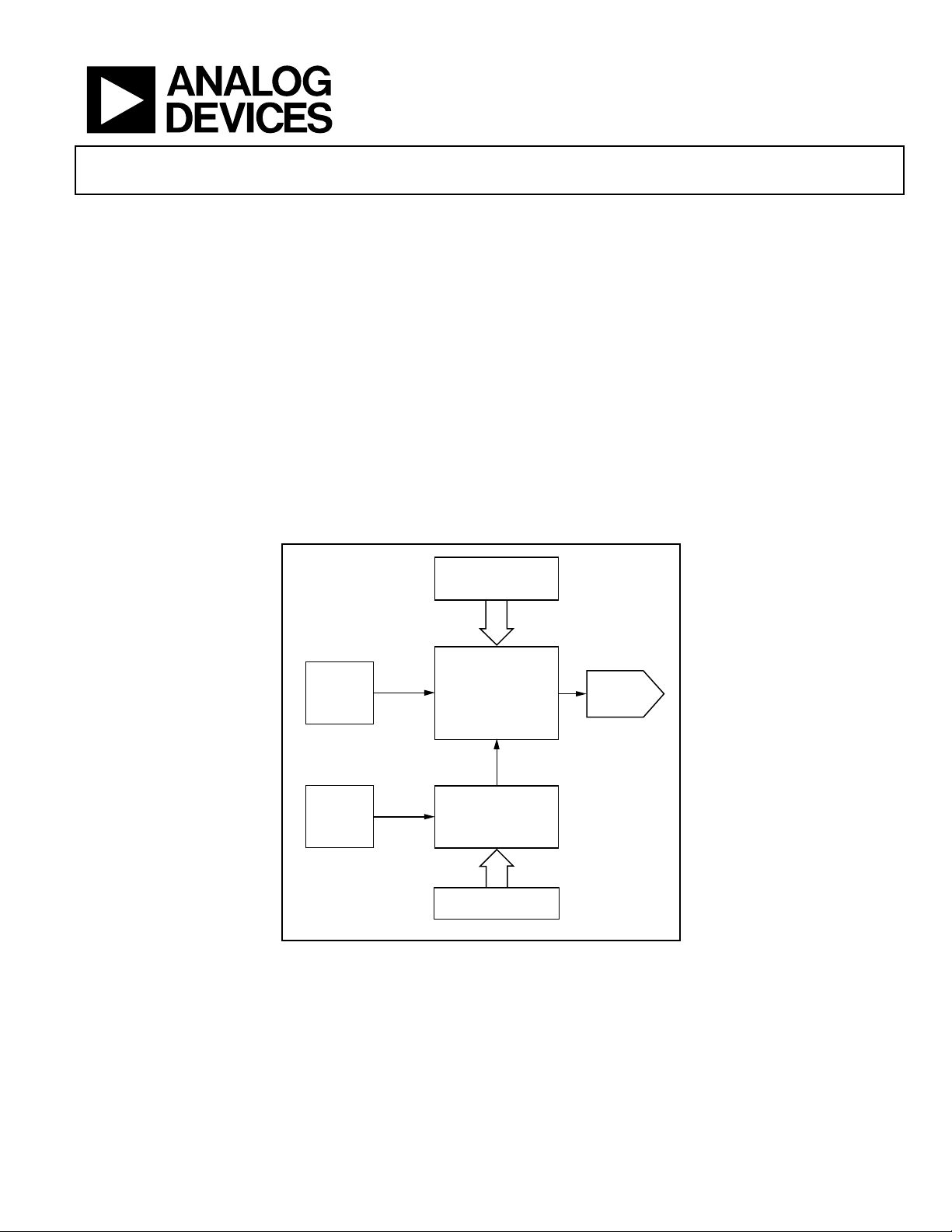

FUNCTIONAL BLOCK DIAGRAM
Figure 1.
12-BIT DAC
3.5GSPS DDS CORE
TIMING AND CONTRO
L
10836-001
AD9914
HIGH SPEED PARALLEL
MODULATION
PORT
LINEAR
SWEEP
BLOCK
SERIAL OR PARALLEL
DATA PORT
REF CLK
MULTIPLIER
