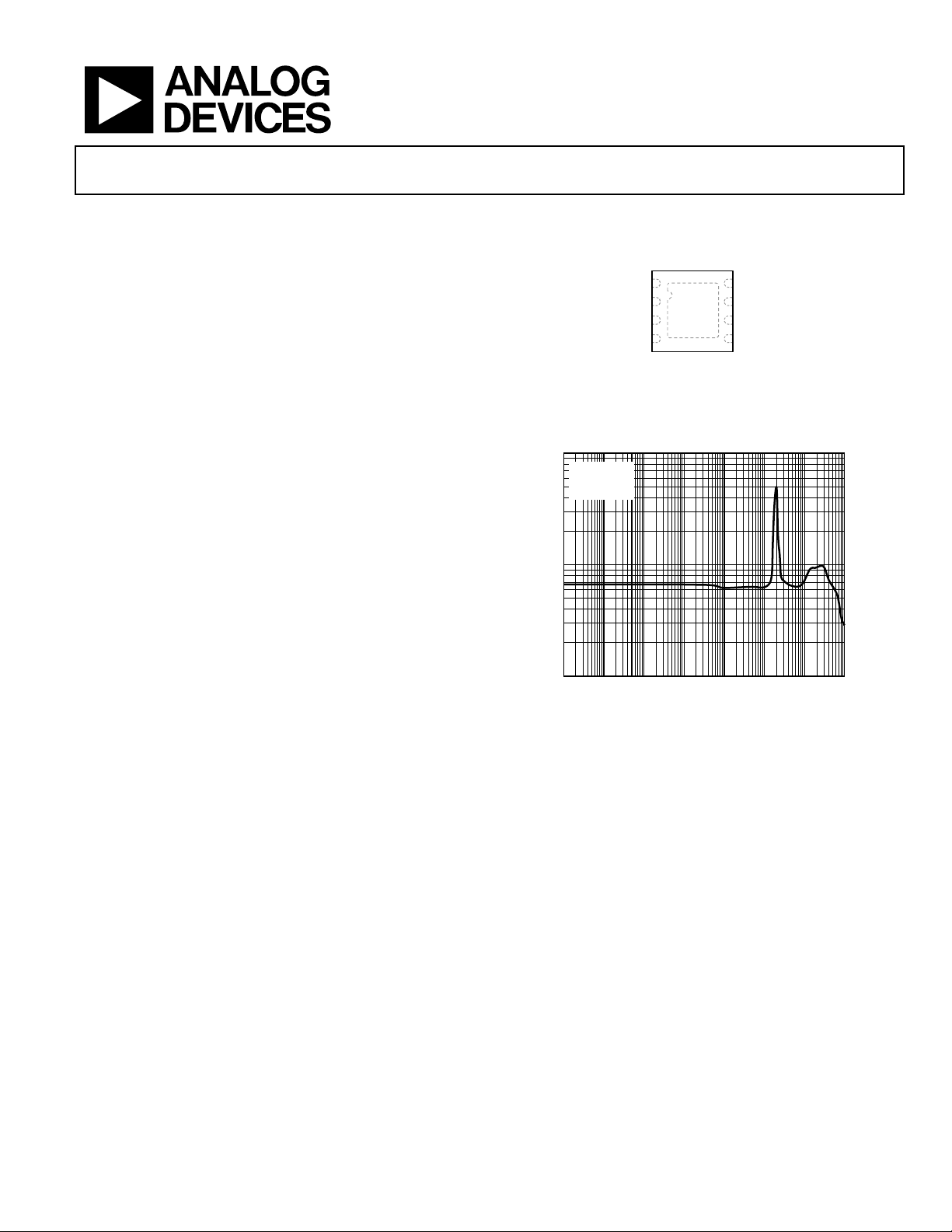

Precision, Ultralow Noise, RRIO,
Zero-Drift Op Amp
Enhanced Product
ADA4528-2-EP
Rev. 0 Document Feedback
Information
furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 ©2016 Analog Devices, Inc. All rights reserved.
Technical Support www.analog.com
FEATURES
Low offset voltage: 2.5 µV maximum
Low offset voltage drift: 0.015 μV/°C maximum
Low noise
5.6 nV/√Hz at f = 1 kHz, A
V
= +100
97 nV p-p at f = 0.1 Hz to 10 Hz, A
V
= +100
Open-loop gain: 130 dB minimum
CMRR: 135 dB minimum
PSRR: 130 dB minimum
Unity-gain crossover: 4 MHz
Gain bandwidth product: 3 MHz at A
V
= +100
−3 dB closed-loop bandwidth: 6.2 MHz
Single-supply operation: 2.2 V to 5.5 V
Dual-supply operation: ±1.1 V to ±2.75 V
Rail-to-rail input and output (RRIO)
Unity-gain stable
ENHANCED PRODUCT FEATURES
Supports defense and aerospace applications (AQEC standard)
Extended industrial temperature range: −55°C to +125°C
Controlled manufacturing baseline
1 assembly/test site
1 fabrication site
Product change notification
Qualification data available upon request
APPLICATIONS
Thermocouples/thermopiles
Load cell and bridge transducers
Precision instrumentation
Electronic scales
Medical instrumentation
Handheld test equipment
PIN CONNECTION DIAGRAM
NOTES
1. CONNECT THE EXPOSED PAD TO
V– OR LEAVE IT UNCONNECTED.
14897-107
3+IN A
4V–
1OUT A
2–IN A
6 –IN B
5 +IN B
8 V+
7 OUT B
ADA4528-2-EP
TOP VIEW
(Not to Scale)
Figure 1.
1
10
100
1
10
100
1k 10k
100k
1M 10M
VOLTAGE NOISE DENSIT
Y
(nV/√Hz)
FREQUENC
Y
(Hz)
14897-063
V
SY
= 5V
V
CM
= V
SY
/2
A
V
= 1
Figure 2. Voltage Noise Density vs. Frequency
GENERAL DESCRIPTION
The ADA4528-2-EP is an ultralow noise, zero-drift operational
amplifier featuring rail-to-rail input and output swing. With an
offset voltage of 2.5 μV, offset voltage drift of 0.015 μV/°C, and
typical noise of 97 nV p-p (0.1 Hz to 10 Hz, A
V
= +100), the
ADA4528-2-EP is well suited for applications in which error
sources cannot be tolerated.
The ADA4528-2-EP has a wide operating supply range of 2.2 V to
5.5 V, high gain, and excellent CMRR and PSRR specifications,
which make it ideal for applications that require precision
amplification of low level signals, such as position and pressure
sensors, strain gages, and medical instrumentation.
The ADA4528-2-EP is specified over the extended industrial
temperature range (−55°C to +125°C) and is available in an 8-lead
LFCSP package.
Additional application and technical information can be found
in the ADA4528-2 datasheet.
