ADA4530-1R-EBZ User Guide
UG-865
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Te l: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for the ADA4530-1 8-Lead SOIC Package
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 14
FEATURES
Footprint for ADA4530-1 8-lead SOIC package
Footprints for passive components
Available in buffer or transimpedance configuration
Easy modifications to other standard configurations
Guard ring to minimize leakage current
Assembled with metal shields
Enables quick prototyping
Easy connection to test equipment
GENERAL DESCRIPTION
The ADA4530-1R-EBZ is an evaluation board for the ADA4530-1
offered in an 8-lead SOIC package. The ADA4530-1R-EBZ is a
4-layer printed circuit board (PCB) designed to minimize
leakage currents with its guard ring features for femtoampere
input bias current (I
B
) measurement.
The ADA4530-1R-EBZ is available in two default configurations:
buffer (ADA4530-1R-EBZ-BUF) and transimpedance
(ADA4530-1R-EBZ-TIA). Both boards are populated with the
necessary passive components, banana jacks/terminal blocks for
supply voltages, BNC/terminal blocks for the output voltage,
multiple test pins, and metal shields. All components are placed
on the primary side with the exception of the triaxial (triax)/
coaxial (coax) input connector (J1) and SHIELD3.
The ADA4530-1R-EBZ also has unpopulated resistor and
capacitor pads that allows quick prototyping with different
configurations, such as noninverting gain and inverting gain.
Specifications for the ADA4530-1 are provided in the
ADA4530-1 data sheet available from Analog Devices, Inc.
The ADA4530-1 data sheet and the AN-1373 Application Note
should be consulted in conjunction with this user guide when
using the evaluation board.
Figure 1 shows the top view of the evaluation board, and Figure 2
shows the bottom view. For more views of the evaluation board
images, see the ADA4530-1R-EBZ Evaluation Board Photographs
section.

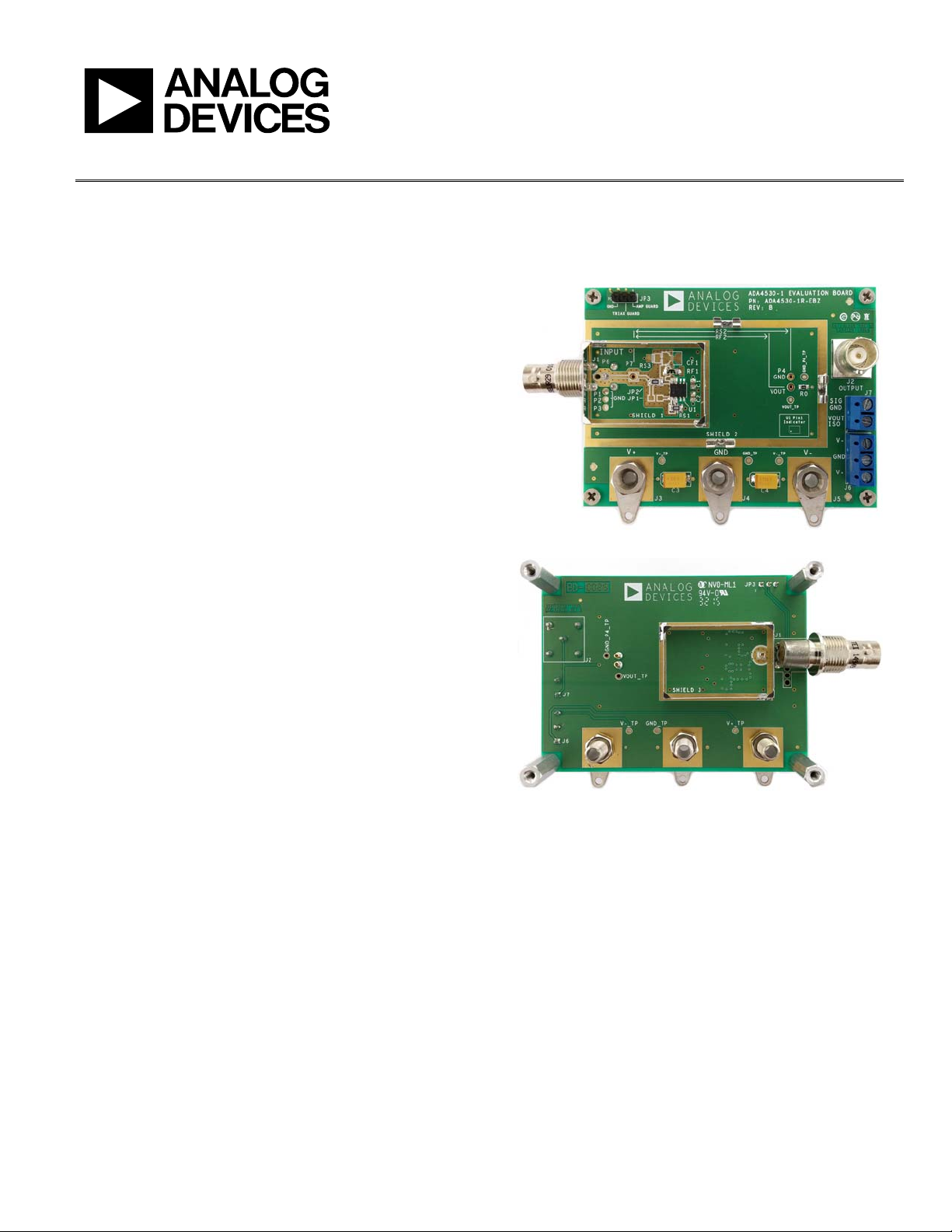

EVALUATION BOARD PHOTOGRAPHS
13409-001
Figure 1. ADA4530-1R-EBZ Top View
13409-003
Figure 2. ADA4530-1R-EBZ Bottom View
