Evaluation Board User Guide
UG-020
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Universal Evaluation Board for Quad High Speed Op Amps
Offered in 14-Lead TSSOP Packages
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 4
FEATURES
Enables quick breadboarding/prototyping
User-defined circuit configuration
Edge-mounted SMA connector provisions
Easy connection to test equipment and other circuits
GENERAL DESCRIPTION
The Analog Devices, Inc., EB-O14RU-4Z universal evaluation
board is designed to help users evaluate quad high speed op
amps offered in 14-lead TSSOP packages. The EB-O14RU-4Z is
a bare board (that is, there are no components soldered to the
board) that enables users to quickly prototype a variety of quad
op amp circuits, which minimizes risk and reduces time to
market. Figure 1 shows the circuit side and the component side
of the evaluation board.
The evaluation board is a 2-layer PCB that accepts SMA edge-
mounted connectors on the inputs and outputs for efficient
connection to test equipment or other circuitry. The ground
plane, component placement, and supply bypassing are
designed to minimize parasitic inductances and capacitances.
The evaluation board components are primarily SMT 0805 case
size, with the exception of the electrolytic bypass capacitors (C1
and C2), which are 3528 case size.
Figure 2 shows the evaluation board schematic. The PCB layout
pattern for the PCB is shown in Figure 4 and Figure 6.

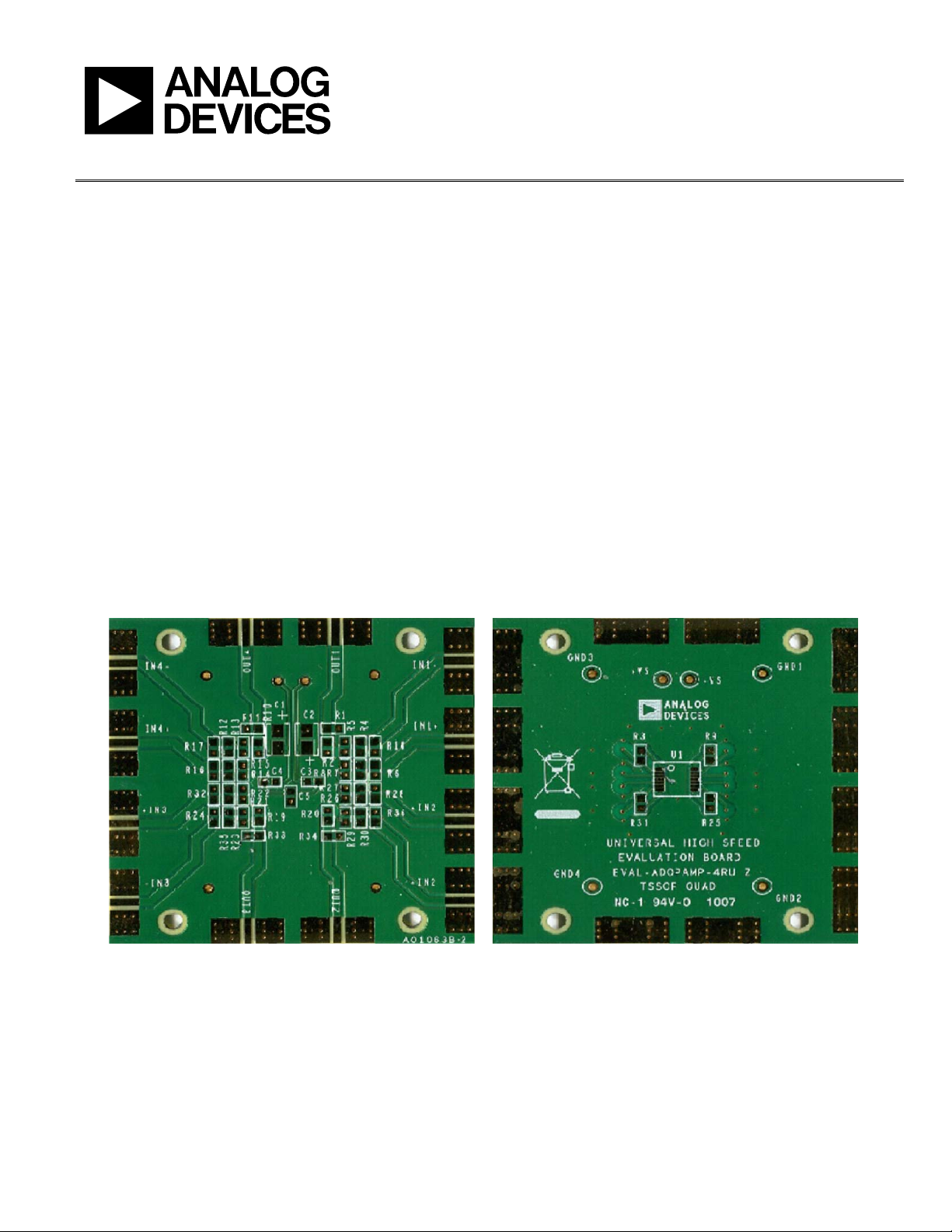

DIGITAL PICTURE OF EVALUATION BOARD
08147-001
NOTES
1. THE EVALUATION BOARD SILKSCREEN PART NUMBER LABELING ON YOUR BOARD MAY BE DIFFERENT
FROM WHAT IS SHOWN HERE.
COMPONENT SIDECIRCUIT SIDE
Figure 1. EB-O14RU-4Z Component Side and Circuit Side of the PCB
