Evaluation Board User Guide
UG-092
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for the Integer-N PLL Frequency Synthesizer
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. A | Page 1 of 24
FEATURES
General-purpose PLL evaluation board excluding VCO, loop
filter, and TCXO
Contains ADF4001 200 MHz frequency synthesizer IC
Accompanying software allows complete control of
synthesizer functions from a PC
EVALUATION KIT CONTENTS
EV-ADF4001SD1Z board
CD that includes
Self-installing software that allows users to control the
board and exercise all functions of the device
Electronic version of the ADF4001 data sheet
Electronic version of the UG-092 user guide
ADDITIONAL EQUIPMENT
PC running Windows XP or more recent version
SDP-S board (system demonstration platform, serial only)
T-package VCO
0805 resistors and capacitors
Spectrum analyzer
Oscilloscope (optional)
DOCUMENTS NEEDED
ADF4001 data sheet
REQUIRED SOFTWARE
Analog Devices Int-N software (Version 7 or higher)
ADIsimPLL
GENERAL DESCRIPTION
This board is designed to allow the user to evaluate the perfor-
mance of the ADF4001 frequency synthesizer for phase-locked
loops (PLLs). Figure 1 shows the board, which contains the
ADF4001 synthesizer, an SMA connector for the reference
input, power supplies, and an RF output. There is also a
footprint for a loop filter and a VCO on board.
The evaluation kit also contains software that is compatible with
Windows® XP and later versions to allow easy programming of
the synthesizer.
This board requires an SDP-S (system demonstration platform-
serial) board (shown in Figure 1, but not supplied with the kit).
The SDP-S allows software programming of the ADF4001 device.
EVALUATION BOARD

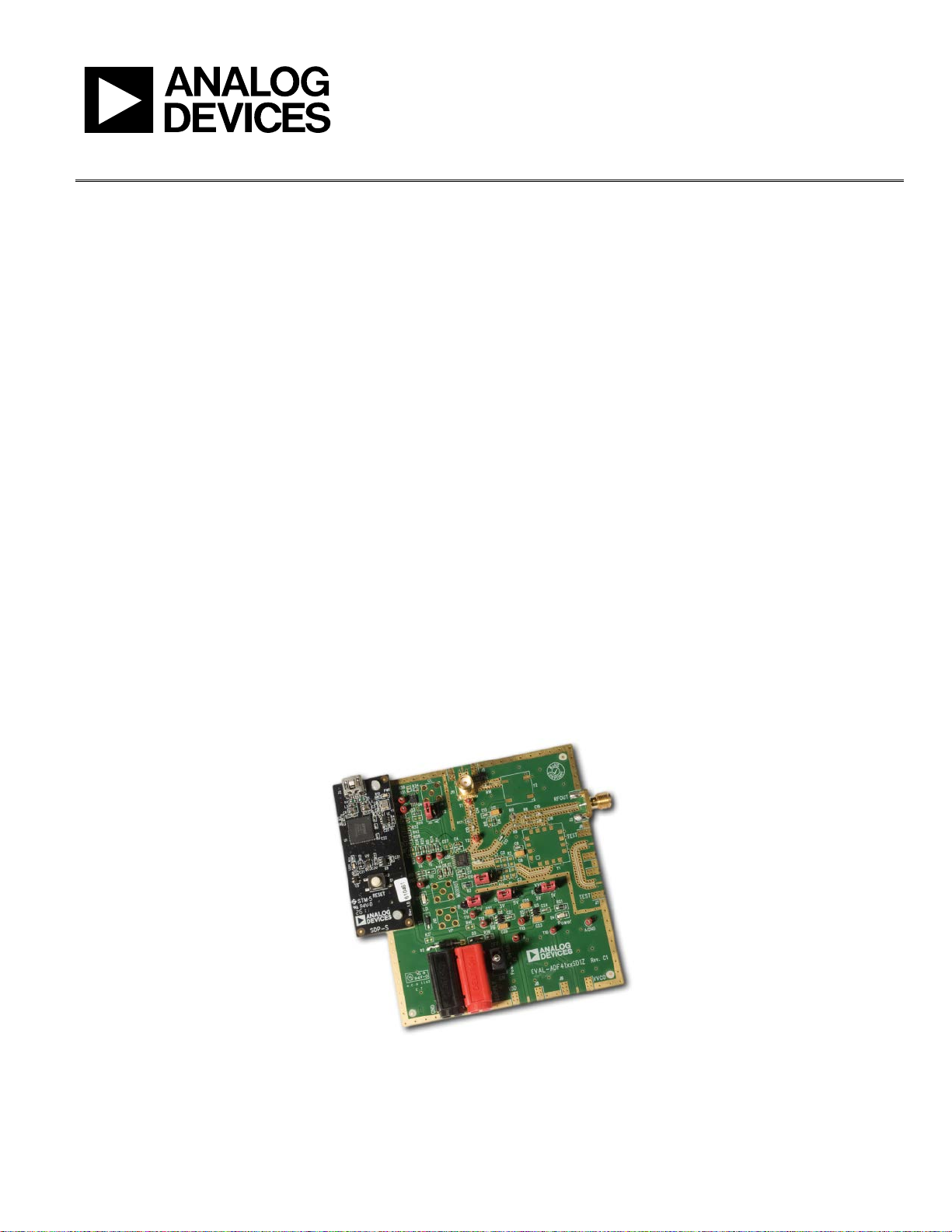

Figure 1. EV-ADF4001SD1Z with SDP-S
08872-001
