Evaluation Board User Guide
UG-164
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Te l: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
1750 MHz Evaluation Board for the PLL Frequency Synthesizer
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 8
FEATURES
Self-contained board including synthesizer, VCO, and loop
filter for generating frequencies of 1700 MHz to 1800 MHz
Designed for 20 kHz loop bandwidth
Accompanying software allows complete control of
synthesizer functions from a PC
Battery operated: choice of 3 V or 5 V supplies
Typical phase noise performance of −86 dBc/Hz at 1 kHz
offset
GENERAL DESCRIPTION
This board is designed to allow the user to evaluate the
performance of the ADF4113 frequency synthesizer for phase
locked loops (PLLs). The block diagram of the board is shown
in Figure 1. It contains the ADF4113 synthesizer, a PC con-
nector, an SMA connector for the reference input, power
supplies, and an RF output. There is also a loop filter (20 kHz
bandwidth) and a VCO on board. A cable is included with the
board to connect to a PC printer port.
The package also contains Windows® software to allow easy
programming of the synthesizer.

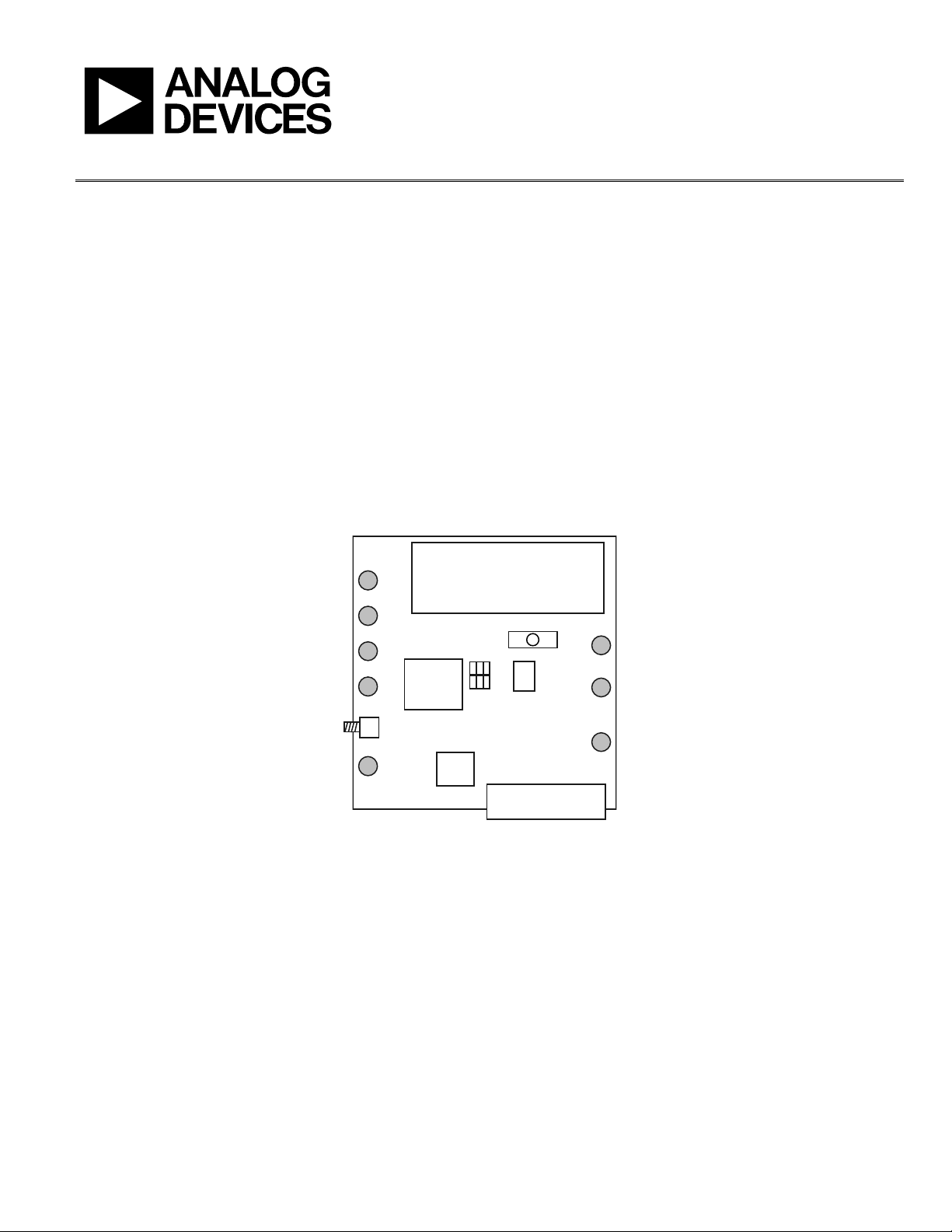

EVALUATION BOARD CONNECTION DIAGRAM
VCO
PC CONNECTOR
9V BATTERY
ADF411x
EVAL-ADF411xEBZ1
V
P
CE
MUXOUT
RF
OUT
REF
IN
V
VCO
V
DD
TCXO
SMA
SOCKET
POWERSWITCH
ON OFF
TEST
TEST
FILTER
0
9149-001
Figure 1.
