Integrated Synthesizer and VCO
Data Sheet
ADF4360-0
Rev. D Document Feedback
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 ©2004–2016 Analog Devices, Inc. All rights reserved.
Technical Support www.analog.com
FEATURES
Output frequency range: 2400 MHz to 2725 MHz
Divide-by-2 output
3.0 V to 3.6 V power supply
1.8 V logic compatibility
Integer-N synthesizer
Programmable dual-modulus prescaler 16/17, 32/33
Programmable output power level
3-wire serial interface
Analog and digital lock detect
Hardware and software power-down mode
APPLICATIONS
Wireless handsets (DECT, GSM, PCS, DCS, WCDMA)
Test equipment
Wireless LANs
CATV equipment
GENERAL DESCRIPTION
The ADF4360-0 is a fully integrated integer-N synthesizer and
voltage-controlled oscillator (VCO). The ADF4360-0 is designed
for a center frequency of 2600 MHz. In addition, a divide-by-2
option is available, whereby the user gets an RF output of
between 1200 MHz and 1360 MHz.
Control of all the on-chip registers is through a simple 3-wire
interface. The device operates with a power supply ranging
from 3.0 V to 3.6 V and can be powered down when not in use.

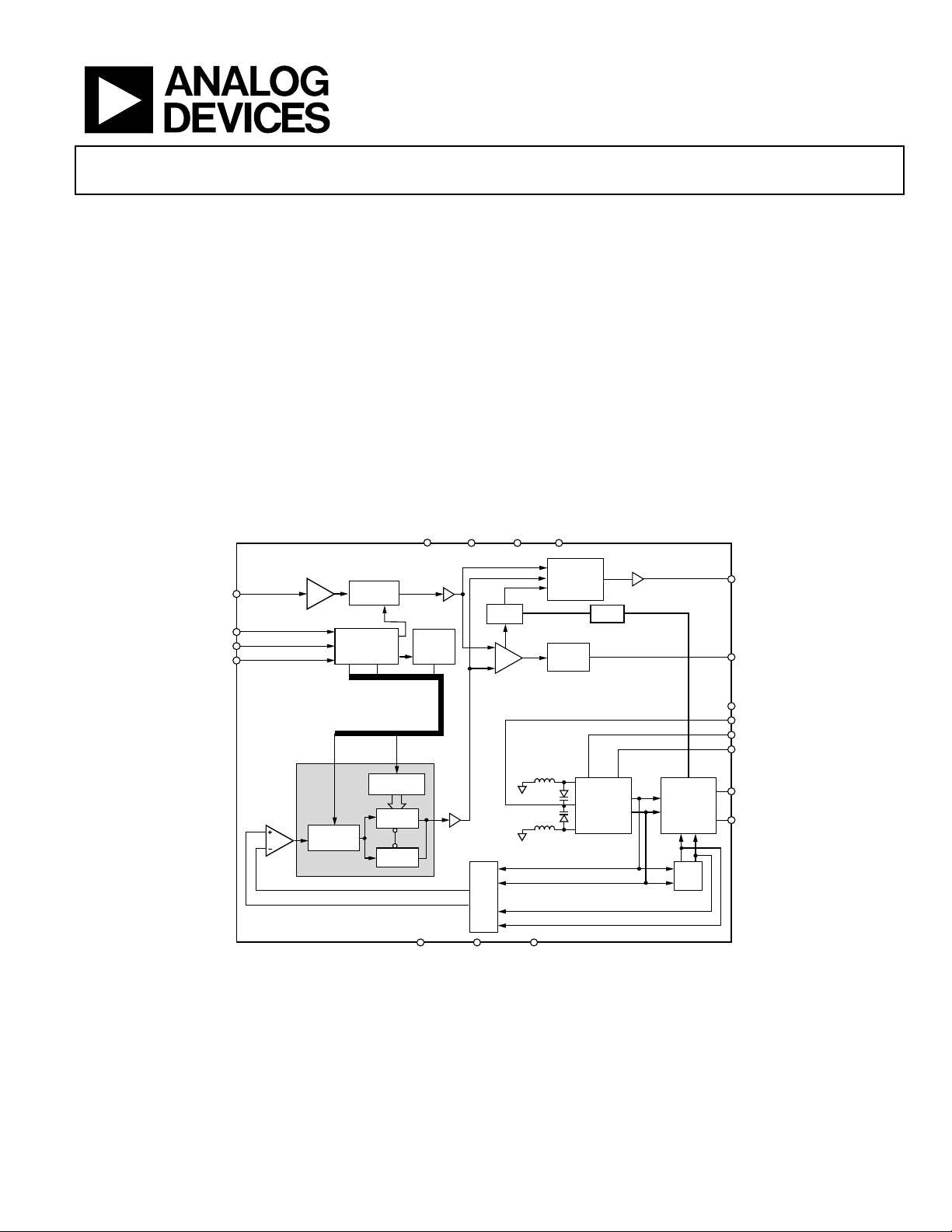

FUNCTIONAL BLOCK DIAGRAM
MUXOUT
CP
V
VCO
REF
IN
CLK
DATA
LE
AV
DD
DV
DD
CE
AGND DGND CPGND
R
SET
V
TUNE
C
C
C
N
RF
OUT
A
RF
OUT
B
VCO
CORE
PHASE
COMPARATOR
MUTE
DIVSEL = 2
DIVSEL = 1
N = (BP + A)
LOAD
LOAD
CHARGE
PUMP
OUTPUT
STAGE
MULTIPLEXER
INTEGER
REGISTER
13-BIT B
COUNTER
14-BIT R
COUNTER
24-BIT
FUNCTION
LATCH
24-BIT
DATA REGISTER
5-BIT A
COUNTER
PRESCALER
P/P+1
MULTIPLEXER
LOCK
DETECT
÷2
ADF4360-0
04644-001
Figure 1.
