4 GHz to 18 GHz
Divide-by-2 Prescaler
Data Sheet
ADF5000
Rev. A Document Feedback
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 ©2011–2013 Analog Devices, Inc. All rights reserved.
Technical Support www.analog.com
FEATURES
Divide-by-2 prescaler
High frequency operation: 4 GHz to 18 GHz
Integrated RF decoupling capacitors
Low power consumption
Active mode: 30 mA
Power-down mode: 17 mA
Low phase noise: −147 dBc/Hz
Single dc supply: 3.3 V compatible with ADF4xxx PLLs
Temperature range: −40°C to +105°C
Small package: 3 mm × 3 mm LFCSP
APPLICATIONS
PLL frequency range extender
Point-to-point radios
VSAT radios
Communications test equipment
GENERAL DESCRIPTION
The ADF5000 prescaler is a low noise, low power, fixed RF
divider block that can be used to divide down frequencies as
high as 18 GHz to a lower frequency suitable for input to a
PLL IC, such as the ADF4156 or the ADF4106. The ADF5000
provides a divide-by-2 function. The ADF5000 operates from
a 3.3 V supply and has differential 100 Ω RF outputs to allow
direct interface to the differential RF inputs of PLLs such as
the ADF4156 and ADF4106.

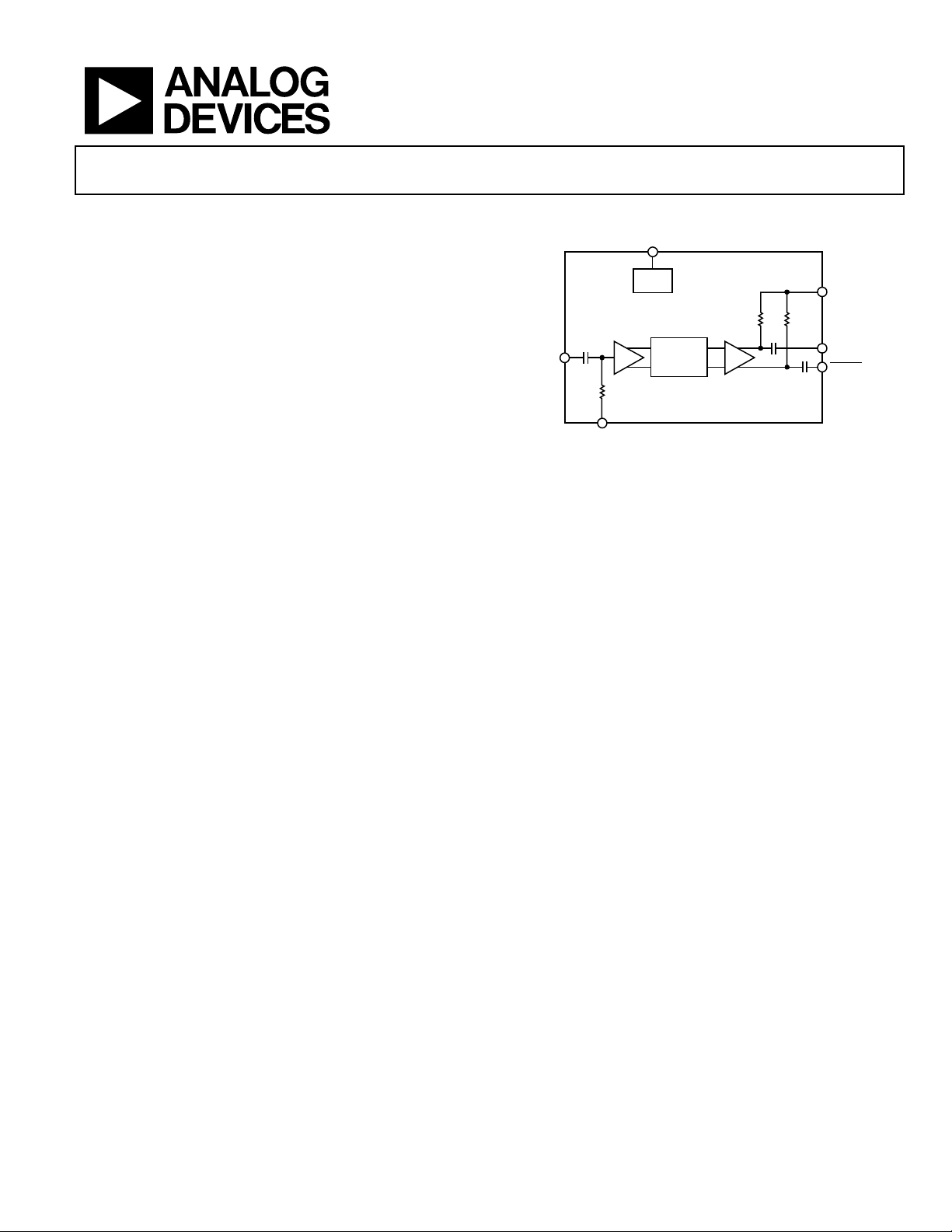

FUNCTIONAL BLOCK DIAGRAM
DIVIDE
BY 2
BIAS
ADF5000
CE
GND
RFIN
VDDx
RFOUT
RFOUT
100Ω
50Ω
100Ω
1pF
3pF
1pF
09129-001
Figure 1.
