5 kV rms Signal Isolated High Speed CAN
Transceiver with Bus Protection
Data Sheet
ADM3054
Rev. C Document Feedback
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 ©2012–2017 Analog Devices, Inc. All rights reserved.
Technical Support www.analog.com
FEATURES
5 kV rms signal isolated CAN transceiver
5 V or 3.3 V operation on V
DD1
5 V operation on V
DD2
V
DD2SENSE
to detect loss of power on V
DD2
Complies with ISO 11898 standard
High speed data rates of up to 1 Mbps
Short-circuit protection on CANH and CANL against shorts to
power/ground in 24 V systems
Unpowered nodes do not disturb the bus
Connect 110 or more nodes on the bus
Thermal shutdown protection
High common-mode transient immunity: >25 kV/μs
Safety and regulatory approvals
UL recognition
5000 V rms for 1 minute per UL 1577
VDE Certificates of Conformity
DIN V VDE V 0884-10 (VDE V 0884-10): 2006-12
V
IORM
= 846 V peak
Industrial operating temperature range: −40°C to +125°C
Wide-body, 16-lead SOIC package
Qualified for automotive applications
APPLICATIONS
CAN data buses
Industrial field networks
GENERAL DESCRIPTION
The ADM3054 is a 5 kV rms signal isolated controller area
network (CAN) physical layer transceiver. The ADM3054
complies with the ISO 11898 standard.
The device employs Analog Devices, Inc., iCoupler® technology
to combine a 3-channel isolator and a CAN transceiver into a
single package. The logic side of the device is powered with a
single 3.3 V or 5 V supply on V
DD1
and the bus side uses a single
5 V supply on V
DD2
only. Loss of power on the bus side (V
DD2
)
can be detected by an integrated V
DD2SENSE
signal.
The ADM3054 creates an isolated interface between the CAN
protocol controller and the physical layer bus. It is capable of
running at data rates of up to 1 Mbps.
The device has integrated protection on the bus pins, CANH
and CANL against shorts to power/ground in 24 V systems.
The device has current-limiting and thermal shutdown features
to protect against output short circuits and situations where the
bus might be shorted to ground or power terminals. The part is
fully specified over the industrial temperature range and is
available in a 16-lead, wide-body SOIC package.

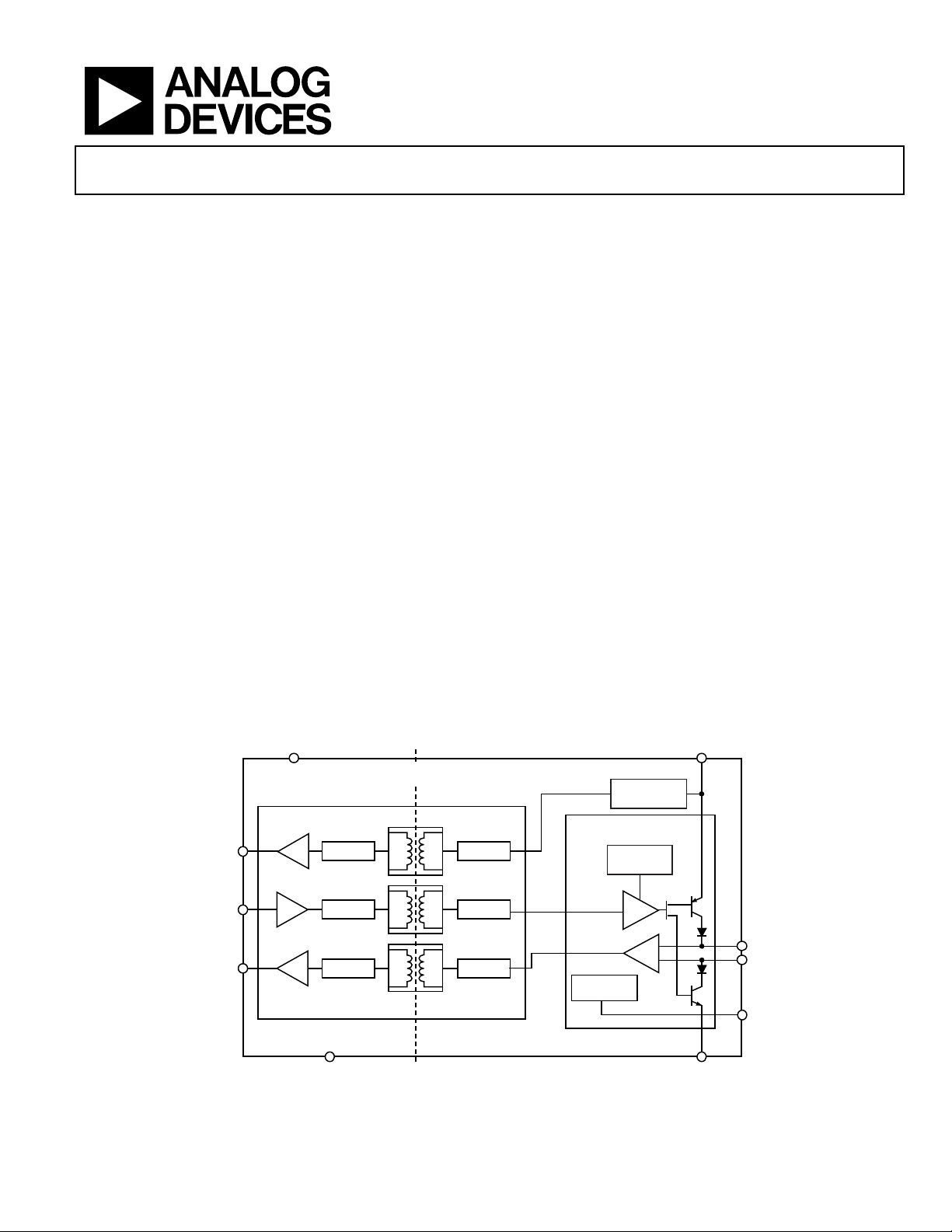

FUNCTIONAL BLOCK DIAGRAM
Figure 1
TxD
RxD
ISOLATION
BARRIER
GND
1
DECODE
DECODE
DECODE
V
DD2SENSE
ENCODE
ENCODE
ENCODE
V
REF
V
DD1
ADM3054
VOLTAGE
REFERENCE
CAN TRANSCEIVER
LOGIC SIDE BUS SIDE
V
DD2
CANL
CANH
DIGITAL ISOLATION
iCoupler
®
R
D
V
DD2
VOLTAGE
SENSE
THERMAL
SHUTDOWN
GND
2
10274-001
