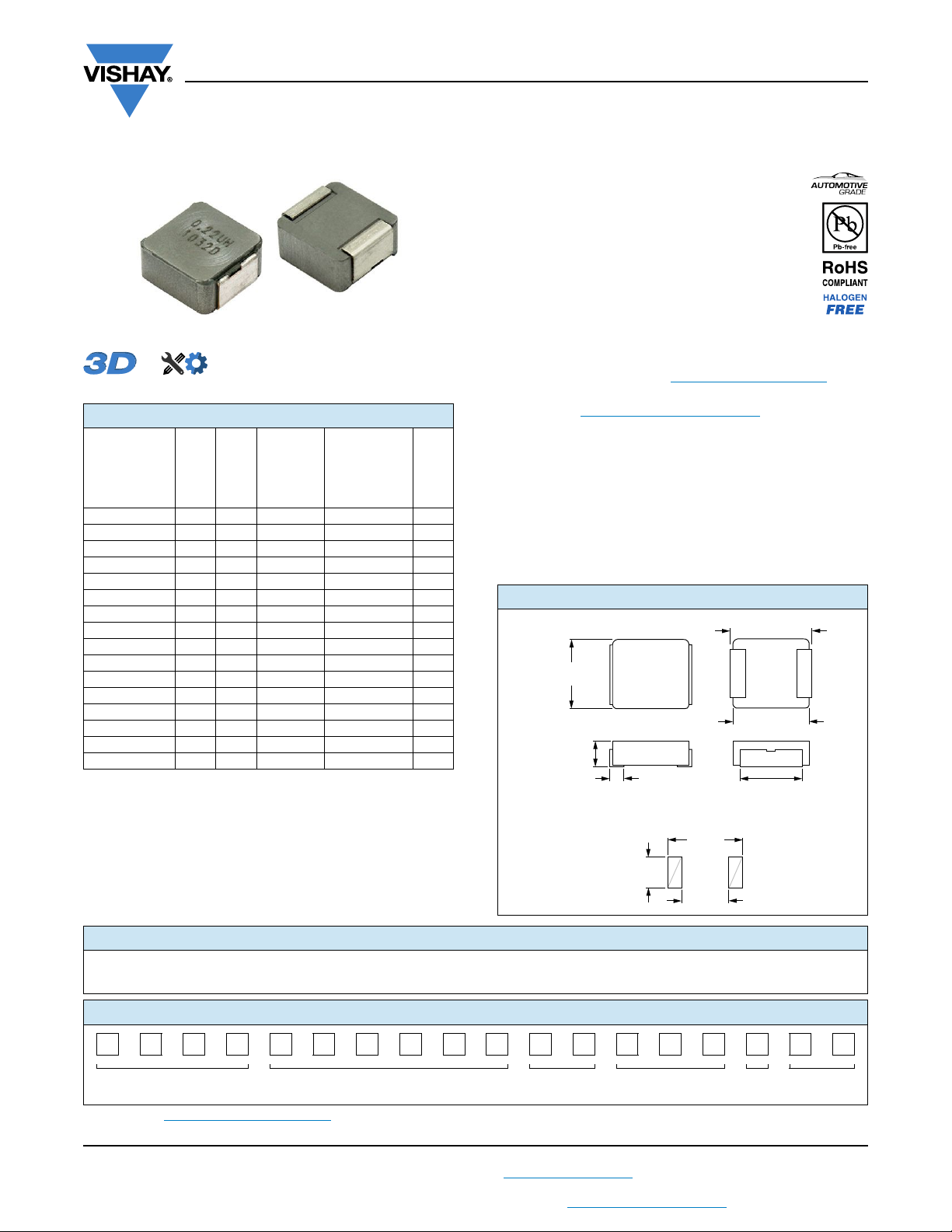

IHLP-3232DZ-1A
www.vishay.com
Vishay Dale
Revision: 12-Sep-17
1
Document Number: 34317
For technical questions, contact: magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
IHLP
®
Automotive Inductors, Low DCR Series
DESIGN SUPPORT TOOLS click logo to get started
Notes
• All test data is referenced to 25 °C ambient
• Operating temperature range -55 °C to +125 °C
• The part temperature (ambient + temp. rise) should not exceed
125 °C under worst case operating conditions. Circuit design,
component placement, PWB trace size and thickness, airflow
and other cooling provisions all affect the part temperature. Part
temperature should be verified in the end application
• Rated operating voltage (across inductor) = 50 V
(1)
DC current (A) that will cause an approximate T of 40 °C
(2)
DC current (A) that will cause L
0
to drop approximately 20 %
FEATURES
• Shielded construction
• Excellent DC/DC energy storage up to 1 MHz to
2 MHz. Filter inductor applications up to SRF
(see “Standard Electrical Specifications” table)
• Operating temperature up to 125 °C
• Lowest DCR/μH, in this package size
• Handles high transient current spikes without
saturation
• Ultra low buzz noise, due to composite construction
• AEC-Q200 qualified
• IHLP design. PATENT(S): www.vishay.com/patents
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
APPLICATIONS
• Engine and transmission control units
• Diesel injection drivers
• DC/DC converters for entertainment/navigation systems
• Noise suppression for motors: windshield wipers / power
seats / power mirrors / heating and ventilation blower /
HID lighting
• LED drivers
PATENT(S): www.vishay.com/patents
This Vishay product is protected by one or more United States and international patents.
STANDARD ELECTRICAL SPECIFICATIONS
L
0
INDUCTANCE
± 20 %
AT 100 kHz,
0.25 V, 0 A
(μH)
DCR
TYP.
25 °C
(m)
DCR
MAX.
25 °C
(m)
HEAT
RATING
CURRENT
DC TYP.
(A)
(1)
SATURATION
CURRENT
DC TYP.
(A)
(2)
SRF
TYP.
(MHz)
0.22 1.26 1.35 34.0 22.0 117
0.33 2.01 2.15 27.5 16.0 108
0.47 2.22 2.38 25.0 14.0 80
0.68 3.01 3.22 22.2 14.5 62
0.82 3.63 3.88 19.5 15.0 57
1.0 4.33 4.63 18.2 12.0 49
2.2 8.8 9.41 14.5 10.2 25
3.3 14.0 14.9 10.5 9.7 22
4.7 21.1 22.6 8.0 8.7 17
5.6 26.7 28.6 7.4 7.6 15
6.8 31.2 33.4 7.0 6.7 13
8.2 42.1 45.0 5.7 6.6 12.6
10.0 48.4 51.8 5.4 6.4 12
15.0 61.0 65.3 4.9 3.7 10.3
22.0 88.0 94.2 4.3 3.3 8.2
33.0 135 144 3.2 3.2 6.7
Available
Models
Available
Design Tools
DIMENSIONS in inches [millimeters]
Typical Pad Layout
0.190
[4.826]
0.380
[9.652]
0.210
[5.334]
0.322 ± 0.003
[8.18 ± 0.076]
0.054 ± 0.015
[1.372 ± 0.318]
0.158
[4.0]
Max.
0.200 ± 0.003
[5.08 ± 0.076]
0.322 ± 0.003
[8.18 ± 0.076]
0.340 ± 0.01
[8.64 ± 0.254]
DESCRIPTION
IHLP-3232DZ-1A 33 μH ± 20 % ER e3
MODEL INDUCTANCE VALUE INDUCTANCE TOLERANCE PACKAGE CODE JEDEC
®
LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
IHLP3232DZER330M1A
PRODUCT FAMILY SIZE PACKAGE
CODE
INDUCTANCE
VALUE
TOL. SERIES
