Isolated, Single-Channel
RS-232 Line Driver/Receiver
ADM3251E
Rev. 0
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 www.analog.com
Fax: 781.461.3113 ©2008 Analog Devices, Inc. All rights reserved.
FEATURES
2.5 kV fully isolated (power and data) RS-232 transceiver
isoPower integrated, isolated dc-to-dc converter
460 kbps data rate
1 Tx and 1 Rx
Meets EIA/TIA-232E specifications
ESD protection on R
IN
and T
OUT
pins
±8 kV: contact discharge
±15 kV: air gap discharge
0.1 μF charge pump capacitors
High common-mode transient immunity: >25 kV/μs
Safety and regulatory approvals (pending)
UL recognition
2500 V rms for 1 minute per UL 1577
VDE Certificate of Conformity
DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
V
IORM
= 560 V peak
Operating temperature range: −40°C to +85°C
Wide body, 20-lead SOIC package
APPLICATIONS
High noise data communications
Industrial communications
General-purpose RS-232 data links
Industrial/telecommunications diagnostic ports
Medical equipment

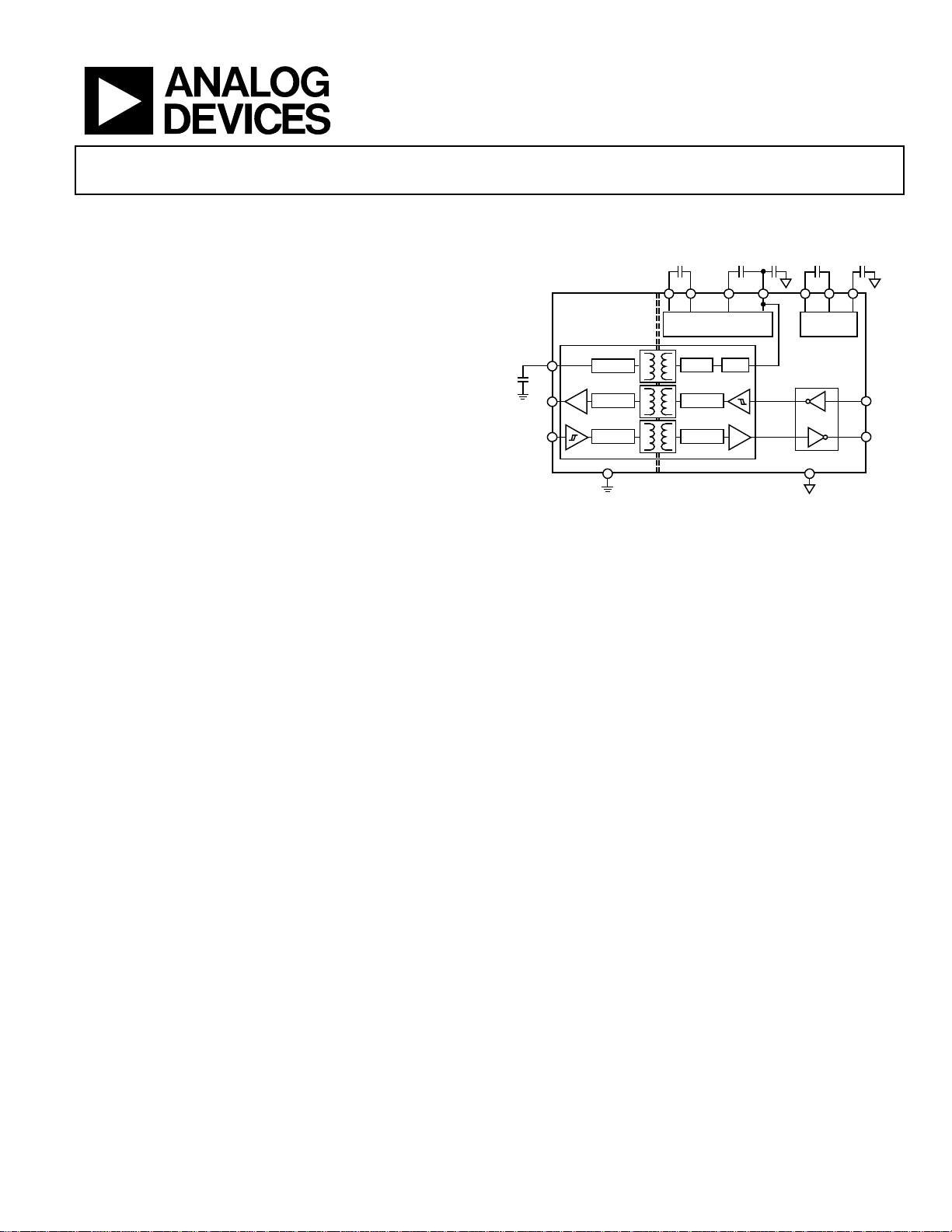

FUNCTIONAL BLOCK DIAGRAM
07388-001
DECODE
RECT REG
V–
C4
0.1µF
16V
VOLTAGE
DOUBLER
C1+ C1–
V+
V
ISO
C2+
C2–
R
T
VOLTAGE
INVERTER
V
CC
R
OUT
T
IN
GND GND
ISO
R
IN
*
T
OU
T
ADM3251E
OSC
ENCODE
ENCODE
DECODE
*5kΩ PULL-DOWN RESISTOR ON THE RS-232 INPUT.
0.1µF
C3
0.1µF
10V
C2
0.1µF
16V
0.1µF
C1
0.1µF
16V
Figure 1.
GENERAL DESCRIPTION
The ADM3251E is a high speed, 2.5 kV fully isolated, single-
channel RS-232/V.28 transceiver device that operates from a
single 5 V power supply. Due to the high ESD protection on the
R
IN
and T
OUT
pins, the device is ideally suited for operation in
electrically harsh environments or where RS-232 cables are
frequently being plugged and unplugged.
The ADM3251E incorporates dual-channel digital isolators with
isoPower™ integrated, isolated power. There is no requirement
to use a separate isolated dc-to-dc converter. Chip-scale trans-
former iCoupler® technology from Analog Devices, Inc., is used
both for the isolation of the logic signals as well as for the
integrated dc-to-dc converter. The result is a total isolation
solution.
The ADM3251E conforms to the EIA/TIA-232E and ITU-T V. 28
specifications and operates at data rates up to 460 kbps.
Four external 0.1 F charge pump capacitors are used for the
voltage doubler/inverter, permitting operation from a single
5 V supply.
The ADM3251E is available in a 20-lead, wide body SOIC package
and is specified over the −40°C to +85°C temperature range.
