REV. 0
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties
which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Analog Devices.
a
Microprocessor
Supervisory Circuits
ADM8690–ADM8695
FEATURES
Upgrade for ADM690/ADM695, MAX690–MAX695
Specified Over Temperature
Low Power Consumption (0.7 mW)
Precision Voltage Monitor
Reset Assertion Down to 1 V V
CC
Low Switch On-Resistance 0.7 V Normal,
7 V in Backup
High Current Drive (100 mA)
Watchdog Timer—100 ms, 1.6 s, or Adjustable
400 nA Standby Current
Automatic Battery Backup Power Switching
Extremely Fast Gating of Chip Enable Signals (3 ns)
Voltage Monitor for Power Fail
Available in TSSOP Package
APPLICATIONS
Microprocessor Systems
Computers
Controllers
Intelligent Instruments
Automotive Systems

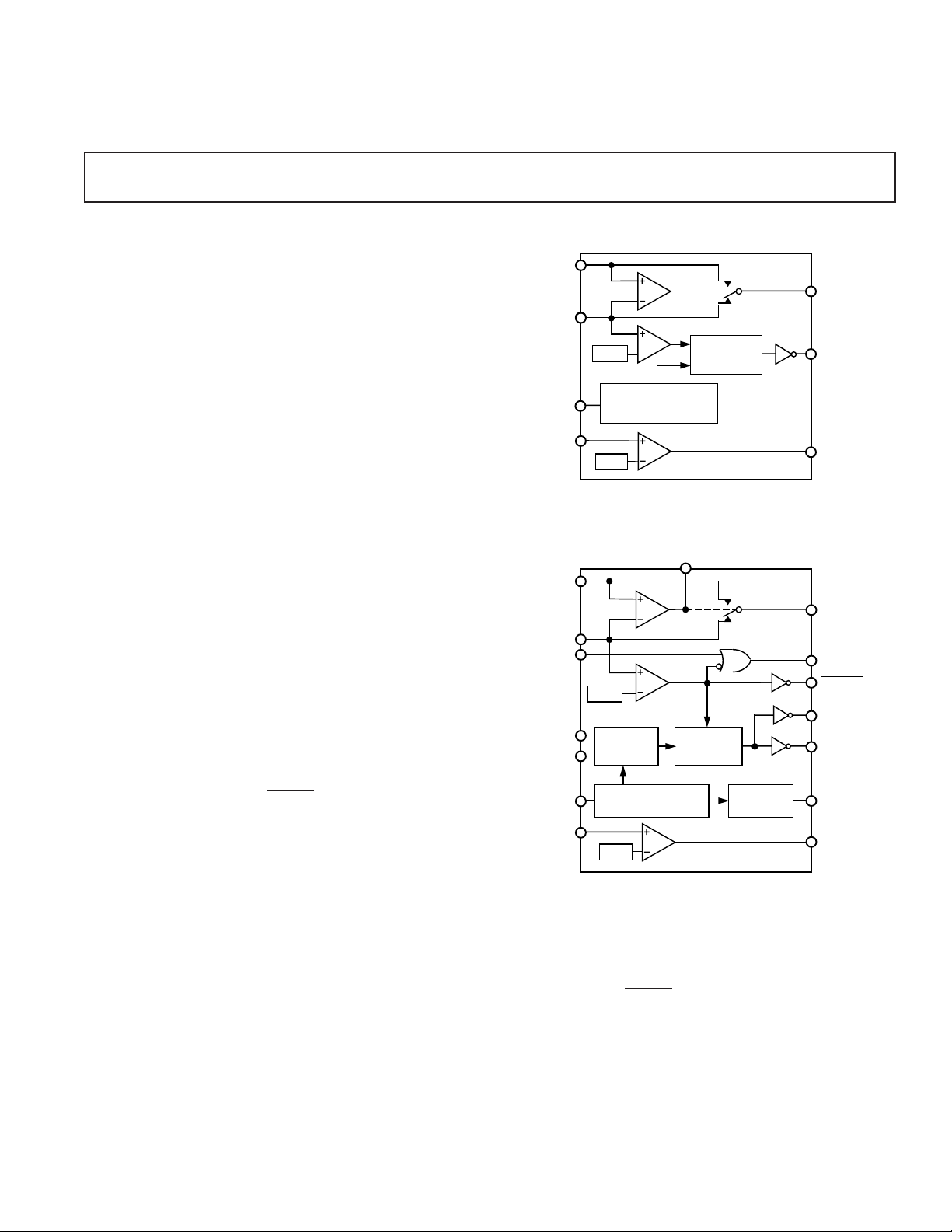

FUNCTIONAL BLOCK DIAGRAMS
ADM8691
ADM8693
ADM8695
4.65V
1
RESET AND
WATCHDOG
TIMEBASE
RESET
GENERATOR
WATCHDOG
TRANSITION DETECTOR
WATCHDOG
TIMER
1.3V
V
OUT
CE
OUT
LOW LINE
RESET
RESET
WATCHDOG
OUTPUT (WDO)
POWER FAIL
OUTPUT (PFO)
V
BATT
V
CC
CE
IN
OSC IN
OSC SEL
WATCHDOG
INPUT (WDI)
POWER FAIL
INPUT (PFI)
BATT ON
1
VOLTAGE DETECTOR = 4.65V (ADM8691, ADM8695)
4.40V (ADM8693)
ADM8690
ADM8692
ADM8694
4.65V
1
V
OUT
RESET
POWER FAIL
OUTPUT (PFO)
V
BATT
V
CC
WATCHDOG
INPUT (WDI)
POWER FAIL
INPUT (PFI)
1
VOLTAGE DETECTOR = 4.65V (ADM8690, ADM8694)
4.40V (ADM8692)
2
RESET PULSE WIDTH = 50ms (AD8690, ADM8692)
200ms (ADM8694)
WATCHDOG
TRANSITION DETECTOR
(1.6s)
RESET
GENERATOR
2
1.3V
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 617/329-4700 World Wide Web Site: http://www.analog.com
Fax: 617/326-8703 © Analog Devices, Inc., 1997
GENERAL DESCRIPTION
The ADM8690–ADM8695 family of supervisory circuits offers
complete single chip solutions for power supply monitoring and
battery control functions in microprocessor systems. These
functions include µP reset, backup battery switchover, watchdog
timer, CMOS RAM write protection and power failure warning.
The complete family provides a variety of configurations to sat-
isfy most microprocessor system requirements.
The ADM8690, ADM8692 and ADM8694 are available in
8-pin DIP packages and provide:
1. Power-on reset output during power-up, power-down and
brownout conditions. The
RESET output remains opera-
tional with V
CC
as low as 1 V.
2. Battery backup switching for CMOS RAM, CMOS
microprocessor or other low power logic.
3. A reset pulse if the optional watchdog timer has not been
toggled within a specified time.
4. A 1.3 V threshold detector for power fail warning, low battery
detection or to monitor a power supply other than +5 V.
The ADM8691, ADM8693 and ADM8695 are available in
16-pin DIP and small outline packages (including TSSOP) and
provide three additional functions:
1. Write protection of CMOS RAM or EEPROM.
2. Adjustable reset and watchdog timeout periods.
3. Separate watchdog timeout, backup battery switchover, and
low V
CC
status outputs.
The ADM8690–ADM8695 family is fabricated using an ad-
vanced epitaxial CMOS process combining low power con-
sumption (0.7 mW), extremely fast Chip Enable gating (3 ns)
and high reliability.
RESET assertion is guaranteed with V
CC
as
low as 1 V. In addition, the power switching circuitry is de-
signed for minimal voltage drop thereby permitting increased
output current drive of up to 100 mA without the need of an
external pass transistor.
