Ultracompact, 1.5 A Thermoelectric Cooler
(TEC) Controller
Data Sheet
ADN8834
FEATURES
Patented high efficiency single inductor architecture
Integrated low R
DSON
MOSFETs for the TEC controller
TEC voltage and current operation monitoring
No external sense resistor required
Independent TEC heating and cooling current limit settings
Programmable maximum TEC voltage
2.0 MHz PWM driver switching frequency
External synchronization
Two integrated, zero drift, rail-to-rail chopper amplifiers
Capable of NTC or RTD thermal sensors
2.50 V reference output with 1% accuracy
Temperature lock indicator
Available in a 25-ball, 2.5 mm × 2.5 mm WLCSP or in a
24-lead, 4 mm × 4 mm LFCSP
APPLICATIONS
TEC temperature control
Optical modules
Optical fiber amplifiers
Optical networking systems
Instruments requiring TEC temperature control

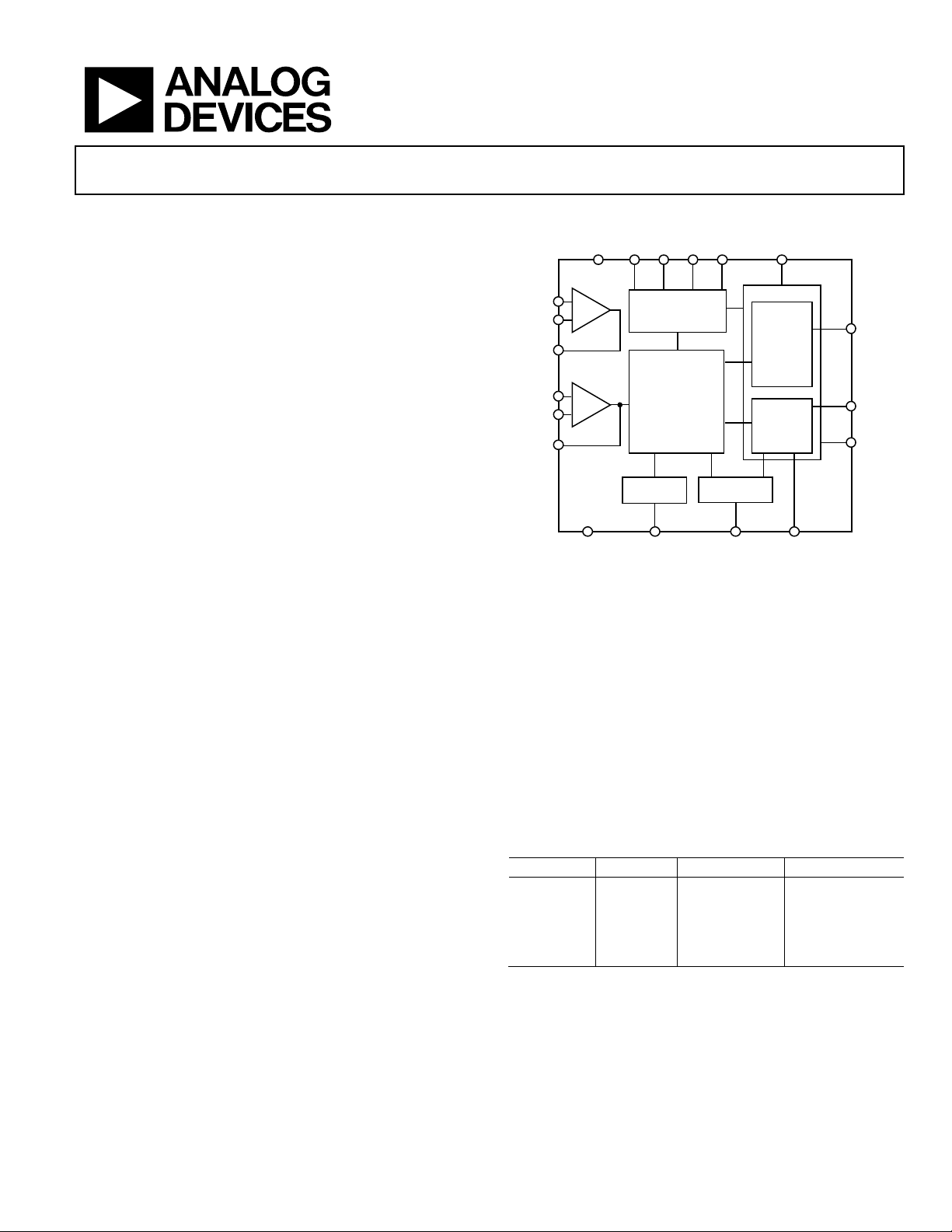

FUNCTIONAL BLOCK DIAGRAM
TEC CURRENT
AND VOLTAGE
SENSE AND LIMIT
CONTROLLER
LINEAR
POWER
STAGE
TEC DRIVER
PWM
POWER
STAGE
OSCILLATOR
VOLTAGE
REFERENCE
OUT1
VLIM/
SD VTECILIM PVINITEC
EN/SYVREF
LDR
SFB
IN2P
IN2N
IN1P
IN1N
OUT2
SW
PGNDx
VDD
AGND
ERROR
AMP
COMP
AMP
12954-001
Figure 1.
GENERAL DESCRIPTION
The ADN8834 is a monolithic TEC controller with an integrated
TEC controller. It has a linear power stage, a pulse-width
modulation (PWM) power stage, and two zero-drift, rail-to-rail
operational amplifiers. The linear controller works with the PWM
driver to control the internal power MOSFETs in an H-bridge
configuration. By measuring the thermal sensor feedback
voltage and using the integrated operational amplifiers as a
proportional integral differential (PID) compensator to condition
the signal, the ADN8834 drives current through a TEC to settle
the temperature of a laser diode or a passive component attached
to the TEC module to the programmed target temperature.
The ADN8834 supports negative temperature coefficient (NTC)
thermistors as well as positive temperature coefficient (PTC)
resistive temperature detectors (RTD). The target temperature is
set as an analog voltage input either from a digital-to-analog
converter (DAC) or from an external resistor divider.
The temperature control loop of the ADN8834 is stabilized by
PID compensation utilizing the built in, zero drift chopper
amplifiers. The internal 2.50 V reference voltage provides a 1%
accurate output that is used to bias a thermistor temperature
sensing bridge as well as a voltage divider network to program
the maximum TEC current and voltage limits for both the heating
and cooling modes. With the zero drift chopper amplifiers,
extremely good long-term temperature stability is maintained via
an autonomous analog temperature control loop.
Table 1. TEC Family Models
Device No. MOSFET Thermal Loop Package
ADN8831 Discrete Digital/analog LFCSP (CP-32-7)
ADN8833 Integrated Digital
WLCSP (CB-25-7),
LFCSP (CP-24-15)
ADN8834 Integrated Digital/analog
WLCSP (CB-25-7),
LFCSP (CP-24-15)
Rev. A Document Feedback
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 ©2015 Analog Devices, Inc. All rights reserved.
