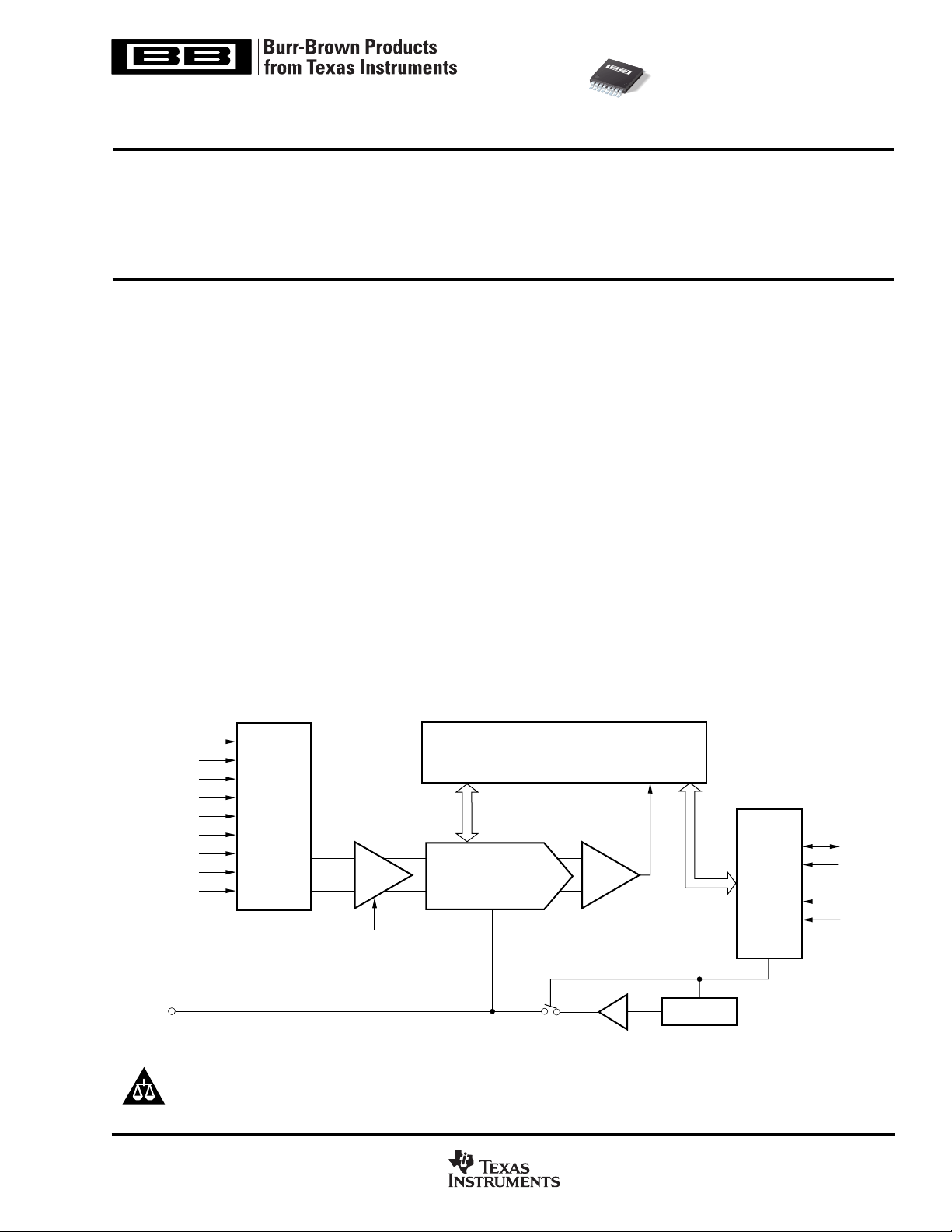

12-Bit, 8-Channel Sampling
ANALOG-TO-DIGITAL CONVERTER
with I
2
C
™
Interface
FEATURES
● 8-CHANNEL MULTIPLEXER
● 50kHz SAMPLING RATE
● NO MISSING CODES
● 2.7V TO 5V OPERATION
● INTERNAL 2.5V REFERENCE
● I
2
C INTERFACE SUPPORTS:
Standard, Fast, and High-Speed Modes
● TSSOP-16 PACKAGE
APPLICATIONS
● VOLTAGE-SUPPLY MONITORING
● ISOLATED DATA ACQUISITION
● TRANSDUCER INTERFACES
● BATTERY-OPERATED SYSTEMS
● REMOTE DATA ACQUISITION
DESCRIPTION
The ADS7828 is a single-supply, low-power, 12-bit data
acquisition device that features a serial I
2
C interface and an
8-channel multiplexer. The Analog-to-Digital (A/D) converter
features a sample-and-hold amplifier and internal,
asynchronous clock. The combination of an I
2
C serial,
2-wire interface and micropower consumption makes the
ADS7828 ideal for applications requiring the A/D converter to
be close to the input source in remote locations and for
applications requiring isolation. The ADS7828 is available in
a TSSOP-16 package.
ADS7828
SBAS181C – NOVEMBER 2001 - REVISED MARCH 2005
www.ti.com
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright © 2001-2005, Texas Instruments Incorporated
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
SAR
2.5V V
REF
Serial
Interface
SDA
Comparator
S/H Amp
REF
IN
/REF
OUT
SCL
CH0
CH1
CH2
CH3
CH4
CH5
CH6
CH7
COM
A0
A1
CDAC
8-Channel
MUX
Buffer
®
A
D
S7828
I
2
C is a trademark of Koninklijke Philps Electronics N.V. All other trademarks are the property of their respective owners.
