Triple-Channel Digital Isolators
Data Sheet
ADuM1310/ADuM1311
Rev. H
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 www.analog.com
Fax: 781.461.3113 ©2005–2012 Analog Devices, Inc. All rights reserved.
FEATURES
Low power operation
5 V operation
1.7 mA per channel maximum @ 0 Mbps to 2 Mbps
4.0 mA per channel maximum @ 2 Mbps to 10 Mbps
3 V operation
1.0 mA per channel maximum @ 0 Mbps to 2 Mbps
2.1 mA per channel maximum @ 2 Mbps to 10 Mbps
Bidirectional communication
3 V/5 V level translation
Schmitt trigger inputs
High temperature operation: 105°C
Up to 10 Mbps data rate (NRZ)
Programmable default output state
High common-mode transient immunity: >25 kV/μs
16-lead, RoHS-compliant, SOIC wide body package
8.1 mm external creepage
Safety and regulatory approvals
UL recognition: 2500 V rms for 1 minute per UL 1577
CSA Component Acceptance Notice #5A
VDE certificate of conformity
DIN V VDE V 0884-10 (VDE V 0884-10): 2006-12
V
IORM
= 560 V peak working voltage
APPLICATIONS
General-purpose multichannel isolation
SPI interface/data converter isolation
RS-232/RS-422/RS-485 transceiver
Industrial field bus isolation

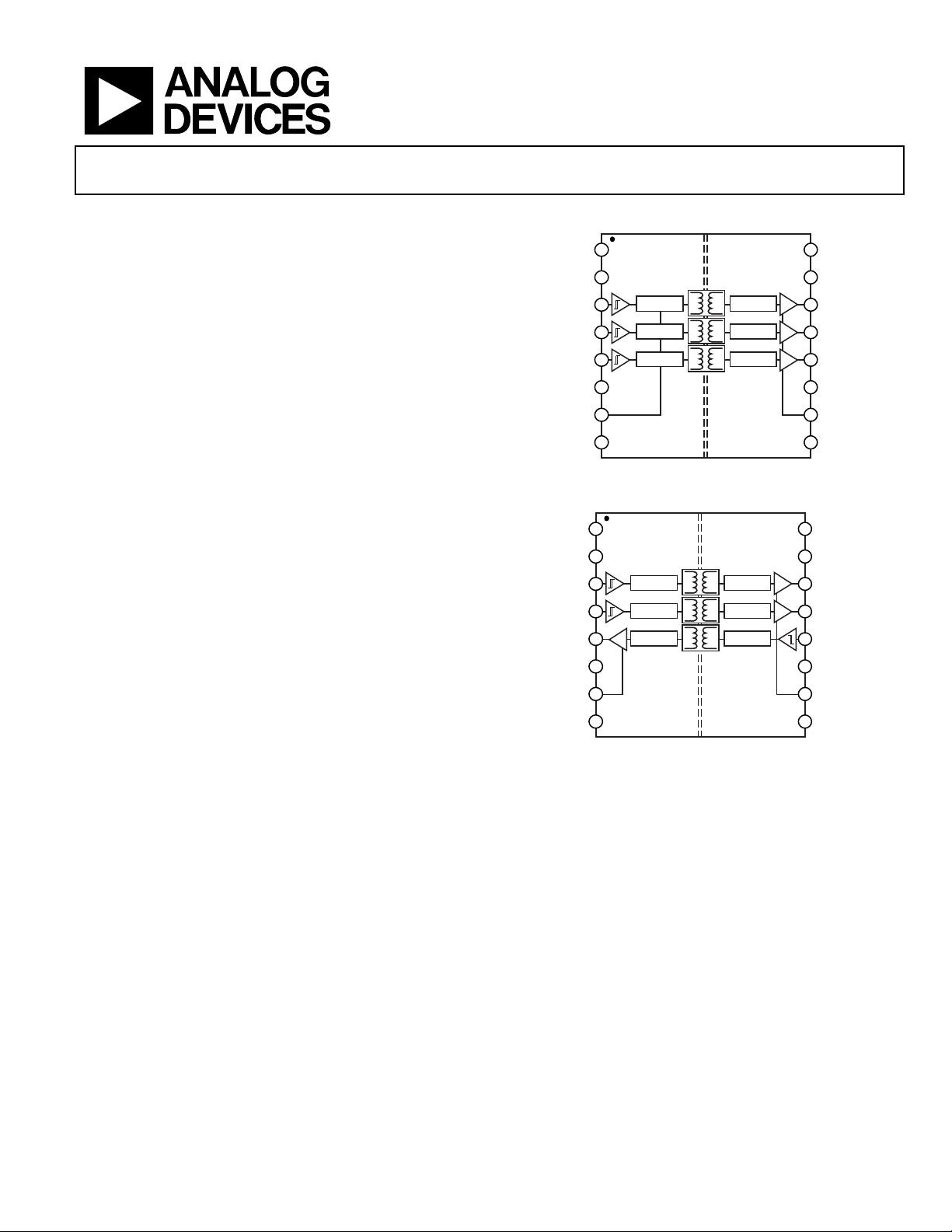

FUNCTIONAL BLOCK DIAGRAMS
ENCODE DECODE
ENCODE DECODE
ENCODE DECODE
V
DD1
GND
1
V
IA
V
IB
V
IC
NC
DISABLE
GND
1
V
DD2
GND
2
V
OA
V
OB
V
OC
NC
CTRL
2
GND
2
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
04904-001
ADuM1310
Figure 1. ADuM1310
DECODE ENCODE
ENCODE DECODE
ENCODE DECODE
V
DD1
GND
1
V
IA
V
IB
V
OC
NC
CTRL
1
GND
1
V
DD2
GND
2
V
OA
V
OB
V
IC
NC
CTRL
2
GND
2
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
04904-002
ADuM1311
Figure 2. ADuM1311
GENERAL DESCRIPTION
The ADuM131x
1
are 3-channel digital isolators based on
Analog Devices, Inc. iCoupler® technology. Combining high
speed CMOS and monolithic air core transformer technology,
these isolation components provide outstanding performance
characteristics superior to alternatives such as optocoupler devices.
By avoiding the use of LEDs and photodiodes, iCoupler devices
remove the design difficulties commonly associated with opto-
couplers. The typical optocoupler concerns regarding uncertain
current transfer ratios, maximum operating temperature, and
lifetime effects are eliminated with the simple iCoupler digital
interfaces and stable performance characteristics. The need for
external drivers and other discrete components is eliminated
with these iCoupler products. Furthermore, iCoupler devices
consume one-tenth to one-sixth the power of optocouplers at
comparable signal data rates. The iCoupler also offers higher
channel densities and more options for channel directionality.
The ADuM131x isolators provide three independent isolation
channels in a variety of channel configurations and data rates
up to 10 Mbps (see the Ordering Guide). All models operate
with the supply voltage on either side ranging from 2.7 V to
5.5 V, providing compatibility with lower voltage systems as well
as enabling voltage translation functionality across the isolation
barrier. All products allow the user to predetermine the default
output state in the absence of input V
DD1
power with a simple
control pin. Unlike other optocoupler alternatives, the ADuM131x
isolators have a patented refresh feature that ensures dc correctness
in the absence of input logic transitions and during power-up/
power-down conditions.
1
Protected by U.S. Patents 5,952,849; 6,873,065; and 7,075,329. Other patents
pending.
