Dual Port, Xpressview,
225 MHz HDMI Receiver
Data Sheet
ADV7612
Rev. E Document Feedback
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 ©2010–2014 Analog Devices, Inc. All rights reserved.
Technical Support www.analog.com
FEATURES
High-Definition Multimedia Interface (HDMI®) 1.4a features
supported
All mandatory and additional 3D video formats supported
Extended colorimetry, including sYCC601, Adobe RGB,
Adobe YCC 601, xvYCC extended gamut color
CEC 1.4-compatible
HDMI receiver
225 MHz maximum TMDS clock frequency
Xpressview fast switching of HDMI ports
36-/30-bit Deep Color and 24-bit color support
High-bandwidth Digital Content Protection (HDCP) 1.4
support with internal HDCP keys
HDCP repeater support
Up to 127 KSVs supported
Integrated CEC controller
Programmable HDMI equalizer
5 V detect and Hot Plug assert for each HDMI port
Audio support
Audio support including high bit rate (HBR) and direct
stream digital (DSD)
S/PDIF (IEC 60958-compatible) digital audio support
Supports up to four I
2
S outputs
Advanced audio mute feature
Dedicated, flexible audio output port
Super audio CD (SACD) with DSD output interface
HBR audio
Dolby® TrueHD
DTS-HD Master Audio™
General
Interrupt controller with two interrupt outputs
Standard Identification (STDI) circuit
Highly flexible 36-bit pixel output interface
Internal EDID RAM
Any-to-any 3 × 3 color space conversion (CSC) matrix
2-layer PCB design supported
100-lead LQFP_EP, 14 mm × 14 mm package
Qualified for Automotive Applications
APPLICATIONS
Projectors
Automotive
Video conferencing
HDTVs
AVR, HTiB
Soundbars
Video switches

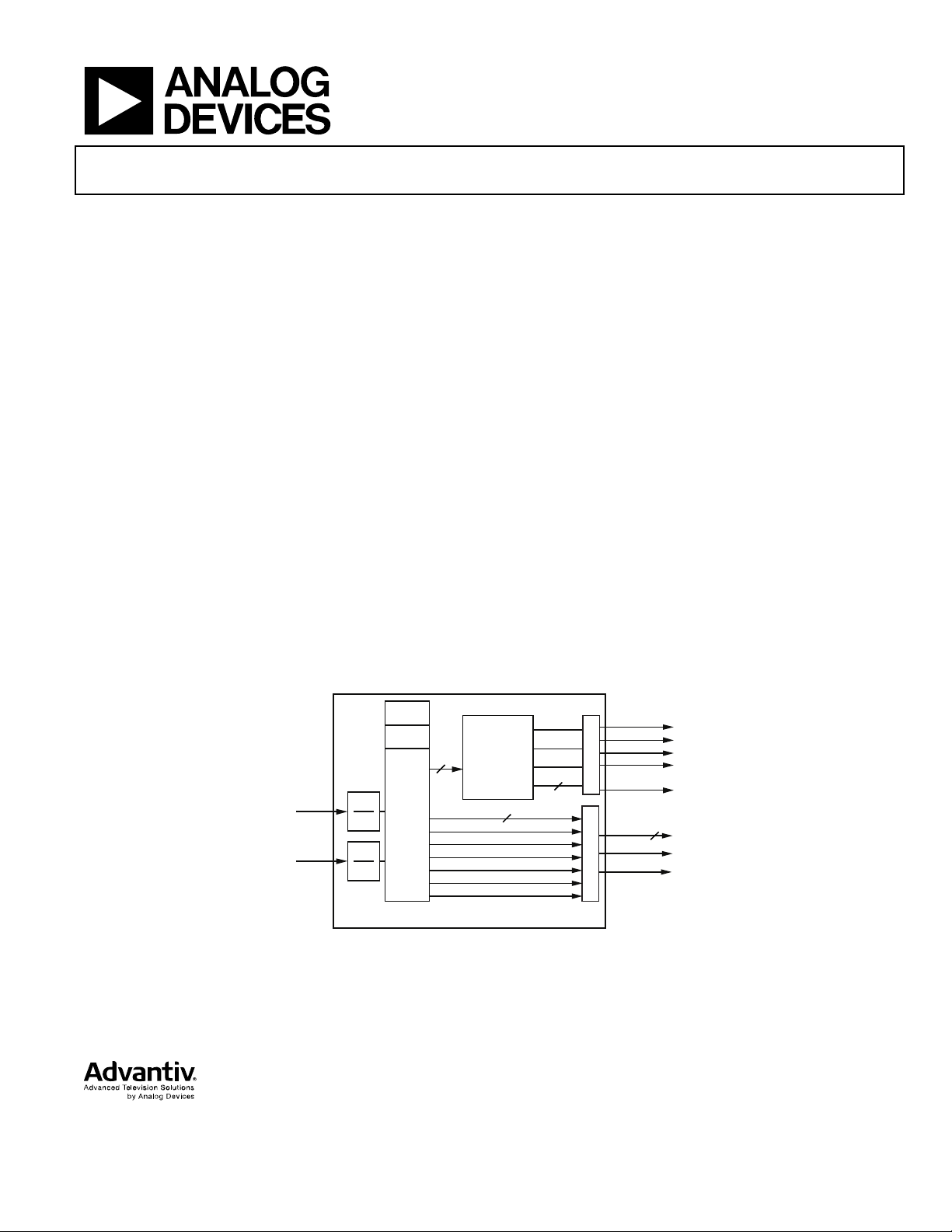

FUNCTIONAL BLOCK DIAGRAM
HS/VS
4
I
2
S
S/PDIF
HDCP
KEYS
FAST
SWITCH
TMDS
DDC
HDMI1
TMDS
DDC
HDMI2
DEEP
COLOR
HDMI Rx
ADV7612
COMPONENT
PROCESSOR
36
5
OUTPUT MUX
FIELD/DE
LLC
DATA
MCLK
HBR
DSD
SCLK
LRCLK
AUDIO
OUTPUT
MCLK
SCLK
OUTPUT MUX
36-BIT
YCbCr/RGB
HS
VS/FIELD
DE
LLC
09308-001
NOTES
1. LRCLK IS ACCESSIBLE THROUGH THE AP5 PIN.
Figure 1.
