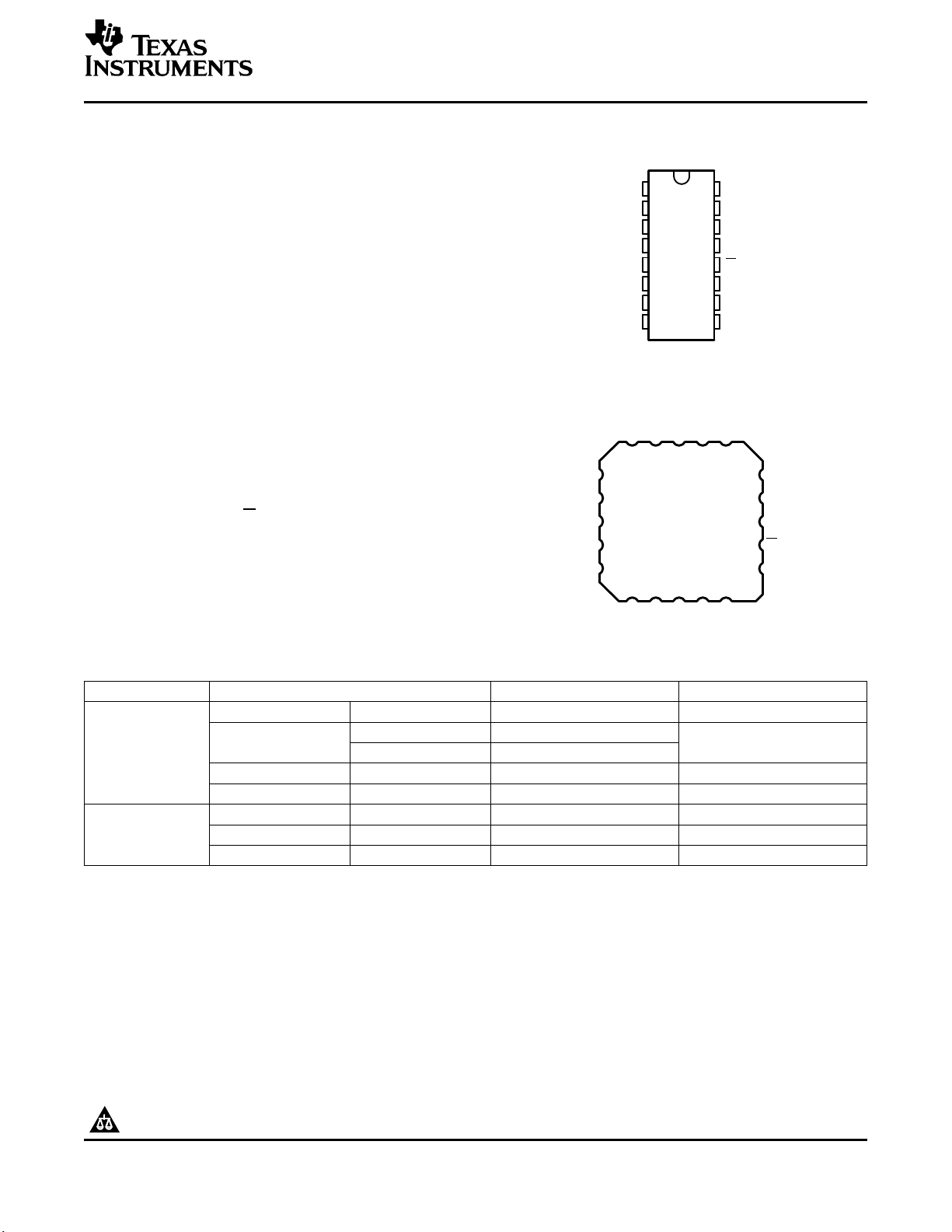

www.ti.com
FEATURES
DESCRIPTION/ORDERING INFORMATION
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
1A
1Y
1Z
G
2Z
2Y
2A
GND
V
CC
4A
4Y
4Z
G
3Z
3Y
3A
D, DB, N, NS, J, OR W PACKAGE
(TOP VIEW)
192013 2
17
18
16
15
14
1312119 10
5
4
6
7
8
4Y
4Z
NC
G
3Z
1Z
G
NC
2Z
2Y
1Y
1A
NC
V
4A
GND
NC
3A
3Y
2A
FK PACKAGE
(TOP VIEW)
CC
AM26LS31C , AM26LS31M
QUADRUPLE DIFFERENTIAL LINE DRIVER
SLLS114I – JANUARY 1979 – REVISED FEBRUARY 2006
• Meets or Exceeds the Requirements of ANSI
TIA/EIA-422-B and ITU
• Operates From a Single 5-V Supply
• TTL Compatible
• Complementary Outputs
• High Output Impedance in Power-Off
Conditions
• Complementary Output-Enable Inputs
The AM26LS31 is a quadruple complementary-output
line driver designed to meet the requirements of ANSI
TIA/EIA-422-B and ITU (formerly CCITT)
Recommendation V.11. The 3-state outputs have
high-current capability for driving balanced lines such
as twisted-pair or parallel-wire transmission lines, and
they are in the high-impedance state in the power-off
condition. The enable function is common to all four
drivers and offers the choice of an active-high or
active-low enable (G, G) input. Low-power Schottky
circuitry reduces power consumption without
sacrificing speed.
ORDERING INFORMATION
T
A
PACKAGE
(1)
ORDERABLE PART NUMBER TOP-SIDE MARKING
PDIP – N Tube AM26LS31CN AM26LS31CN
Tube AM26LS31CD
SOIC – D AM26LS31C
0 ° C to 70 ° C Tape and reel AM26LS31CDR
SOP – NS Tape and reel AM26LS31CNSR 26LS31
SSOP – DB Tape and reel AM26LS31CDBR SA31C
CDIP – J Tube AM26LS31MJB AM26LS31MJB
–55 ° C to 125 ° C LCCC – FK Tube AM26LS31MFKB AM26LS31MFKB
CFP – W Tube AM26LS31MWB AM26LS31MWB
(1) Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at
www.ti.com/sc/package.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Copyright © 1979–2006, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
