DS26LS31C, DS26LS31M
www.ti.com
SNOSBK1C –JUNE 1998–REVISED APRIL 2013
DS26LS31C/DS26LS31M Quad High Speed Differential Line Driver
Check for Samples: DS26LS31C, DS26LS31M
1
FEATURES
DESCRIPTION
The DS26LS31 is a quad differential line driver
2
• Output Skew—2.0 ns Typical
designed for digital data transmission over balanced
• Input to output delay—10 ns Typical
lines. The DS26LS31 meets all the requirements of
• Operation from Single 5V Supply
EIA Standard RS-422 and Federal Standard 1020. It
is designed to provide unipolar differential drive to
• Outputs Won't Load Line when V
CC
= 0V
twisted-pair or parallel-wire transmission lines.
• Four Line Drivers in One Package for
The circuit provides an enable and disable function
Maximum Package Density
common to all four drivers. The DS26LS31 features
• Output Short-Circuit Protection
TRI-STATE outputs and logically ANDed
• Complementary Outputs
complementary outputs. The inputs are all LS
• Meets the Requirements of EIA Standard RS-
compatible and are all one unit load.
422
• Pin Compatible with AM26LS31
• Available in Military and Commercial
Temperature Range

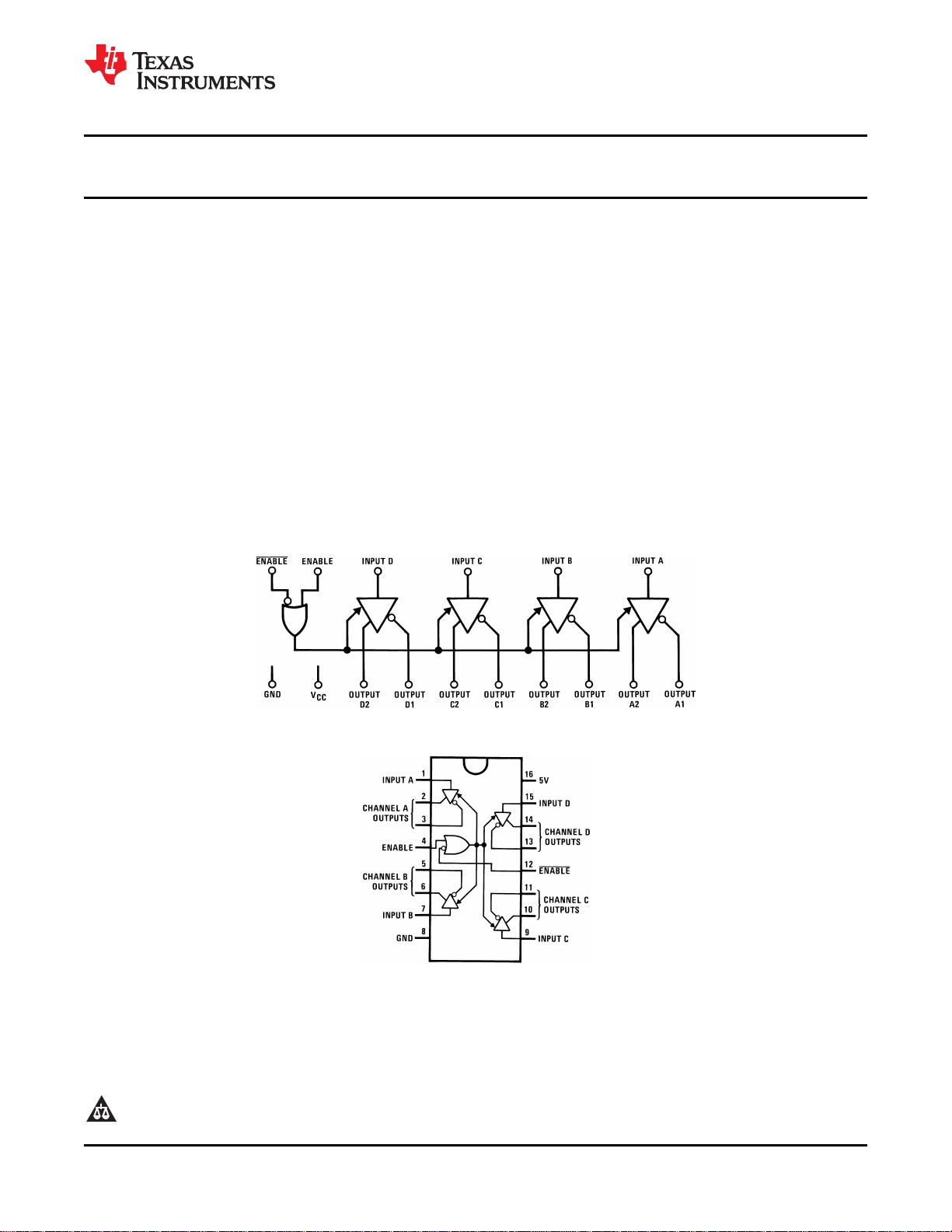

Logic and Connection Diagrams
Top View
For Complete Military Product Specifications, refer to the appropriate SMD or MDS.
Figure 1. PDIP Package
See Package D0016A or NFG0016E
See Package Numbers NAJ0020A, NFE0016A or NAD0016A
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2All trademarks are the property of their respective owners.
PRODUCTION DATA information is current as of publication date.
Copyright © 1998–2013, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
