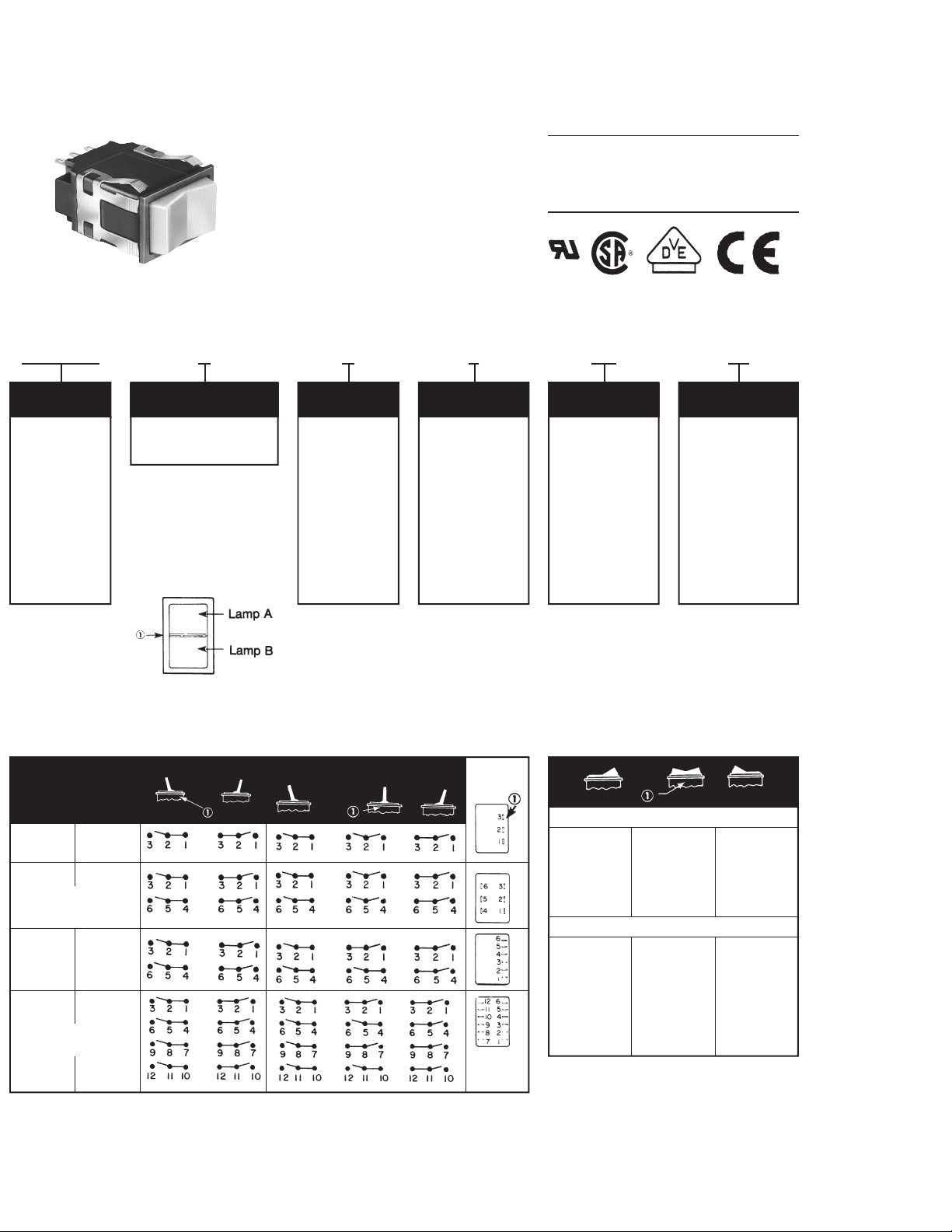

Manual Switches AML24 Series
Electronic Control Rocker
30Honeywell1SensingandControl11-800-537-6945USA1F1-815-235-6847International11-800-737-3360Canada
INCANDESCENT OR NON-LIGHTED DISPLAY
Rocker operators ordered separately.
FEATURES
1 Silver or gold contacts.
1 2 or 3 position operation.
1 UL recognized, CSA certified.
1 Lamps can be furnished installed or
ordered separately.
1 Lamp circuit independent of switch
circuit.
Electrical Data page 19
Rockers page 51
Lamps page 58
Accessories pages 56, 57
Mounting Dimensions pages 59, 62
*
*
*AML24 Series: 1 pole and
2-pole only.
AML24 ORDER GUIDE
AML24 E B A 2 AA 01
Housing Bezel Incandescent Terminal Circuitry Operating
Type Color Lamp Type Type Codes Action
AML24 E B A 2 Insert Code
letters as
shown in
Circuitry Chart
Insert Code numbers
from Operating
Action Chart
Rectangular Black No Lamp
Installed
B
6 V Lamp*
C
14 V Lamp*
E
28 V Lamp*
.110 × .020
(Solder or
Quick-Connect)
3
.025 × .025
(Printed Ckt.,
or Push-on)
Non-Lighted
AML24 F
Rectangular
1 Lamp Ckt. (A)
AML24 G
Rectangular
2 Lamp Ckts.
1 The ‘‘MICRO SWITCH’’
identification is shown
on this side of the
switch housings.
* Lamps will be installed per each lamp circuit specified in the Housing Type.
Example: AML24EBA2AA01
Rectangular non-lighted rocker switch
housing; black bezel; .110 × .020 termi-
nals; with one circuit ON and one circuit
OFF in each extreme operator position
(maintained).
CIRCUITRY
Silver Gold 2-Position 3-Position
Contacts Contacts
AA BA
AC BC
(Non-illuminated
switches only)
CA DA
CC DC
(Non-illuminated
switches only)
OPERATING ACTION
2-Position:
01
Maint. None Maint.
02
Mom. None Maint.
03
Maint. None Mom.
3-Position:
04
Maint. Maint. Maint.
05
Mom. Maint. Mom.
06
Maint. Maint. Mom.
07
Mom. Maint. Maint.
