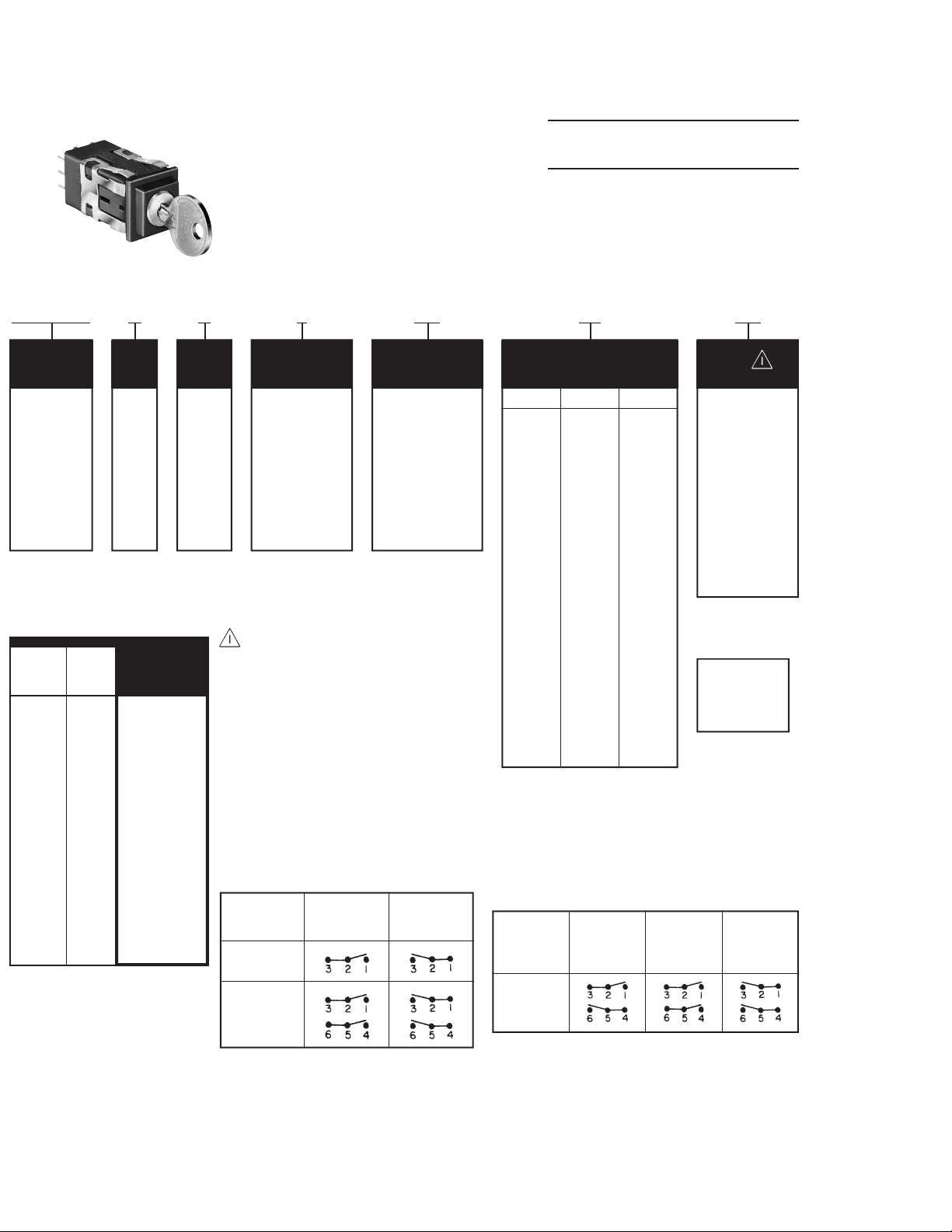

Manual Switches AML27 Series
Electronic Control Keylock
32Honeywell1SensingandControl11-800-537-6945USA1F1-815-235-6847International11-800-737-3360Canada
NON-LIGHTED FEATURES
1 Enable control of access to computer
peripherals, keyboards, point-of-sale
terminals, and security systems which
are locked when unattended; and
other locations where tampering must
be discouraged.
1 2 or 3 positions, maintained
(90° throw) and momentary action
(60° throw).
1 5-bit key combinations
Electrical Data page 19
Accessories pages 56, 57
Mounting Dimensions pages 59, 62
1 UL recognized, CSA certified.
1 Static discharge protection (up to
20 kV when grounded).
AML27 ORDER GUIDE
AML27 A B K 2 AA 21 BA
Circuitry Codes Operation Action
Housing Bezel Button Terminal (Each pole has (Key out in center position, Key
Type Color Color Type double-throw) except where noted) Combinations
AML27 A B K 2 Silver Contacts: (Two Keys
Black Black .110 × .020 AA Furnished)
Square (Solder or 1 pole
housing Quick-Connect) AC BA BL
2 pole BB BM
Non-Lighted 3 BC BN
.025 × .025 Gold Contacts: BD BP
(Printed BA BE BQ
BF BR
BG BS
BH BT
BJ BV
BK BW
Circuit or 1 pole
Push-On) BC
2 pole
CCW Center CW
21
None Maint. Maint.
22*
None Maint. Maint.
23
None Maint. Mom.
24
Maint. Maint. Maint.
25
Mom. Maint. Mom.
26**
Maint. Maint. Maint.
27***
Mom. Maint. Maint.
28***
Maint. Maint. Maint.
29†
Maint. Maint. Maint.
30†
Maint. Maint. Mom.
31††
Maint. Maint. Mom.
* Key out in both positions.
** Key out in all three positions.
*** Key out in center and CW
positions.
† Key out in center and
CCW positions.
†† Key out in CCW only.
REPLACEMENT KEYS
One key per listing.
Key
Com-
bination
Key
Code
Catalog
Listing
BA 110 30PA101-AML
BB 109 30PA102-AML
BC 108 30PA103-AML
BD 107 30PA104-AML
BE 106 30PA105-AML
BF 105 30PA106-AML
BG 104 30PA107-AML
BH 103 30PA108-AML
BJ 102 30PA109-AML
BK 101 30PA110-AML
BL 111 30PA111-AML
BM 112 30PA112-AML
BN 113 30PA113-AML
BP 114 30PA114-AML
BQ 115 30PA115-AML
BR 116 30PA116-AML
BS 117 30PA117-AML
BT 118 30PA118-AML
BV 119 30PA119-AML
BW 120 30PA120-AML
Note: These keys fit the 5-bit keylocks in
the Order Guide.
Specify different Key Combinations to ac-
quire different keys, i.e.;
AML27ABK2AA21BB and
AML27ABK2AA21BK have different keys.
AML27ABK2AA21BB and
AML27ABK3BC25BB have identical inter-
changeable keys.
Example: AML27ABK2AC28BB
Square housing; black bezel and button; .110
× .020 terminals; 2-pole double-throw; silver
contacts; 3-position maintained and key
code ‘‘BB’’.
CIRCUITRY
2-Position Switches:
Key Turned
Normal to Right
Position* (CW)
1 Pole
2 Pole
3-Position Switches (Available in 2-pole only.)
Key
Turned
to Left
(CCW)
Normal
Position*
Key
Turned to
Right (CW)
2 Pole
* Circuit remains the same with key in or out.
28 and 29 op-
erating actions
should be used
with Key Com-
binations BA,
BB, BG or BK.
