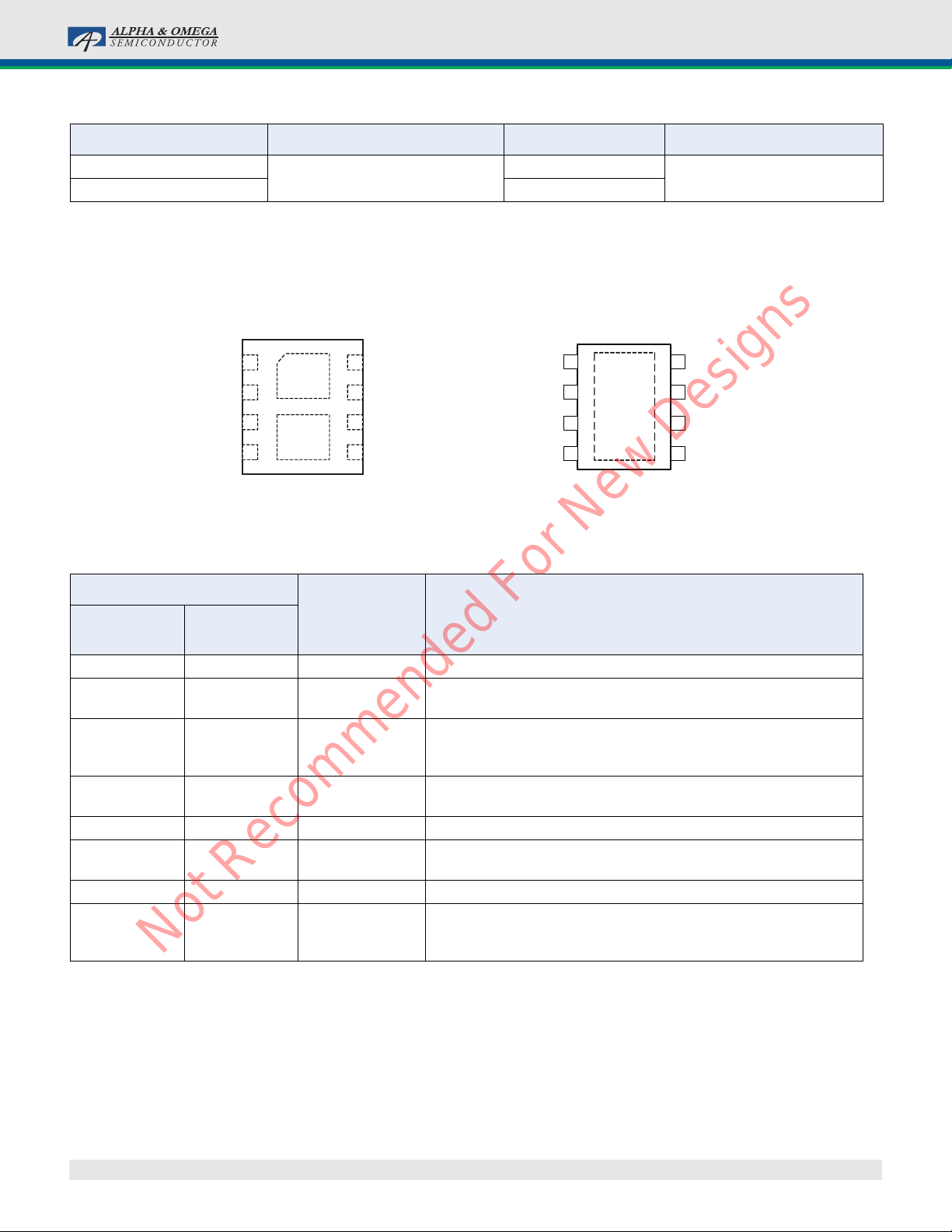

AOZ1036
Rev. 1.1 September 2010 www.aosmd.com Page 2 of 17
Ordering Information
AOS Green Products use reduced levels of Halogens, and are also RoHS compliant.
Please visit www.aosmd.com/web/quality/rohs_compliant.jsp for additional information.
Pin Configuration
Pin Description
Part Number Ambient Temperature Range Package Environmental
AOZ1036DI
-40°C to +85°C
5x4 DFN-8
Green Product
AOZ1036PI Exposed Pad SO-8
Pin Number
Pin Name Pin Function5x4 DFN-8
Exposed
Pad SO-8
1 1 PGND Power ground. Electrically needs to be connected to AGND.
2 2 VIN Supply voltage input. When VIN rises above the UVLO threshold the
device starts up.
3 3 AGND Reference connection for controller section. Also used as thermal
connection for controller section. Electrically needs to be connected
to PGND.
4 4 FB The FB pin is used to determine the output voltage via a resistor
divider between the output and GND.
5 5 COMP External loop compensation pin.
6 6 EN The enable pin is active high. Connect it to VIN if not used and do
not leave it open.
7, 8 Pad LX PWM output connection to inductor.
7, 8 NC No Connect. Pin 7 and 8 are not internally connected. Connect
these two pins externally to LX and use them for better thermal
performance.
PGND
VIN
AGND
FB
LX
LX
EN
COMP
5x4 DFN-8
(Top View)
1
2
3
4
8
7
6
5
GND
LX
1
2
3
4
PGND
VIN
AGND
FB
Exposed Pad SO-8
(Top View)
PAD
(LX)
NC
NC
EN
COMP
8
7
6
5
Not Recommended For New Designs
