AP2210
Document number: DS37517 Rev. 2 - 2
1 of 30
www.diodes.com
June 2016
© Diodes Incorporated
AP2210
300mA RF ULDO REGULATOR
Description
The AP2210 is a 300mA ULDO regulator which provides very low
noise, ultra low dropout voltage (typically 250mV at 300mA), very low
standby current (1µA maximum) and excellent power supply ripple
rejection (PSRR 75dB at 100Hz) in battery powered applications,
such as handsets, PDAs and in noise sensitive applications, such as
RF electronics.
The AP2210 also features individual logic compatible
enable/shutdown control inputs, a low power shutdown mode for
extended battery life, over current protection, over temperature
protection, as well as reversed-battery protection.
The AP2210 has 2.5V, 2.8V, 3.0V, 3.3V, 3.6V, 4.0V, 5.0V and ADJ
versions.
The AP2210 is available in space saving SOT-23-3 and SOT-23-5
packages.
Features
Up to 300mA Output Current
Excellent ESR Stability
Low Standby Current
Low Dropout Voltage: V
DROP
= 250mV at 300mA
High Output Accuracy: ±1%
Good Ripple Rejection Ability: 75dB at 100Hz and I
OUT
= 100µA
Tight Load and Line Regulation
Low Temperature Coefficient
Over Current Protection
Thermal Protection
Reverse-battery Protection
Logic-controlled Enable
Lead-Free Packages: SOT-23-3, SOT-23-5
Totally Lead-Free; RoHS Compliant (Notes 1 & 2)
Lead-Free Packages, Available in “Green” Molding Compound:
SOT-23-3, SOT-23-5
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)

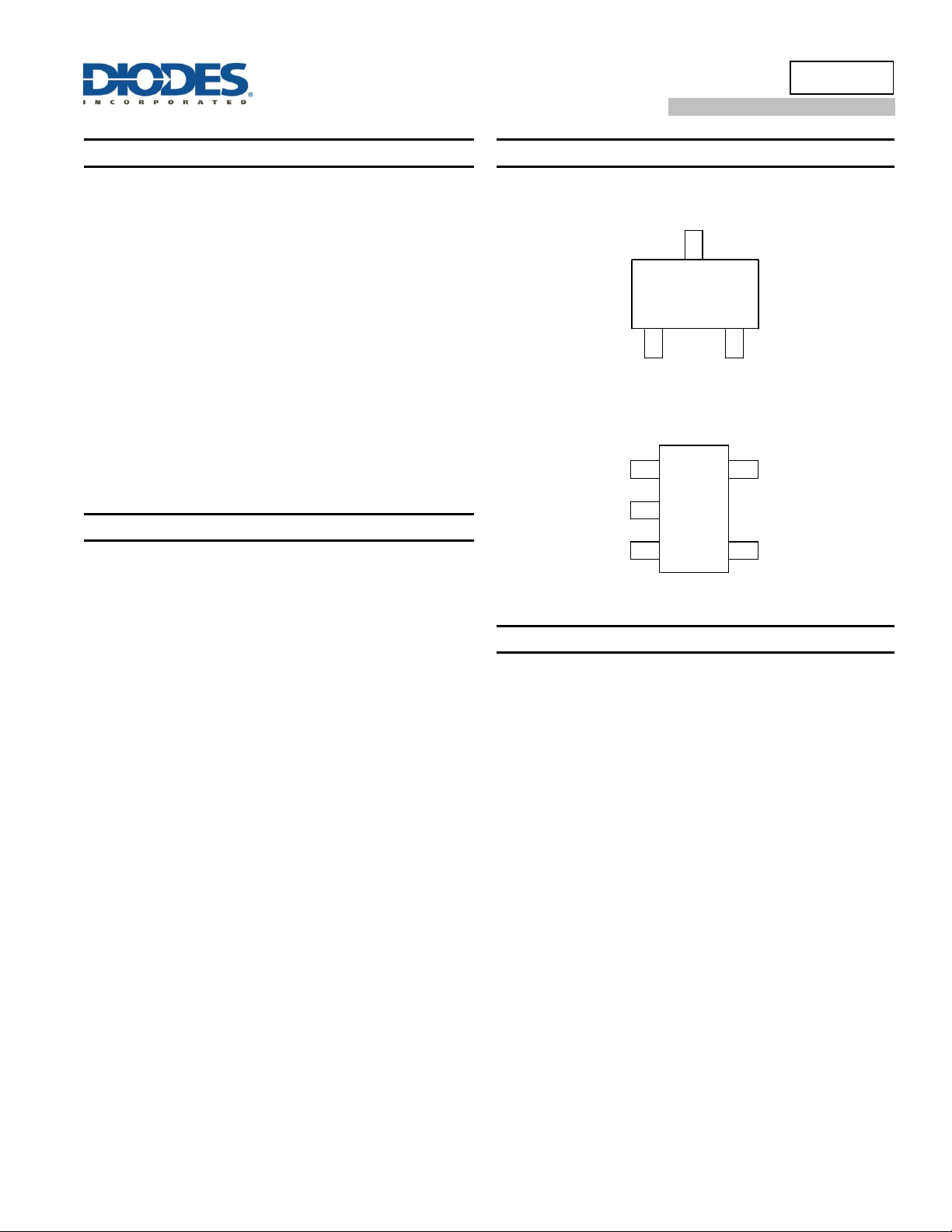

Pin Assignments
(Top View)
3
2
1
GND VOUT
VIN
SOT-23-3
(Top View)
SOT-23-5
Applications
Cellular Phones
Cordless Phones
Wireless Communicators
PDAs/Palmtops
PC Mother Board
Consumer Electronics
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
1
2
3
4
5
VIN
GND
EN
BYP/ADJ
VOUT
