AS3933 – Demo Kit Manual
3D Low Frequency Wakeup Receiver
www.austriamicrosystems.com Revision 1.00 4 - 12
How to easily get started with the AS3933 demo kit?
• Connect the +9V DC Power Supply “F” for the 125 kHz Wakeup Transmitter.
• Start to transmit Wakeup Patterns via AUTO “E” or PATTERN “B”.
• Insert the +3V Battery at “H” for the AS3933 Demoboard.
• Turn on the AS3933 Demoboard via the ON/OFF – switch “C”. When turning on the boards all
indication-LEDs flash up once.
• As soon as the AS3933 Demoboard receives a Wakeup Pattern, the RSSI LEDs flash up for 0.5s and
show the actual Received Signal Strength. At the same time the X,Y or Z LED flash up and indicates
which channel got the strongest signal.
Install the GUI
1. Execute the AS3933_EvalSW.msi
2. Follow the installation guide
3. Run the GUI AS3933_EvalSW.exe
Note: Before connecting the AS3933 Demoboard with the USB-cable press TUNE “A” and FALSE WAKEUP
“B” at the same time. This is necessary to save current during the normal operation mode.
Before connecting the 125 kHz Wakeup Transmitter Board with the USB cable STOP “D” transmitting Wakeup
Pattern.

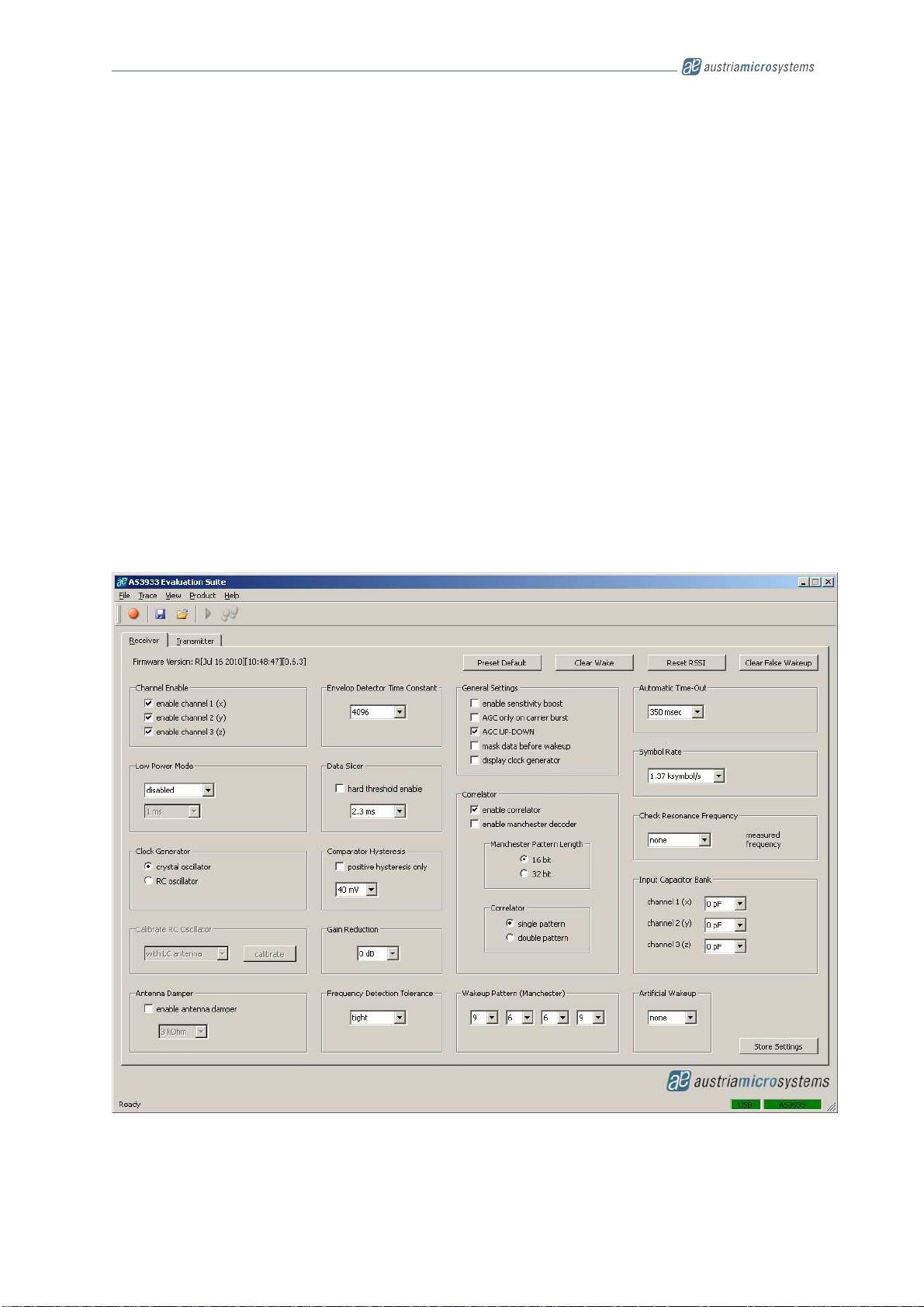

Figure 4: Graphical User Interface of AS3933 Demo Kit
