AT24C01B-PU 其他数据使用手册 - ATMEL（爱特美尔）
制造商:
ATMEL（爱特美尔）
分类:
EEPROM芯片
封装:
DIP-8
描述:
ATMEL AT24C01B-PU EEPROM, 1 Kbit, 128 x 8位, 1 MHz, 串行, DIP, 8 引脚
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
导航目录
AT24C01B-PU数据手册
Page:
of 25 Go
若手册格式错乱，请下载阅览PDF原文件
1
2
3
5
4
SCL
GND
SDA
WP
VCC
1
2
3
4
8
7
6
5
A0
A1
A2
GND
VCC
WP
SCL
SDA
1
2
3
4
8
7
6
5
VCC
WP
SCL
SDA
A0
A1
A2
GND
VCC
WP
SCL
SDA
A0
A1
A2
GND
1
2
3
4
8
7
6
5
1
2
3
4
8
7
6
5
A0
A1
A2
GND
VCC
WP
SCL
SDA
1
2
3
4
8
7
6
5
A0
A1
A2
GND
VCC
WP
SCL
SDA

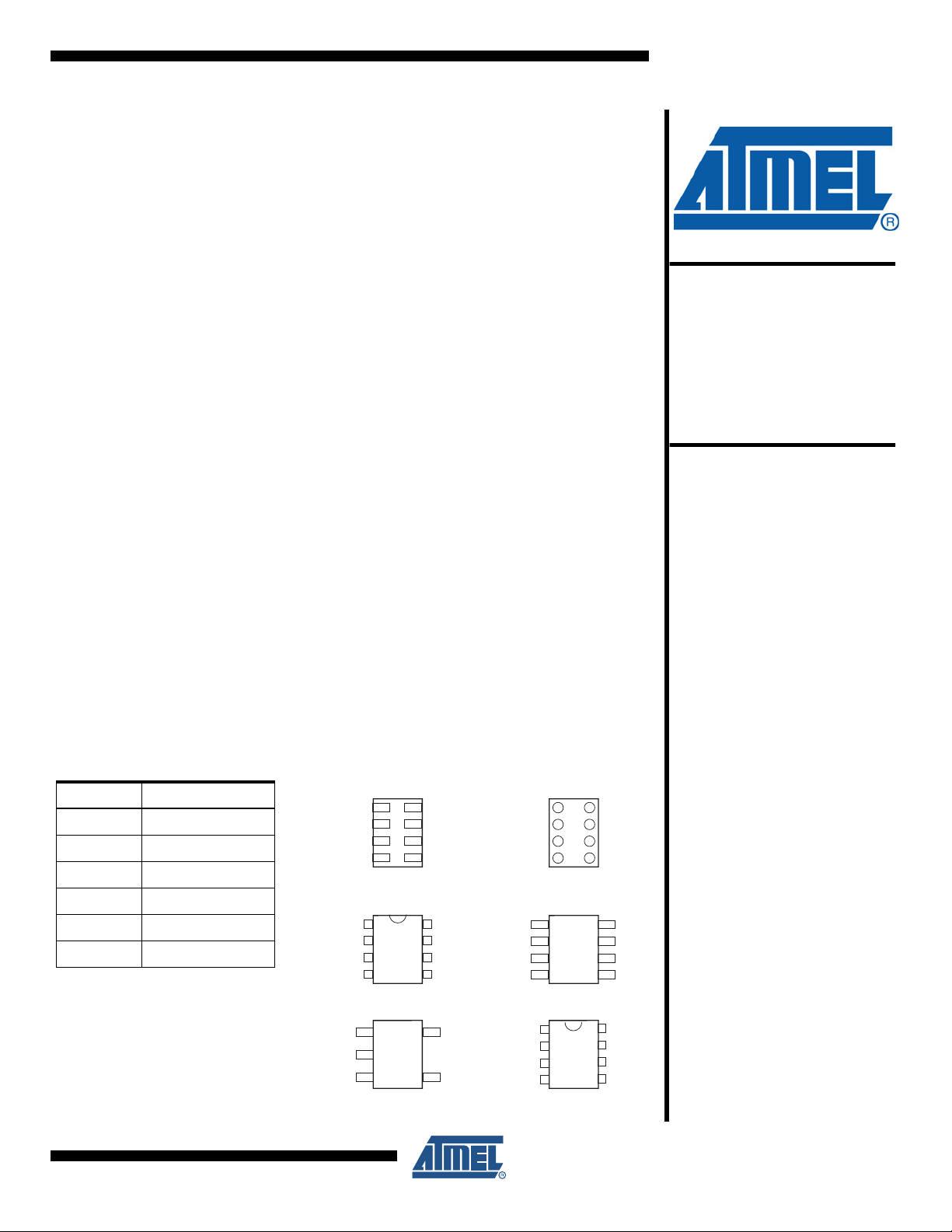

8-lead SOIC
8-ball dBGA28-lead Ultra Thin Mini-MAP (MLP 2x3)
8-lead PDIP
5-lead SOT23
Bottom View Bottom View
8-lead TSSOP
Features
• Low-voltage and Standard-voltage Operation
–1.8(V
CC
=1.8Vto5.5V)
• Internally Organized 128 x 8 (1K)
• Two-wire Serial Interface
• Schmitt Trigger, Filtered Inputs for Noise Suppression
• Bidirectional Data Transfer Protocol
• 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) Compatibility
• Write Protect Pin for Hardware Data Protection
• 8-byte Page (1K) Write Modes
• Partial Page Writes Allowed
• Self-timed Write Cycle (5 ms max)
• High-reliability
– Endurance: 1 Million Write Cycles
– Data Retention: 100 Years
• 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead Ultra Thin Mini-MAP (MLP 2x3), 5-lead SOT23,
8-lead TSSOP and 8-ball dBGA2 Packages
• Lead-free/Halogen-free
• Die Sales: Wafer Form and Tape and Reel
Description
The AT24C01B provides 1024 bits of serial electrically erasable and programmable
read-only memory (EEPROM) organized as 128 words of 8 bits each. The device is
optimized for use in many industrial and commercial applications where low-power
and low-voltage operation are essential. The AT24C01B is available in space-saving
8-lead PDIP, 8-lead JEDEC SOIC, 8-lead Ultra Thin Mini-MAP (MLP 2x3), 5-lead
SOT23, 8-lead TSSOP, and 8-ball dBGA2 packages and is accessed via a Two-wire
serial interface. In addition, the AT24C01B is available in 1.8V (1.8V to 5.5V) version.
Note: For use of 5-lead SOT23, the soft-
ware A2, A1, and A0 bits in the
device address word must be set
to zero to properly communicate.
Table 0-1. Pin Configuration
Pin Name Function
A0 - A2 Address Inputs
SDA Serial Data
SCL Serial Clock Input
WP Write Protect
GND Ground
VCC Power Supply
Two-wire
Serial EEPROM
1K (128 x 8)
AT24C01B
5156E–SEEPR–10/08
Not Recommended
for New Design.
Replaced by AT24C01C.
