VCC
WP
SCL
SDA
NC
NC
NC
GND
1
2
3
4
8
7
6
5
1
2
3
4
8
7
6
5
NC
NC
NC
GND
VCC
WP
SCL
SDA
1
2
3
4
8
7
6
5
VCC
WP
SCL
SDA
NC
NC
NC
GND
1
2
3
4
8
7
6
5
NC
NC
NC
GND
VCC
WP
SCL
SDA
1
2
3
5
4
SCL
GND
SDA
WP
VCC
1
2
3
4
8
7
6
5
NC
NC
NC
GND
VCC
WP
SCL
SDA

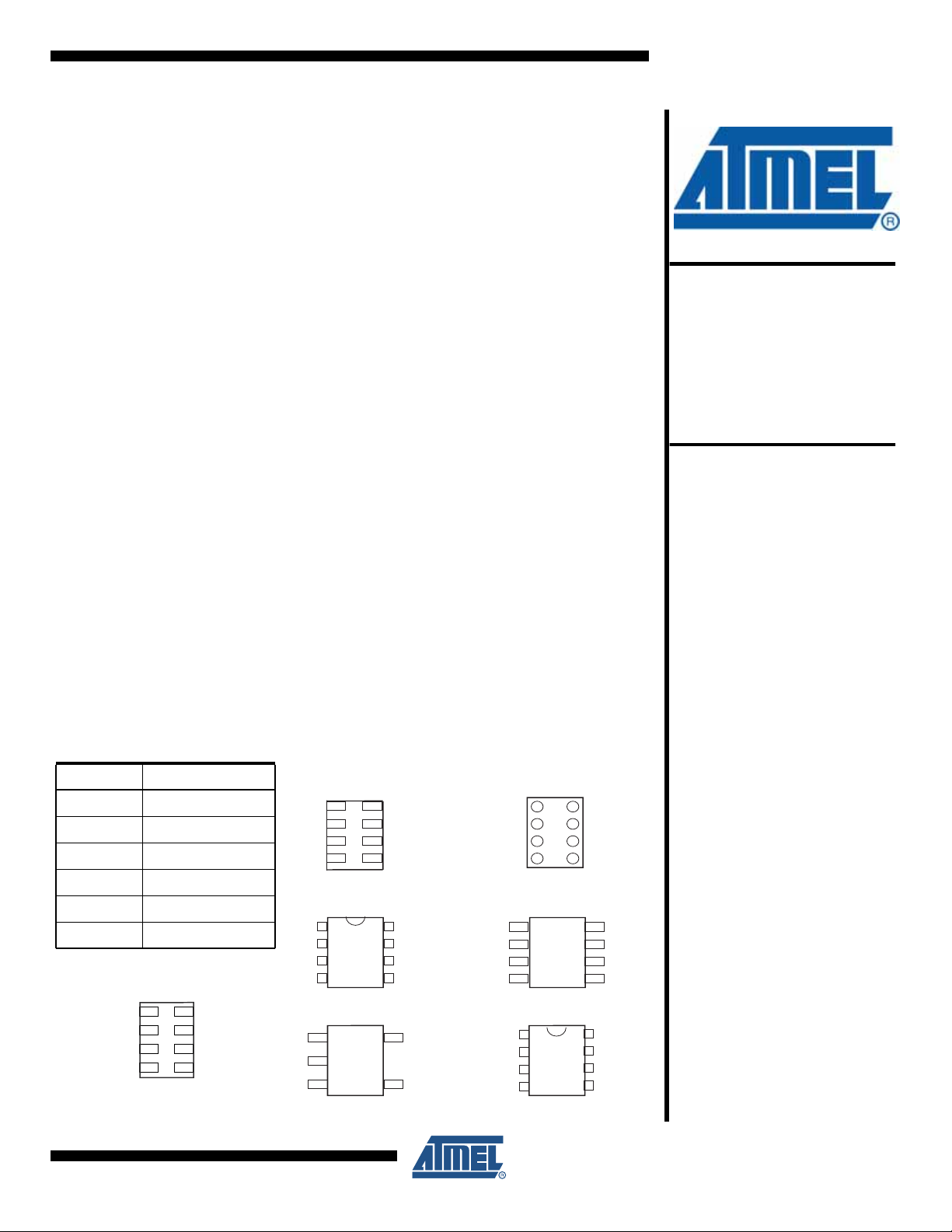

8-lead SOIC
8-ball dBGA2
8-lead Ultra Thin
Mini-MAP (MLP 2x3)
8-lead PDIP5-lead SOT23
Bottom View Bottom View
8-lead TSSOP
1. Features
• Low-voltage and Standard-voltage Operation
–1.8(V
CC
=1.8Vto5.5V)
• Internally Organized 2048 x 8 (16K)
• Two-wire Serial Interface
• Schmitt Trigger, Filtered Inputs for Noise Suppression
• Bidirectional Data Transfer Protocol
• 1 MHz (5V, 2.5V), 400 kHz (1.8V) Compatibility
• Write Protect Pin for Hardware Data Protection
• 16-byte Page (16K) Write Modes
• Partial Page Writes Allowed
• Self-timed Write Cycle (5 ms max)
• High-reliability
– Endurance: 1 Million Write Cycles
– Data Retention: 100 Years
• 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead Ultra-Thin Mini-MAP (MLP 2x3), 5-lead SOT23,
8-lead Ultra Lead Frame Land Grid Array (ULA), 8-lead TSSOP and 8-ball dBGA2
Packages
• Lead-free/Halogen-free
• Die Sales: Wafer Form, Tape and Reel, and Bumped Wafers
2. Description
The AT24C16B provides 16384 bits of serial electrically erasable and programmable
read-only memory (EEPROM) organized as 2048 words of 8 bits each. The device is
optimized for use in many industrial and commercial applications where low-power
and low-voltage operation are essential. The AT24C16B is available in space-saving
8-lead PDIP, 8-lead JEDEC SOIC, 8-lead Ultra Thin Mini-MAP (MLP 2x3), 5-lead
SOT23, 8-lead Ultra Lead Frame Land Grid Array (ULA), 8-lead TSSOP, and 8-ball
dBGA2 packages and is accessed via a Two-wire serial interface. In addition, the
AT24C16B is available in 1.8V (1.8V to 5.5V) version.
Table 2-1. Pin Configuration
Pin Name Function
NC No Connect
SDA Serial Data
SCL Serial Clock Input
WP Write Protect
GND Ground
VCC Power Supply
Two-wire
Serial EEPROM
16K (2048 x 8)
AT24C16B
Not Recommeded
for New Design.
Replaced by
AT24C16C.
5175E–SEEPR–3/09
1
2
3
4
8
7
6
5
VCC
WP
SCL
SDA
NC
NC
NC
GND
8-lead Ultra Lead Frame
Land Grid Array (ULA)
Bottom View
