8717B–SEEPR–6/10
Atmel AT24C32D/64D
1. Absolute Maximum Ratings*

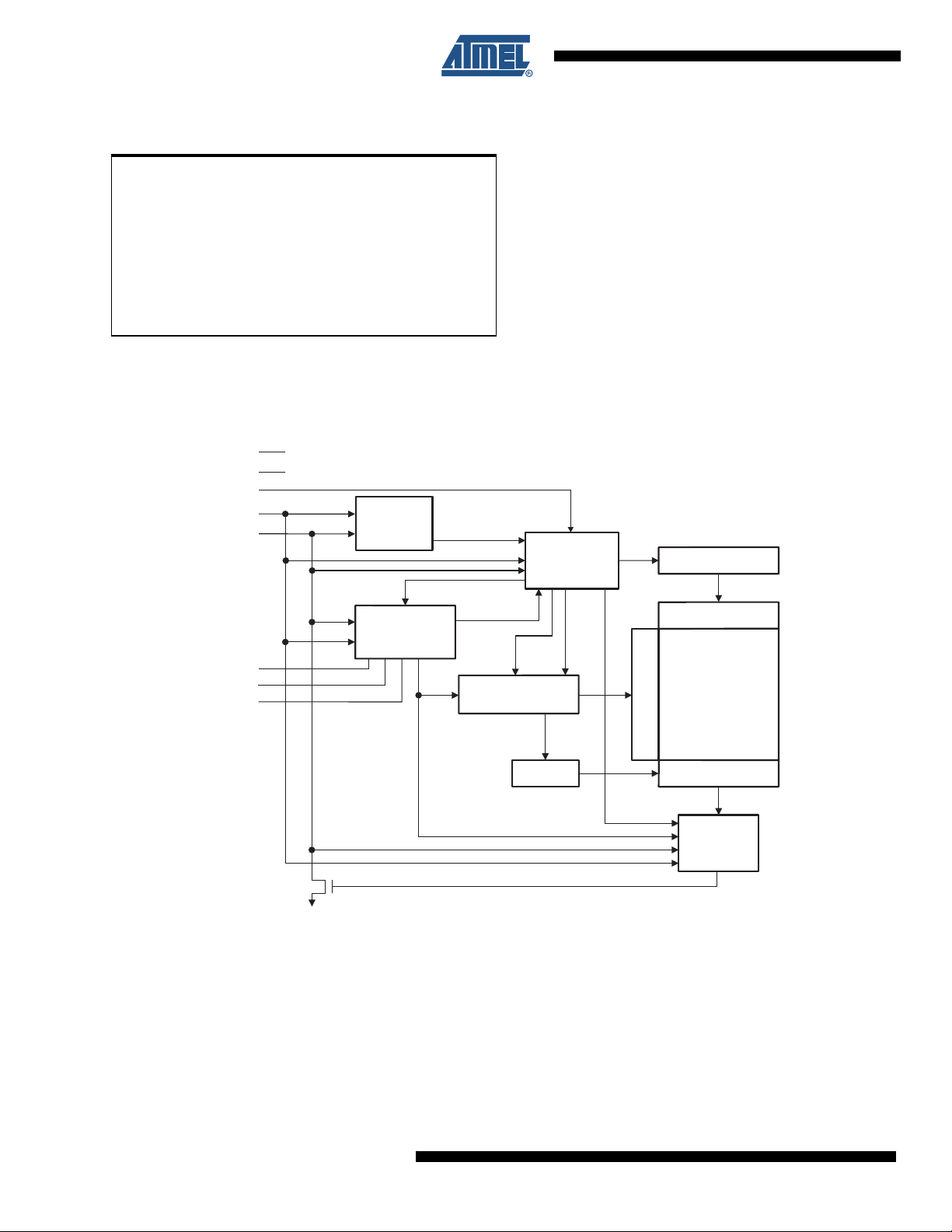

Figure 1-1. Block Diagram
Operating Temperature ............................... -55 to +125C
*NOTICE: Stresses beyond those listed under
“Absolute Maximum Ratings” may cause
permanent damage to the device. This is a
stress rating only and functional operation
of the device at these or any other
conditions beyond those indicated in the
operational sections of this specification is
not implied. Exposure to absolute maximum
rating conditions for extended periods may
affect device reliability.
Storage Temperature .................................. -65 to +150C
Voltage on Any Pin
with Respect to Ground................................. -1.0 to +7.0V
Maximum Operating Voltage.................................... 6.25V
DC Output Current .................................................. 5.0mA
START
STOP
LOGIC
VCC
GND
WP
SCL
SDA
A
2
A
1
A
0
SERIAL
CONTROL
LOGIC
EN
H.V. PUMP/TIMING
EEPROM
DATA RECOVERY
SERIAL MUX
X DEC
D
OUT
/ACK
LOGIC
COMP
LOAD
INC
DATA WO R D
ADDR/COUNTER
Y DEC
R/W
D
OUT
D
IN
LOAD
DEVICE
ADDRESS
COMPARATOR
