1
Features
• Low-voltage and Standard-voltage Operation
– 2.7 (V
CC
= 2.7 to 5.5V)
– 1.8 (V
CC
= 1.8 to 5.5V)
• Low-power Devices (I
SB
= 6 µA at 5.5V) Available
• Internally Organized 8192 x 8
• 2-Wire Serial Interface
• Schmitt Trigger, Filtered Inputs for Noise Suppression
• Bi-directional Data Transfer Protocol
• 400 kHz Clock Rate
• Write Protect Pin for Hardware Data Protection
• 32-Byte Page Write Mode (Partial Page Writes Allowed)
• Self-Timed Write Cycle (5 ms max)
• High Reliability
– Endurance: 1 Million Write Cycles
– Data Retention: 100 Years
• Lead-free/Halogen-free Devices Available
• 8-lead PDIP, 8-lead JEDEC SOIC and 8-lead TSSOP Packages
• Die Sales: Wafer Form, Waffle Pack, and Bumped Wafers
Description
The AT24C64B provides 65,536 bits of serial electrically erasable and programmable
read only memory (EEPROM) organized as 8192 words of 8 bits each. The device’s
cascadable feature allows up to 8 devices to share a common 2-wire bus. The device
is optimized for use in many industrial and commercial applications where low power
and low voltage operation are essential. The AT24C64B is available in space saving
8-lead PDIP, 8-lead JEDEC SOIC and 8-lead TSSOP packages and is accessed via a
2-wire serial interface. In addition, the entire family is available in 2.7V (2.7 to 5.5V)
and 1.8V (1.8 to 5.5V) versions.
2-Wire
Serial EEPROM
64K (8192 x 8)
AT24C64B
3350D–SEEPR–05/05
2-Wire, 32K
Serial E
2
PROM

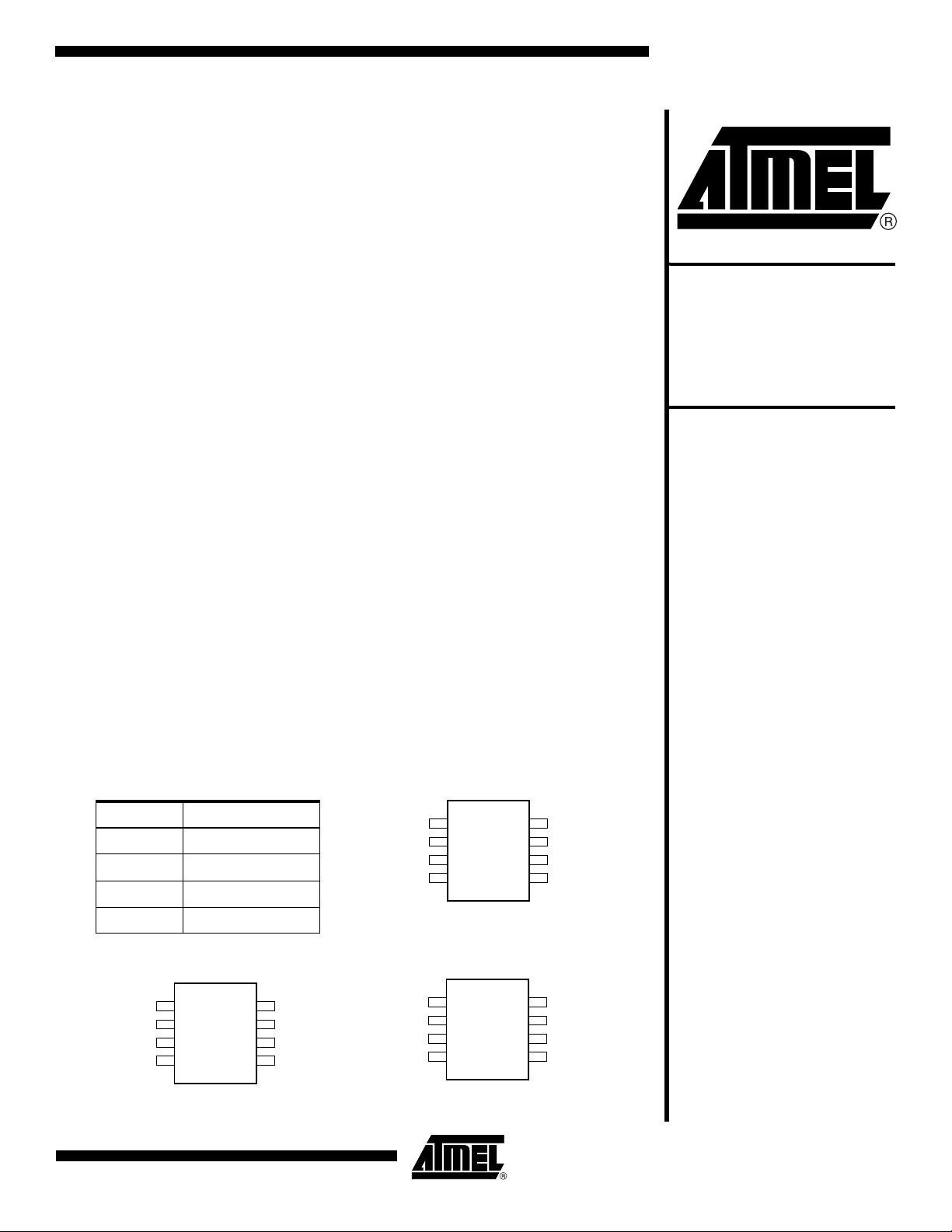

Pin Configurations
Pin Name Function
A0 - A2 Address Inputs
SDA Serial Data
SCL Serial Clock Input
WP Write Protect
8-lead SOIC
1
2
3
4
8
7
6
5
A0
A1
A2
GND
VCC
WP
SCL
SDA
8-lead PDIP
1
2
3
4
8
7
6
5
A0
A1
A2
GND
VCC
WP
SCL
SDA
8-lead TSSOP
1
2
3
4
8
7
6
5
A0
A1
A2
GND
VCC
WP
SCL
SDA
