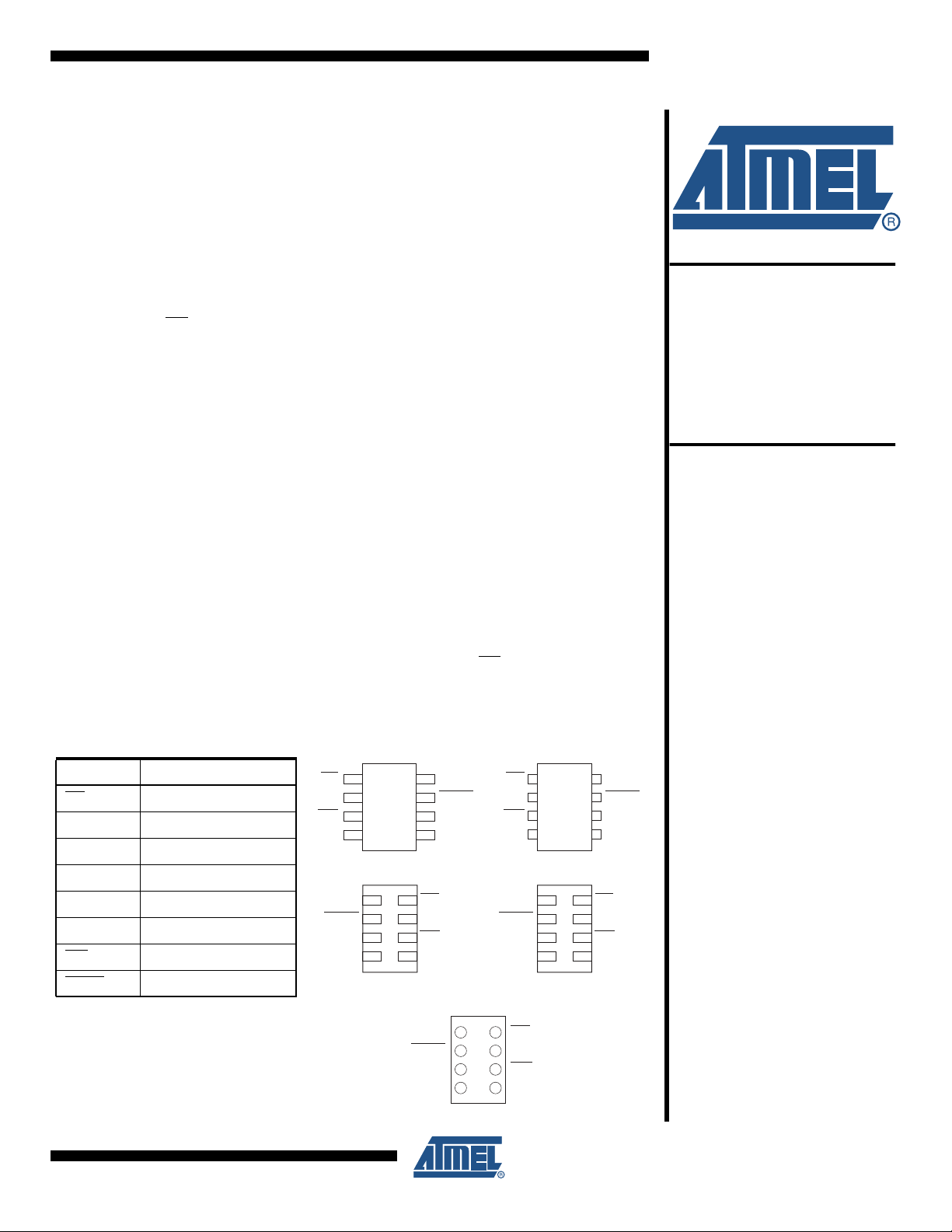

Features
• Serial Peripheral Interface (SPI) Compatible
• Supports SPI Modes 0 (0,0) and 3 (1,1)
– Datasheet Describes Mode 0 Operation
• Low-voltage and Standard-voltage Operation
– 1.8 (V
CC
= 1.8V to 5.5V)
• 20MHz Clock Rate (5V)
• 32-byte Page Mode
• Block Write Protection
– Protect 1/4, 1/2, or Entire Array
• Write Protect (WP) Pin and Write Disable Instructions for Both Hardware and Software
Data Protection
• Self-timed Write Cycle (5ms max)
• High Reliability
– Endurance: One Million Write Cycles
– Data Retention: 100 Years
• Green (Pb/Halide-free/RoHS Compliant) Packaging Options
• Die Sales: Wafer Form, Tape and Reel, and Bumped Wafers
Description
The Atmel
®
AT25320B/640B provides 32768-/65536-bits of serial electrically-erasable
programmable read-only memory (EEPROM) organized as 4096/8192 words of 8-bits
each. The device is optimized for use in many industrial and commercial applications
where low-power and low-voltage operation are essential. The AT25320B/640B is
available in space-saving 8-lead JEDEC SOIC, 8-lead UDFN, 8-lead XDFN, 8-lead
TSSOP, and 8-ball VFBGA packages.
The AT25320B/640B is enabled through the Chip Select pin (CS) and accessed via a
three-wire interface consisting of Serial Data Input (SI), Serial Data Output (SO), and
Serial Clock (SCK). All programming cycles are completely self-timed, and no sepa-
rate erase cycle is required before write.
Table 0-1. Pin Configuration
Pin Name Function
CS Chip Select
SCK Serial Data Clock
SI Serial Data Input
SO Serial Data Output
GND Ground
VCC Power Supply
WP Write Protect
HOLD Suspends Serial Input
V
CC
HOLD
SCK
SI
CS
SO
WP
GND
4
3
2
1
5
6
7
8
8-lead UDFN
Bottom View
CS
SO
WP
GND
1
2
3
4
8
7
6
5
8-lead SOIC
V
CC
HOLD
SCK
SI
8-lead TSSOP
1
2
3
4
8
7
6
5
CS
SO
WP
GND
V
CC
HOLD
SCK
SI
V
CC
HOLD
SCK
SI
CS
SO
WP
GND
1
2
3
4
8
7
6
5
8-ball VFBGA
Bottom View
V
CC
HOLD
SCK
SI
CS
SO
WP
GND
4
3
2
1
5
6
7
8
8-lead XDFN
Bottom View
SPI Serial
EEPROMs
32K (4096 x 8)
64K (8192 x 8)
Atmel
AT25320B
AT25640B
8535F–SEEPR–6/10
