Embest Mini6245 Processor Card

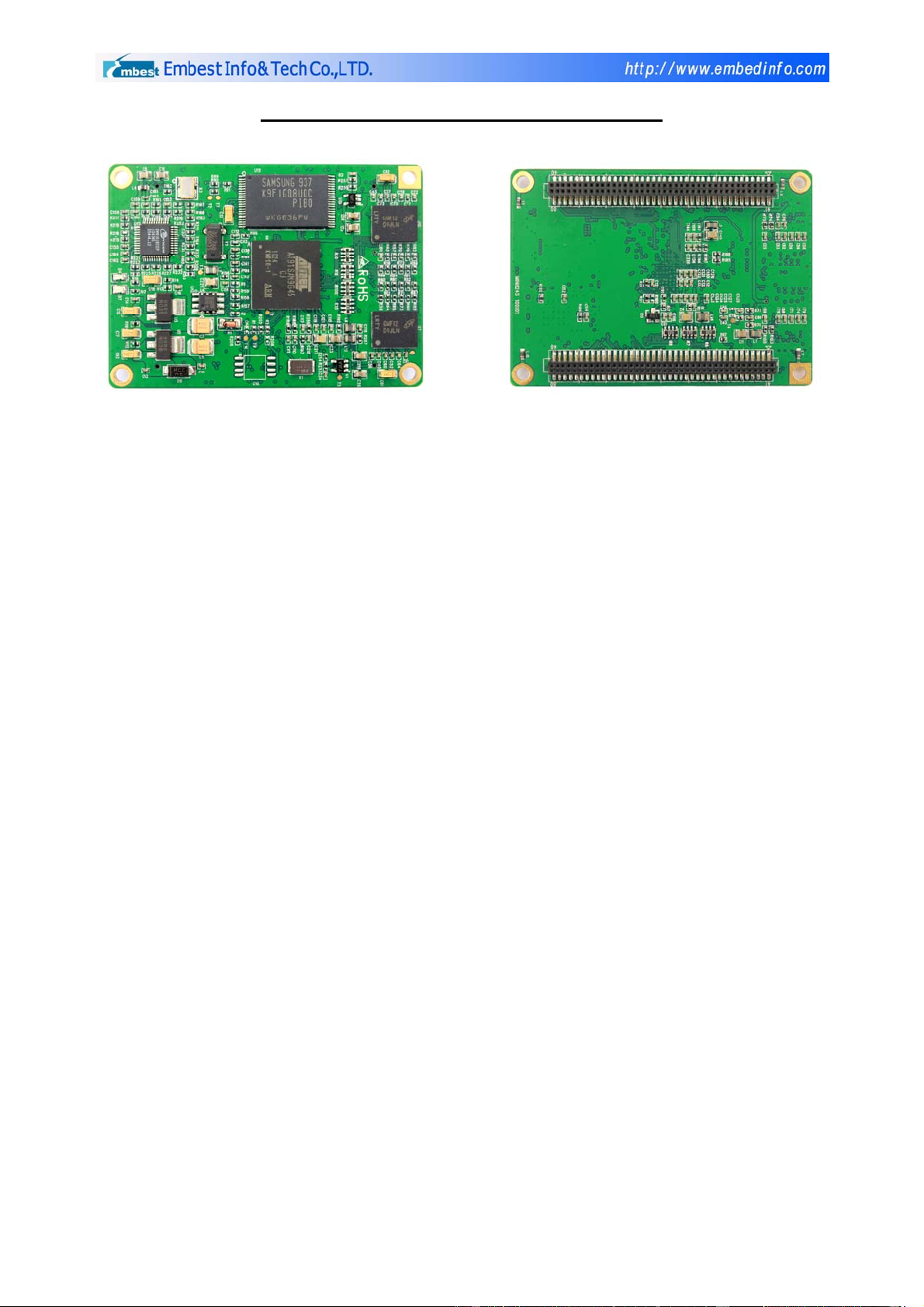

Mini6245 Top-view Mini6245 Bottom-view
Features
y Dimension: 70mm x 49.9mm
y Working temperature: -10℃~+70℃
y Atmel AT91SAM9G45 ARM926EJ-S Core Microprocessor (compatible with AT91SAM9M10)
- 32 KBytes Data Cache, 32 KBytes Instruction Cache, MMU
- One 64-kbyte internal SRAM and One 64-kbyte internal ROM
- Can work at up to 400MHz
y External Memory
- 128Mbyte DDR2 SDRAM
- 128Mbyte NAND Flash
- 1Kbit EEPROM
y 10/100M Ethernet
y One power indicator
y One system working status indicator
y Two 1.27mm pitch dual row 80-pin female headers (UART 0-3, Debug serial port, Ethernet,
USB Host, 2 SPI, 2 TWI, SDIO, PWM, AC97, LCD, Touch Screen, JTAG and all IOs are led
out via the two connectors.)
General Description
Embest Mini6245 processor card is a compact ARM embedded controller based on 400MHz Atmel
AT91SAM9G45 ARM 926EJ-S microcontroller which is designed to provide a high performance
processor solution with a high flexibility for general and multimedia oriented applications.
The Mini6245 processor card has external 128MByte DDR2 SDRAM, 128MByte Nand Flash and
1Kbit EEPROM on board and many peripherals like UART, Ethernet, USB, LCD, Touch screen,
SPI, TWI, SDIO, PWM, AC97, JTAG and all IOs are brought out by two 1.27mm space dual row
