5
ATA5577M1330C-PPMY [DATASHEET]
9333B–RFID–05/14
5. Measurement Assembly
All measurements are done with commercial RFID reader/writer supplied by “GIS”.

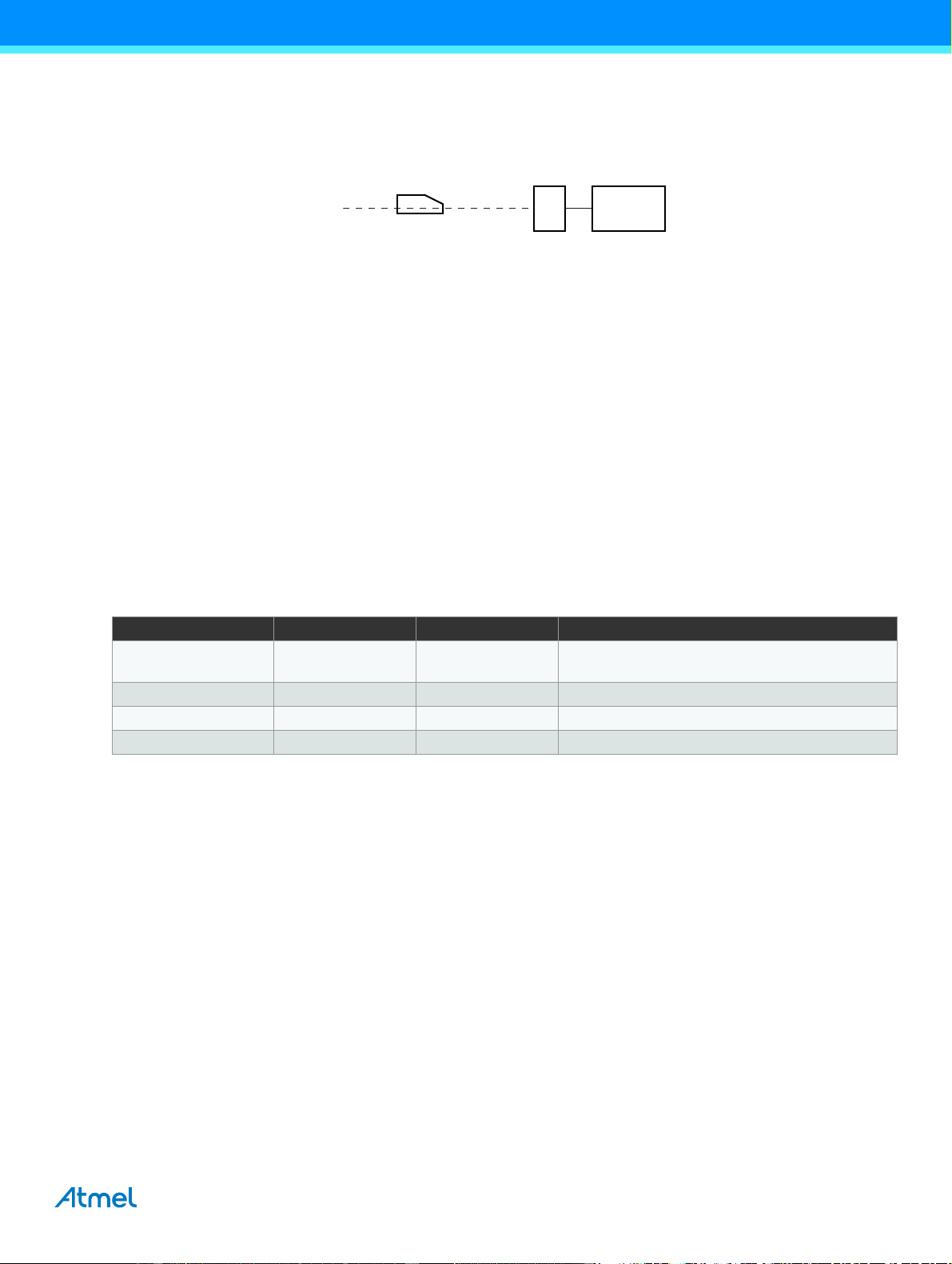

Figure 5-1. Testing Application
Reader type: TS-RW38 plus USB EA
Antenna type: TS-A50-K1000, circular antenna, inner diameter 51mm, L = 1.08mH
6. Ordering Information
6.1 Available Order Codes
ATA5577M1330C-PPMY
6.2 Configuration on Delivery
After Atmel
®
completes production, the transponder is configured as shown in Table 6-1. Unlike the ATA5577M1330C chip,
the AFE option setup (block 3, page 1) is adjusted to the transponder operating mode suitable for most applications.
All blocks in page 0 are not locked and may be re-programmed by the customer. Block 0 in page 0 is the configuration
register and is pre-programmed to the Atmel default operating mode: Manchester modulation with a data rate of RF/32. 2
data blocks (block 1 and block 2 in page 0) are transferred. The data of this 2 blocks is set to 0.
ATA5577-PPMY
External
antenna
Reader
Table 6-1. Configuration on Delivery State
Block Address Value Comment
AFE option setup block 3, page 1 0x 6DC0 0000
Soft modulation 2 pulses, clamp high, modulation
low
Configregister block 0, page 0 0x 0008 8040 RF/32, Manchester, Maxblock = 2
User data block 1 block 1, page 0 0x 0000 0000 All ‘0’
User data block 2 block 2, page 0 0x 0000 0000 All ‘0’
