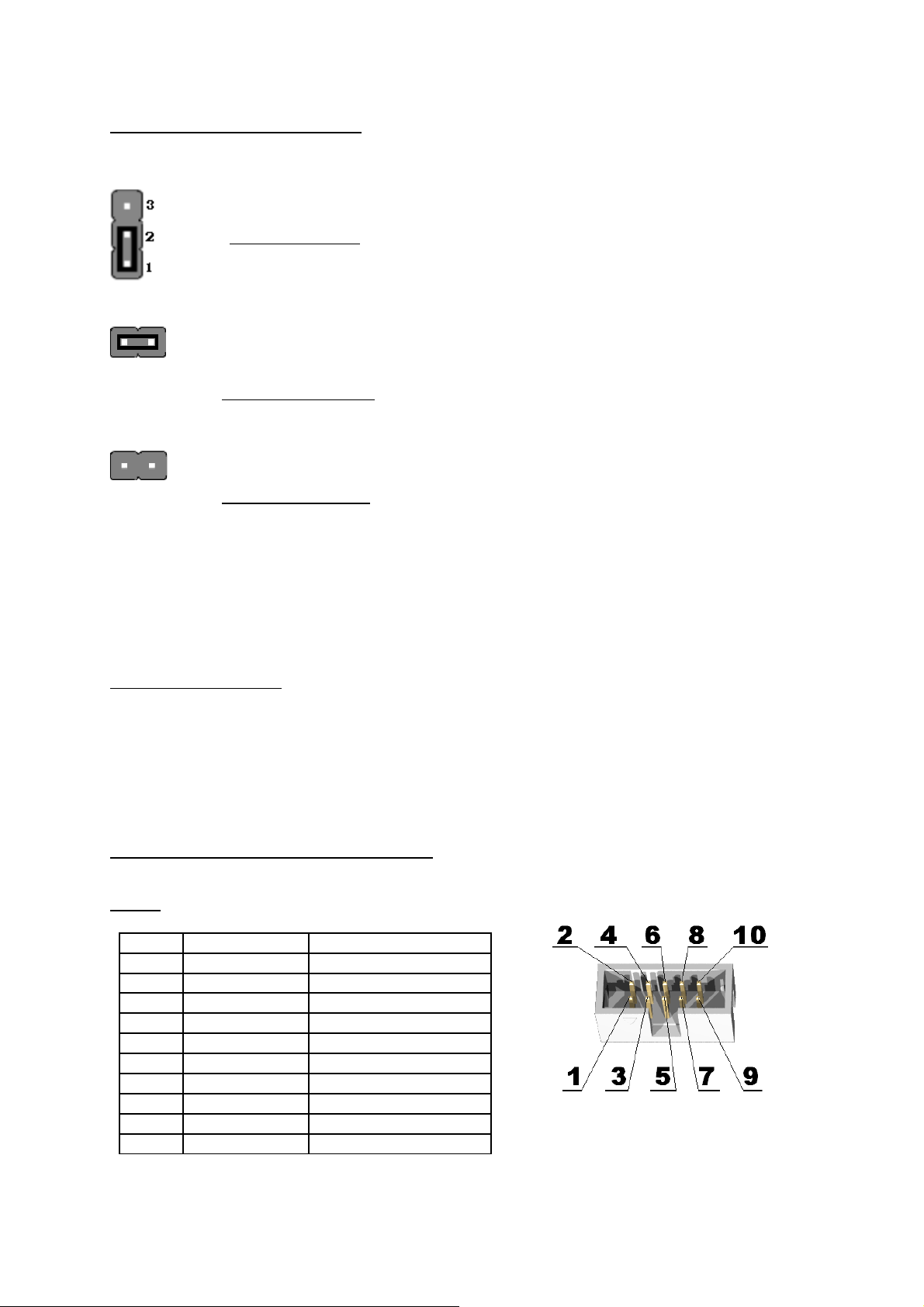

JUMPER DESCRIPTION
J1
When 1-2 are shorted – RTS is connected to terminal pin RTS/DTR.
When 2-3 are shorted – DTR is connected to terminal pin RTS/DTR.
Default state is 1-2.
LED_J
When this jumper is open – LED is not connected.
When this jumper is closed – LED is connected to pin1 (T0/PB0) of the
Microcontroller.
Default state is closed.
3.3V
When this jumper is open – LM317 output is 5V DC.
When this jumper is closed – LM317 output is 3.3V DC.
Default state is open.
WARNINGS!!!
1. The 3.3V jumper selects the power voltage to be 5V (open) or 3.3V (closed).
MAX232 can operate only at 5V power supply so if you are working with 3.3V you should replace it
with MAX3232 which works at 3.3V power supply.
2. If you want to operate with 3,3V power supply, remove R6 resistor.
INPUT/OUTPUT
Status Led with name LED (red) – this led is connected to PIN1 ( T0 / PB0 ) via
jumper LED_J.
User button with name BUT - connected to PIN5 (SS / PB4 ).
Reset button with name RST - connected to PIN9 (RESET).
CONNECTOR DESCRIPTIONS
ICSP
PIN # Signal Name Functionality
1 MOSI MOSI / PB5
2 VCC +5V DC
3 Not connected -
4 GND Ground
5 RST RESET
6 GND Ground
7 SCK SCK / PB7
8 GND Ground
9 MISO MISO / PB6
10 GND Ground
Page6
