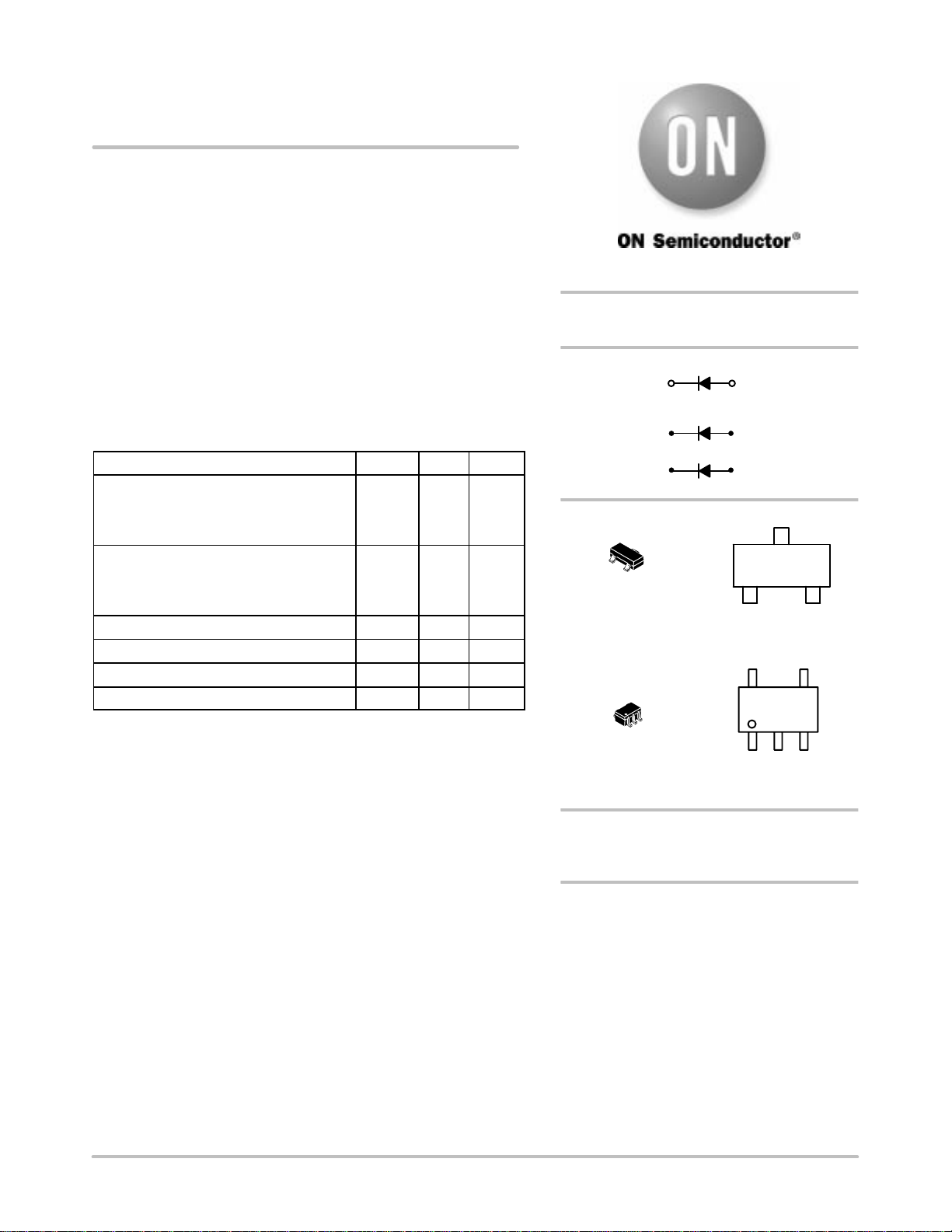

Semiconductor Components Industries, LLC, 2005
April, 2005 − Rev. 7
1 Publication Order Number:
BAS19LT1/D
BAS19LT1, BAS20LT1,
BAS21LT1, BAS21DW5T1
Preferred Devices
High Voltage
Switching Diode
Device Marking:
• BAS19LT1 = JP
• BAS20LT1 = JR
• BAS21LT1 = JS
• BAS21DW5T1 = JS
Features
• Pb−Free Packages are Available
MAXIMUM RATINGS
Rating Symbol Value Unit
Continuous Reverse Voltage
BAS19
BAS20
BAS21
V
R
120
200
250
Vdc
Repetitive Peak Reverse Voltage
BAS19
BAS20
BAS21
V
RRM
120
200
250
Vdc
Continuous Forward Current I
F
200 mAdc
Peak Forward Surge Current I
FM(surge)
625 mAdc
Maximum Junction Temperature T
Jmax
150 °C
Power Dissipation (Note 4) P
D
385 mW
Maximum ratings are those values beyond which device damage can occur.
Maximum ratings applied to the device are individual stress limit values (not
normal operating conditions) and are not valid simultaneously. If these limits are
exceeded, device functional operation is not implied, damage may occur and
reliability may be affected.
1. Mounted on FR−5 Board = 1.0 x 0.75 x 0.062 in.
HIGH VOLTAGE
SWITCHING DIODE
Preferred devices are recommended choices for future use
and best overall value.
5
CATHODE
1
ANODE
Jx M
MARKING DIAGRAMS
Jx = Specific Device Code
x = P, R or S
M = Date Code
http://onsemi.com
3
CATHODE
1
ANODE
4
CATHODE
3
ANODE
XX
d
XX= Specific Device Code
d
= Date Code
SOT−23 (TO−236)
CASE 318
STYLE 8
SC−88A (SOT−353)
CASE 419A
SOT−23
SC−88A
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 4 of this data sheet.
