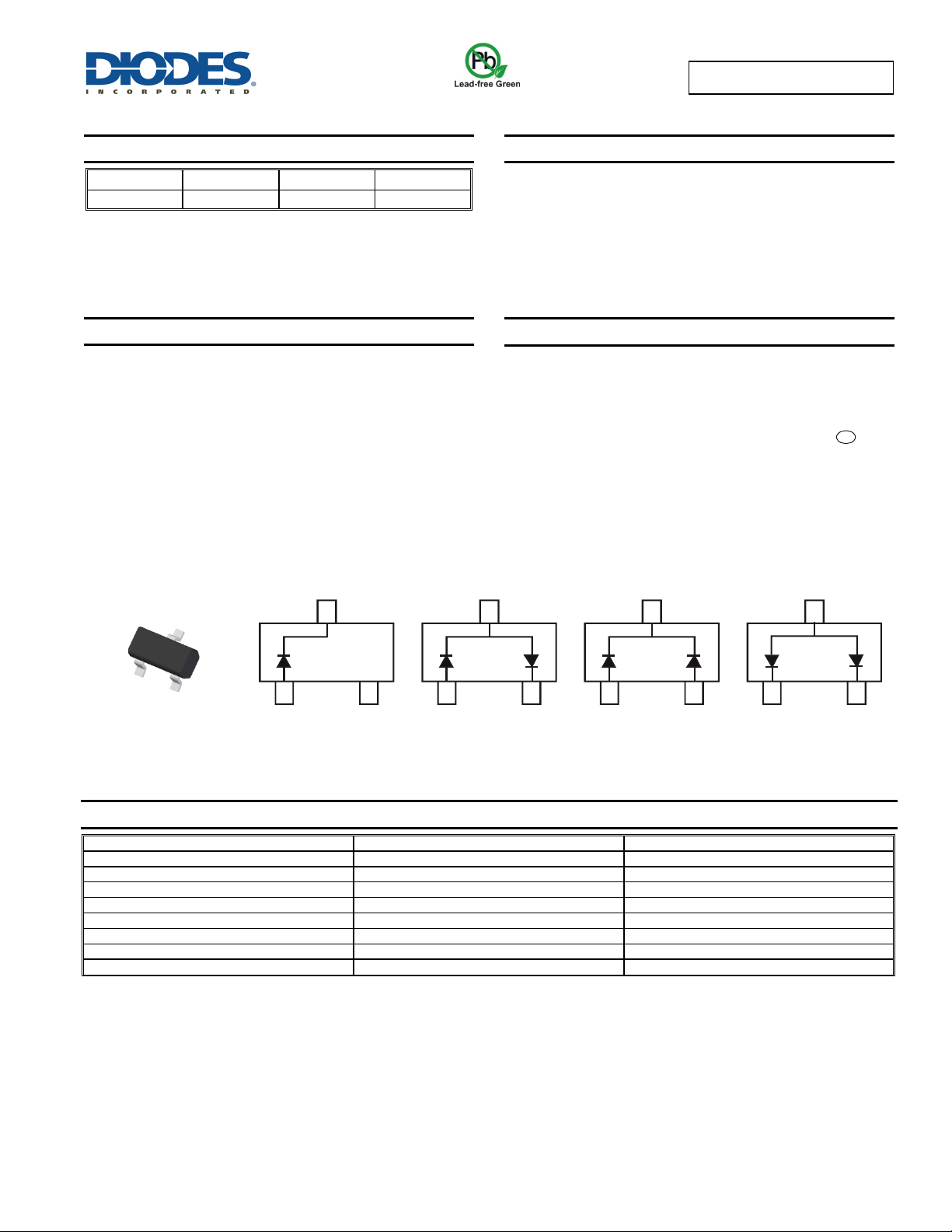

BAS40/ -04/ -05/ -06
Document number: DS11006 Rev. 25 - 2
1 of 5
www.diodes.com
December 2013
© Diodes Incorporated
BAS40/ -04/ -05/ -06
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Product Summary @T
A
= +25°C
V
RRM
(V) I
O
(mA) V
Fmax
(V) I
Rmax
(μA)
40 200 1.0 0.2
Description
200mA surface mount Schottky Barrier Diode in SOT23 package,
offers low forward voltage drop and fast switching capability, designed
with PN Junction Guard Ring for Transient and ESD Protection, totally
lead-free finish and RoHS compliant, ”Green” device.
Features and Benefits
Low Forward Voltage Drop
Fast Switching
PN Junction Guard Ring for Transient and ESD Protection
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: SOT23
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
Polarity: See Diagrams Below
Weight: 0.008 grams (approximate)
Top View BAS40 BAS40-04 BAS40-05 BAS40-06
Ordering Information (Note 4 & 5)
Part Number Case Packaging
BAS40-7-F / BAS40Q-7-F SOT23 3000/Tape & Reel
BAS40-04-7-F / BAS40-04Q-7-F SOT23 3000/Tape & Reel
BAS40-05-7-F / BAS40-05Q-7-F SOT23 3000/Tape & Reel
BAS40-06-7-F / BAS40-06Q-7-F SOT23 3000/Tape & Reel
BAS40-13-F / BAS40Q-13-F SOT23 10000/Tape & Reel
BAS40-04-13-F / BAS40-04Q-13-F SOT23 10000/Tape & Reel
BAS40-05-13-F / BAS40-05Q-13-F SOT23 10000/Tape & Reel
BAS40-06-13-F / BAS40-06Q-13-F SOT23 10000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
5. Products manufactured with Date Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Products manufactured prior to Date
Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb
2
O
3
Fire Retardants.
e3
