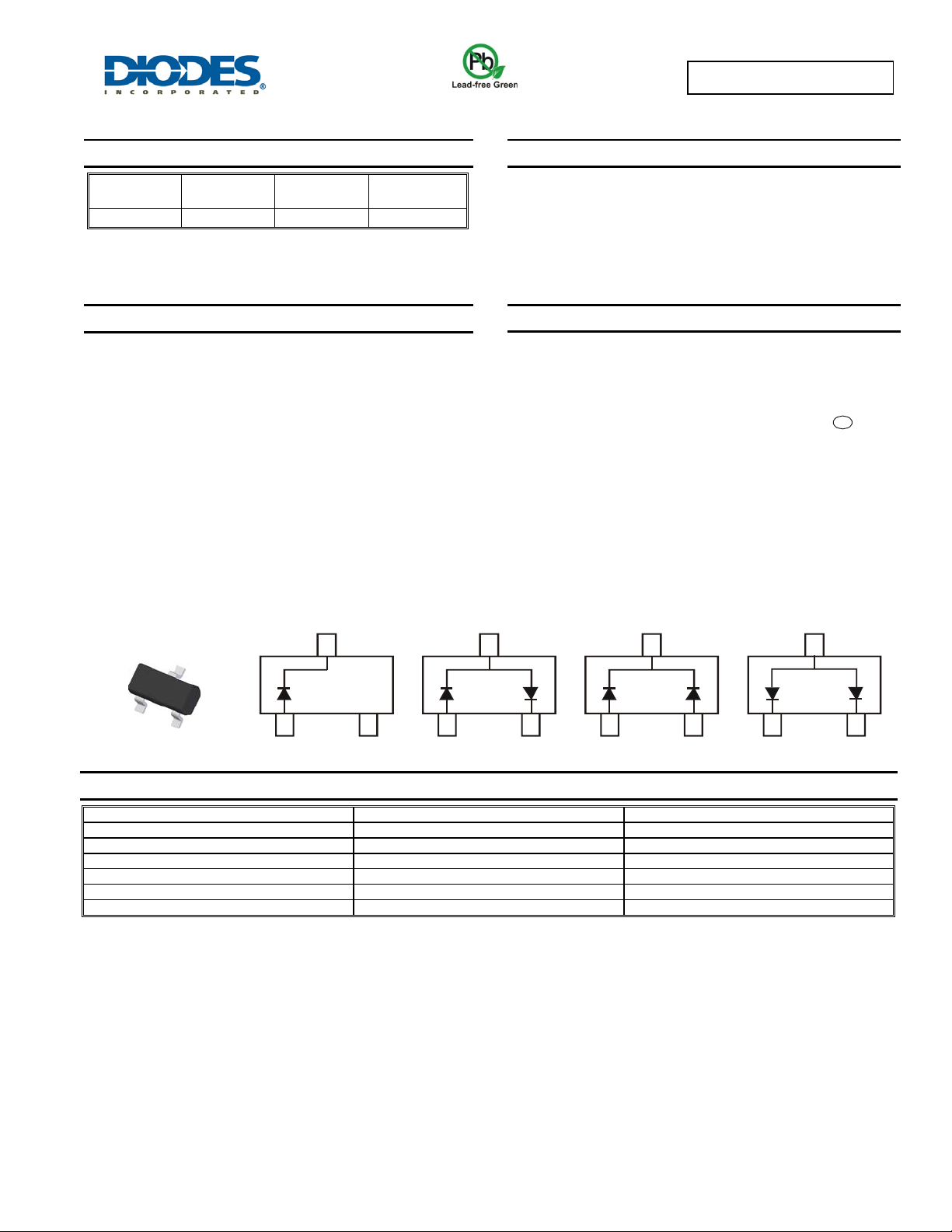

BAS70/ -04/ -05/ -06
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Product Summary
V
R
(V) I
F
(mA)
V
F MAX
(V)
@ +25°C
I
R MAX
(uA)
@ +25°C
70
1.0
0.41
0.1
Description
70mA surface mount Schottky Barrier Diode in SOT23 package,
offers low forward voltage drop and fast switching capability,
designed with PN Junction Guard Ring for Transient and ESD
Protection.
Features and Benefits
• Low Turn-On Voltage
• Fast Switching
• PN Junction Guard Ring for Transient and ESD Protection
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: SOT23
• Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Solderable per MIL-STD-202, Method 208
• Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe)
• Polarity: See Diagrams Below
• Weight: 0.008 grams (approximate)
Top View
BAS70
BAS70-04
BAS70-05
BAS70-06
Ordering Information (Note 4 & 5)
Part Number
Case
Packaging
BAS70-7-F
SOT23
3000/Tape & Reel
BAS70-04-7-F
SOT23
3000/Tape & Reel
BAS70-04Q-7-F
SOT23
3000/Tape & Reel
BAS70-04Q-13-F
SOT23
10000/Tape & Reel
BAS70-05-7-F
SOT23
3000/Tape & Reel
BAS70-06-7-F
SOT23
3000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
5. Product manufactured with Data Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date Code
V9 are built with Non-Green Molding Compound and may contain Halogens or Sb
2
O
3
Fire Retardants.
e3
BAS70/ -04/ -05/ -06
Document number: DS11007 Rev. 24 - 2
1 of 5
www.diodes.com
August 2014
© Diodes Incorporated
