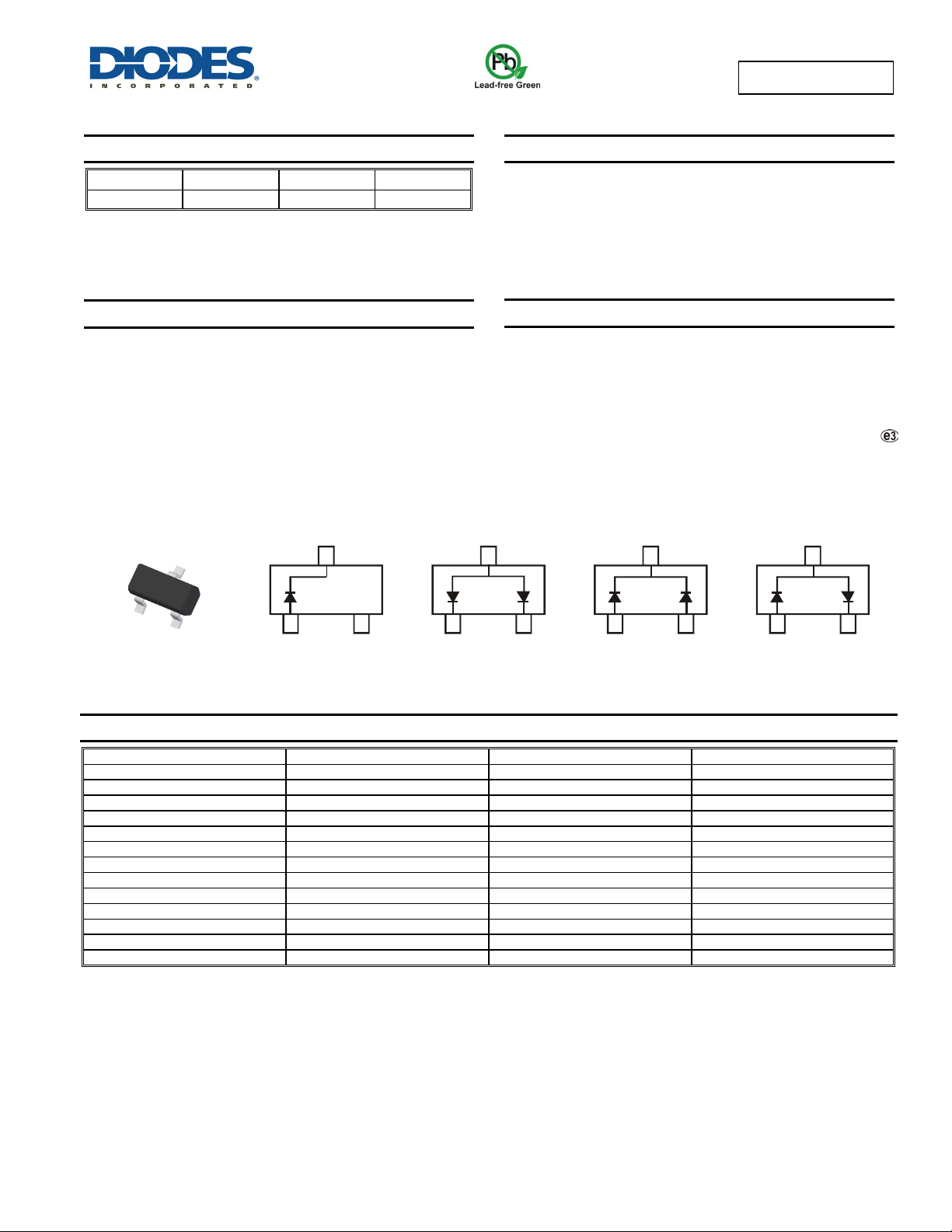

BAT54 /A /C /S

Document number: DS11005 Rev. 31 - 2

1 of 5

www.diodes.com

October 2013

BAT54 /A /C /S

SURFACE MOUNT SCHOTTKY BARRIER DIODE

Product Summary @T

= +25°C

RRM

(V) I

(mA) V

Fmax

(V) I

Rmax

(μA)

30 200 0.8 2

Description

200mA surface mount Schottky Barrier Diode in SOT23 package,

offers low turn-on voltage and fast switching capability, designed with

PN Junction Guard Ring for Transient and ESD Protection, totally

lead-free finish and RoHS compliant, ”Green” device.

Features and Benefits

 Low Turn-on Voltage

 Fast Switching

 PN Junction Guard Ring for Transient and ESD Protection

 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

 Halogen and Antimony Free. “Green” Device (Note 3)

 Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

 Case: SOT23

 Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

 Moisture Sensitivity: Level 1 per J-STD-020

 Terminals: Matte Tin Finish annealed over Alloy 42 leadframe

(Lead Free Plating). Solderable per MIL-STD-202, Method 208

 Polarity: See Diagrams Below

 Weight: 0.008 grams (approximate)

Top View BAT54 BAT54A BAT54C BAT54S

Ordering Information (Note 4)

Part Number Compliance Case Packaging

BAT54-7-F Standard SOT23 3000/Tape & Reel

BAT54A-7-F Standard SOT23 3000/Tape & Reel

BAT54C-7-F Standard SOT23 3000/Tape & Reel

BAT54S-7-F Standard SOT23 3000/Tape & Reel

BAT54Q-7-F Automotive SOT23 3000/Tape & Reel

BAT54AQ-7-F Automotive SOT23 3000/Tape & Reel

BAT54CQ-7-F Automotive SOT23 3000/Tape & Reel

BAT54SQ-7-F Automotive SOT23 3000/Tape & Reel

BAT54-13-F Standard SOT23 10,000/Tape & Reel

BAT54A-13-F Standard SOT23 10,000/Tape & Reel

BAT54Q-13 Automotive SOT23 10,000/Tape & Reel

BAT54AQ-13 Automotive SOT23 10,000/Tape & Reel

BAT54SQ-13 Automotive SOT23 10,000/Tape & Reel

Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
