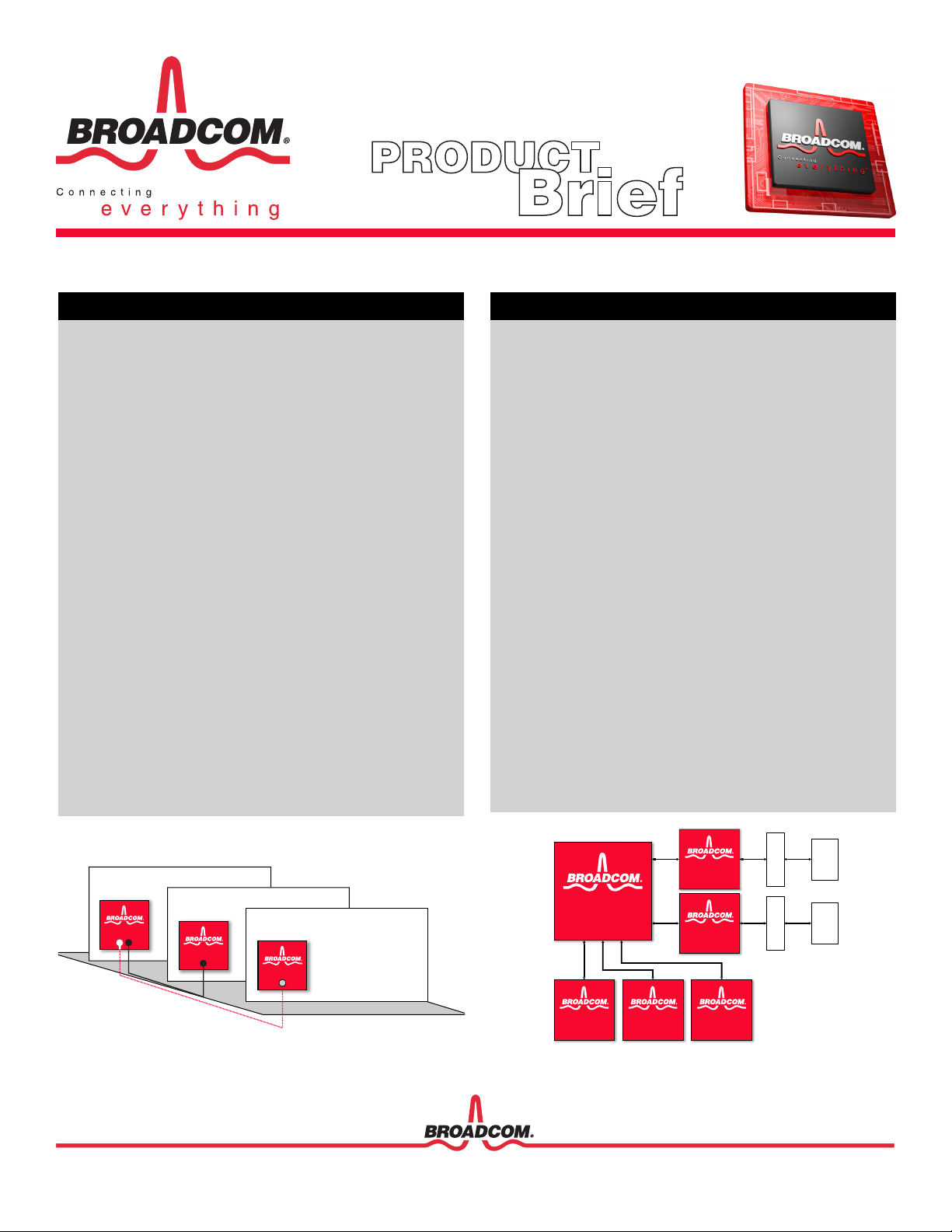

BCM5461
®
10/100/1000BASE-T GIGABIT COPPER TRANSCEIVER
•
Fully-integrated 10BASE-T/100BASE-TX/1000BASE-T Gigabit
Ethernet transceiver
•
GMII, RGMII, RTBI, and MII MAC Interface options
•
On-chip low-voltage regulators
•
Fully compliant with IEEE 802.3, 802.3u, and 802.3ab standards
•
0.13µ CMOS—low power and cost
•
Low power
- Less than 700 mW per port
- Wake on LAN support
- Advanced power management
•
Trace matched output impedance
•
Line-side loopback
•
Low EMI emissions
•
Cable-plant diagnostic
- Cable-plant analyzer function detects cable plant impairments
- Link quality indication LED
- Automatic detection and correction of wiring pair swaps, pair skew,
and pair polarity
- Automatic MDI/MDIX crossover at all speeds
•
Robust CESD tolerance
•
Support for jumbo packets up to 9 KB
•
IEEE 1149.1 (JTAG) boundary scan
•
128-pin MQFP, 117-pin BGA, and 100-pin FBGA packages
•
Simplifies system and board design.
- Reduced I/O pin requirements with RGMII (over 50%).
- Clock timing can be adjusted to eliminate board trace delays
required by the RGMII specification.
•
Provides interoperability with IEEE standard devices operating at 10,
100, and 1000 Mbps at half- and full-duplex.
•
Lowers system BOM cost and simplifies system design.
•
Requires no airflow or heatsink.
•
Provides compliance with PCI 2.2 and PC99/PC2000.
•
Eases system level debug.
•
Reduces system design constraints to meet EMI emissions standards.
•
Cable diagnostic function characterizes cable plant condition and
immediately indicates cabling issues.
- Prevents erroneous equipment return due to bad cable plants.
- Prevents manufacturing fall-out due to bad cable plants.
•
High CESD tolerance prevents equipment damage and return.
•
Operates with larger packets for wider range of packet protocol
support and improved efficiency.
•
Ease of manufacturing with JTAG support, simplified power supply,
and multiple MAC interfaces.
FEATURES
SUMMARY OF BENEFITS
1000BASE-T Gigabit Uplink
Transformer
RJ-45
Transformer
RJ-45
BCM5461
BCM5461
BCM5645
24FE+2G
Switch
BCM5248
Octal
10/100 Mbps PHY
BCM5248
Octal
10/100 Mbps PHY
BCM5248
Octal
10/100 Mbps PHY
Gigabit Backplane Communication
Main Control Board
BCM5464
Peripheral Board #1
BCM5461
Peripheral Board #2
BCM5461
