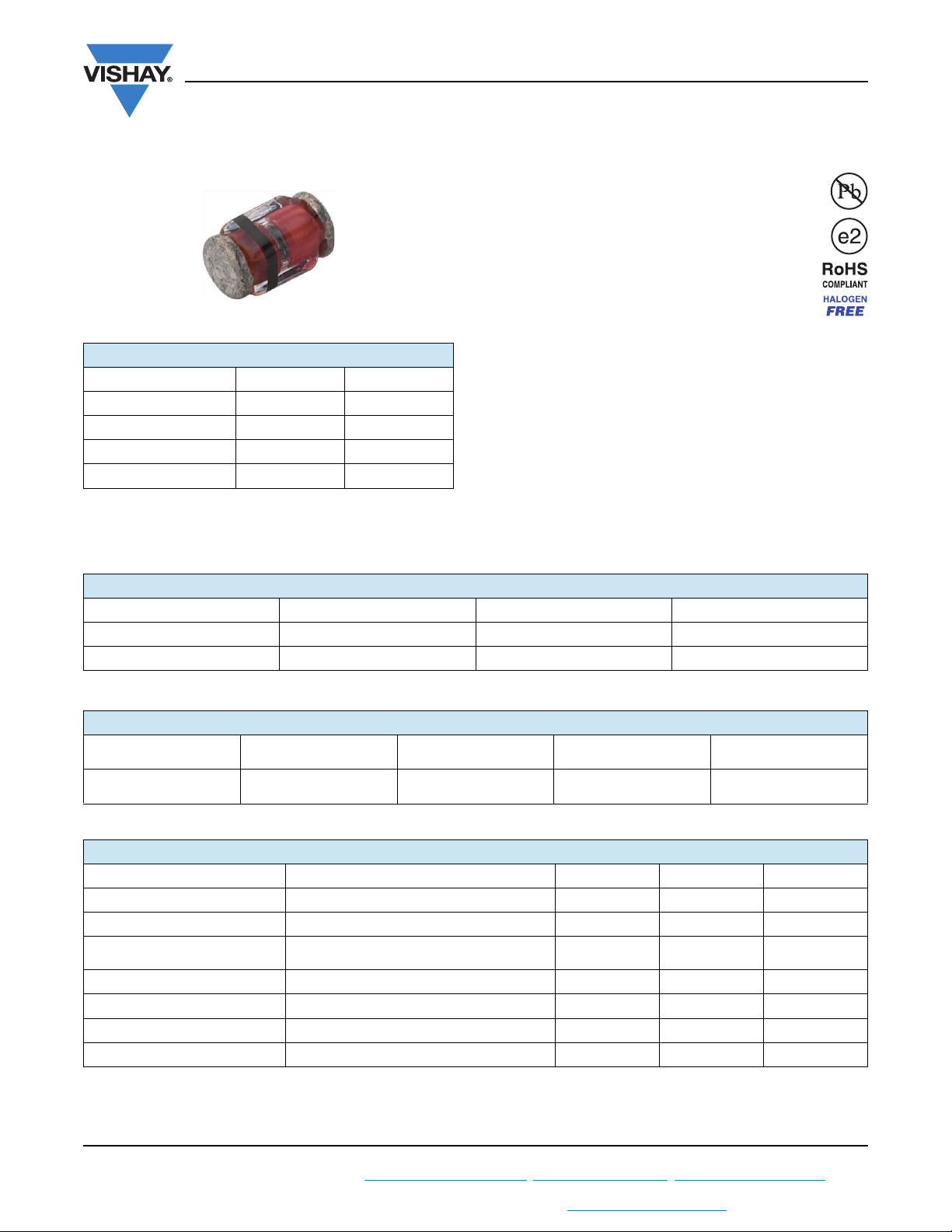

Small Signal Zener Diodes
FEATURES
Saving space
Hermetic sealed parts
Electrical data identical with the devices
BZT55..series, TZM..series
Fits onto SOD-323
Very sharp reverse characteristic
Low reverse current level
Very high stability
•Low noise
AEC-Q101 qualified
Compliant to RoHS Directive 2002/95/EC and in
accordance to WEEE 2002/96/EC
Halogen-free according to IEC 61249-2-21 definition
APPLICATIONS
Voltage stabilization
PRIMARY CHARACTERISTICS
PARAMETER VALUE UNIT
V
Z
range nom. 2.4 to 75 V
Test current I
ZT
2.5; 5 mA
V
Z
specification Pulse current
Int. construction Single
ORDERING INFORMATION
DEVICE NAME ORDERING CODE TAPED UNITS PER REEL MINIMUM ORDER QUANTITY
BZM55-series BZM55-series-TR3 10 000 (8 mm tape on 13" reel) 10 000
BZM55-series BZM55-series-TR 2500 (8 mm tape on 7" reel) 12 500
PACKAGE
PACKAGE NAME WEIGHT
MOLDING COMPOUND
FLAMMABILITY RATING
MOISTURE SENSITIVITY
LEVEL
SOLDERING
CONDITIONS
MicroMELF 12 mg UL 94 V-0
MSL level 1
(according J-STD-020)
260 °C/10 s at terminals
ABSOLUTE MAXIMUM RATINGS (T
amb
= 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL VALUE UNIT
Power dissipation R
thJA
300 K/W P
tot
500 mW
Junction to ambient air Mounted on epoxy-glass hard tissue, fig. 1 R
thJA
500 K/W
Junction tie point
35 μm copper clad, 0.9 mm
2
copper area per
electrode
R
thJL
300 K/W
Junction temperature
T
j
175 °C
Storage temperature range
T
stg
- 65 to + 175 °C
Zener current I
Z
P
tot
/V
Z
mA
Forward voltage I
F
= 200 mA
V
F
1.5 V
