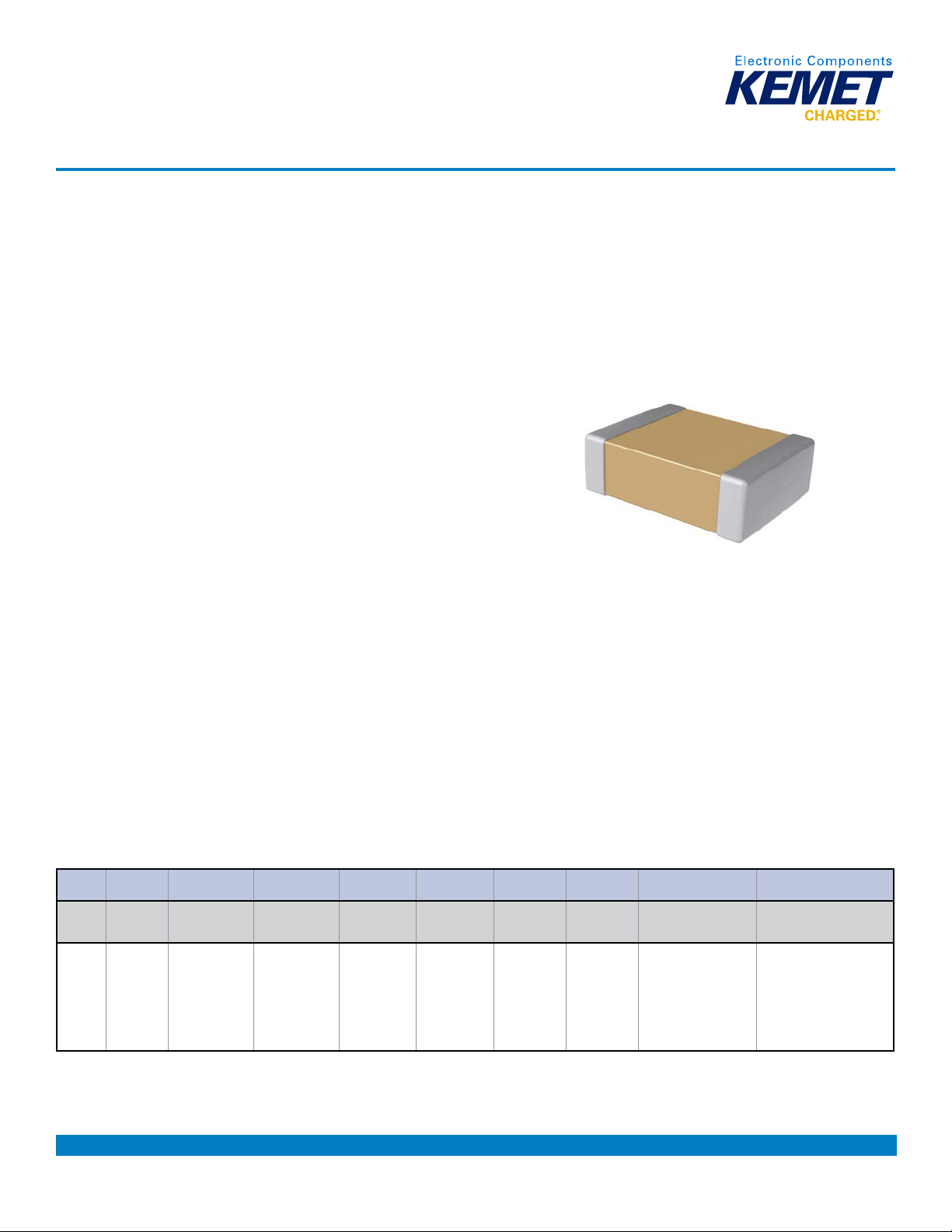

© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1007_X8R_ULTRA_150C_SMD • 3/3/2016 1
One world. One KEMET
Overview
KEMET’s Ultra-Stable X8R dielectric features a 150°C maxi-
mum operating temperature, offering the latest in high tempera-
ture dielectric technology and reliability for extreme tempera-
ture applications. It offers the same temperature capability
as conventional X8R, but without the capacitance loss due
to applied DC voltage. Ultra-Stable X8R exhibits no change
in capacitance with respect to voltage and boasts a minimal
change in capacitance with reference to ambient temperature.
It is a suitable replacement for higher capacitance and larger
footprint devices that fail to offer capacitance stability. Capaci-
tance change with respect to temperature is limited to ±15%
from −55°C to +150°C.
Driven by the demand for a more robust and reliable compo-
nent, Ultra-Stable X8R dielectric capacitors were developed for
critical applications where reliability and capacitance stability at
higher operating temperatures are a concern. These capacitors
are widely used in automotive circuits as well as general high
temperature applications.
In addition to commercial grade, automotive grade devices
are available and meet the demanding Automotive Electronics
Council’s AEC–Q200 qualication requirements.
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
High Temperature 150°C, Ultra-Stable X8R Dielectric,
25 – 100 VDC (Commercial & Automotive Grade)
Ordering Information
C
1210 C 184
K
3 H
A
C AUTO
Ceramic
Case Size
(L" x W")
Specication/
Series
1
Capacitance
Code (pF)
Capacitance
Tolerance
Rated Voltage
(VDC)
Dielectric
Failure Rate/
Design
Termination Finish
2
Packaging/Grade
(C-Spec)
0402
0603
0805
1206
1210
1812
C = Standard
Two signicant
digits + number
of zeros
F = ±1%
G = ±2%
J = ±5%
K = ±10%
M = ±20%
3 = 25
5 = 50
1 = 100
H = Ultra
Stable X8R
A = N/A C = 100% Matte Sn
L = SnPb (5% Pb
minimum)
See “Packaging C-Spec
Ordering Options Table”
below
1
Flexible termination option is available. Please see FT-CAP product bulletin C1013_X8R_FT-CAP_SMD
2
Additional termination nish options may be available. Contact KEMET for details.
2
SnPb termination nish option is not available on automotive grade product.
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
